Amlogic S922X Android Dvelopment Board
Amlogic S922X Android Dvelopment Board
Couldn't load pickup availability
Amlogic S922X Dvelopment Board
|
Specifications |
|
|
Model No. |
Amlogic S922X Android Dvelopment Board |
|
CPU |
Amlogic S922X Quad Core ARM Cortex A73 and Dual Core ARM Cortex A53 1.98Ghz |
|
GPU |
ARM Mali-G52 MP4 (6EE) OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0 |
|
RAM |
DDR4 2GB/4GB |
|
ROM |
16GB eMMC (Expandable up to 128GB) |
|
OS |
Android 9.0 |
|
Video&Audio CODEC |
|
|
Decoding resolution |
Support 4K H265 10Bit, H.264, AVS, MPEG-2 and many other formats |
|
Multimedia Support |
Support MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv and other video formats; |
|
Port |
|
|
Video output |
1 channel LVDS 40-pin 2.0mm double-pin, can support 8bit, 10bit screen; 1 channel HDMI output; 1 channel AV output |
|
Video input |
x1, MIPI CSI |
|
Audio ouput |
4-pin 2.5mm socket 25W@2 amplifier and 3W@2 speaker |
|
Network interface |
x1, 10M/100M Ethernet WIFI+BT, 2.4G single band or 2.4G/5G dual band for options PCIE slot (4G) x1 or M.2 slot (4G) x1 for options |
|
USB2.0 interface |
USB OTG x1 (available for HOST) USB HOST x7 |
|
Backlight interface |
x2, 6-pin 2.0mm socket |
|
Infrared interface |
x1, 7-pin 2.0mm socket, supports both red and green LED indicators |
|
Function expansion port |
Serial ports x4 |
|
TF card slot |
x1 |
|
SIM card slot |
x1 |
|
RTC |
Supports time synchronization |
|
Power |
|
|
Power Supply |
12V, 2.5DC Connector |

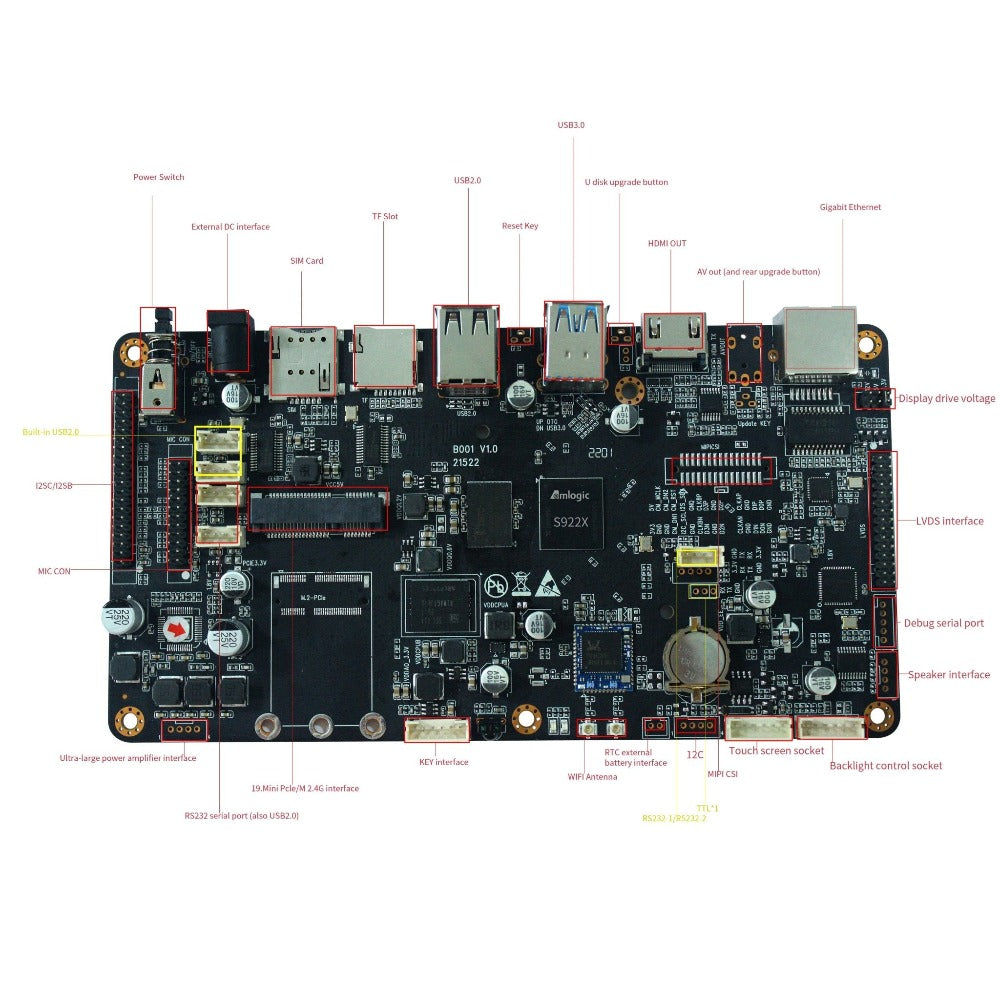

S922X digital signage board specifications:

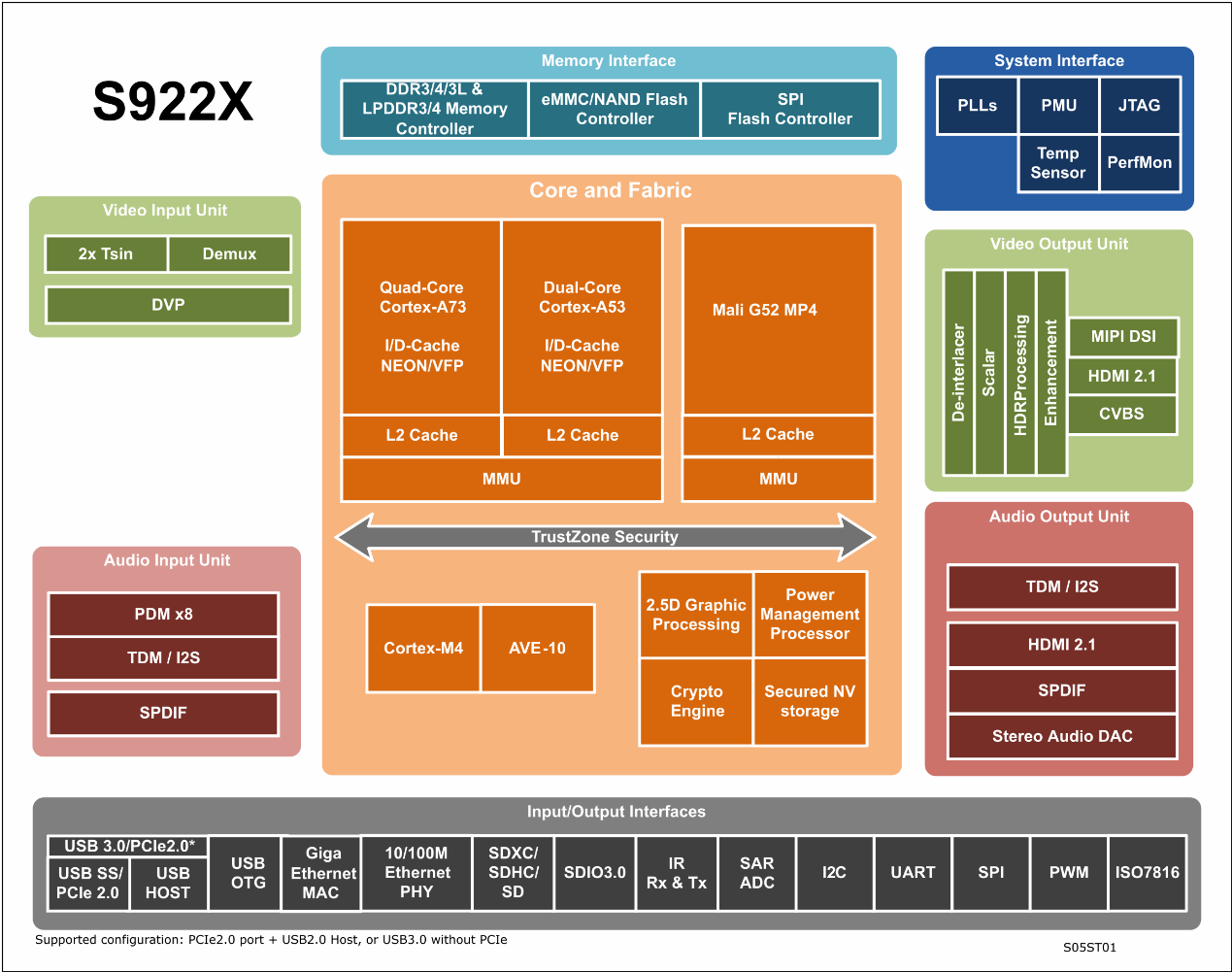

- SoC – Amlogic S922X hexa-core big.LITTLE processor with 4x Arm Cortex A73 cores @ up to 2.0 GHz, 2x Arm Cortex A53 cores, Arm Mali-G52MP6 (6EE) GPU; 12nm manufacturing process
- System Memory – 2GB or 4GB LPDDR4
- Storage – 16GB to 64GB eMMC flash, microSD card slot up to 128 GB; maybe SATA (unsoldered “laptop” SATA interface on the backside of the board)
- Video Output & Display Interface
- HDMI 2.1 up to 4K @ 60 Hz; HDMI CEC, HDCP 2.2, and HDR support
- 1-channel LVDS port + backlight header + touchscreen header
- 1-channel eDP port + backlight header
- V-By-One interface to T112 chip (more at the end of the article)
- Video – AVE-10 engine with 4K UHD H.265/VP9/AVS2 video decoding up to 60 fps, Dolby Vision, Advanced HDR10, HDR10+, HLG, and PRIME HDR high-dynamic range support
- Audio
- 3.5mm audio jack
- Audio input and Audio output headers
- Unpopulated I2S headers
- digital audio via HDMI
- Connectivity
- Gigabit Ethernet
- Dual-band 802.11 b/g/n/ac 2×2 MIMO WiFi 5, Bluetooth 5.0 via Ampak AP6398S module
- Optional 4G LTE via mPCIe socket and microSIM card slot
- USB – 1x USB 3.0 Type-A port, 1x USB 2.0 Type-A port, 1x USB OTG header, 3x USB 2.0 headers
- Serial – 2x RS-232 headers
- Expansion – mPCIe socket (for 3G/4G only?), I2C header, keypad header
- Misc – Power button, power LED, IR receiver
- Power Supply – 12V DC / 3A via power barrel jack or power input header (probably used for powering the board from the display)
- Dimensions – 180mm*95mm*20mm
