X96 TV Box

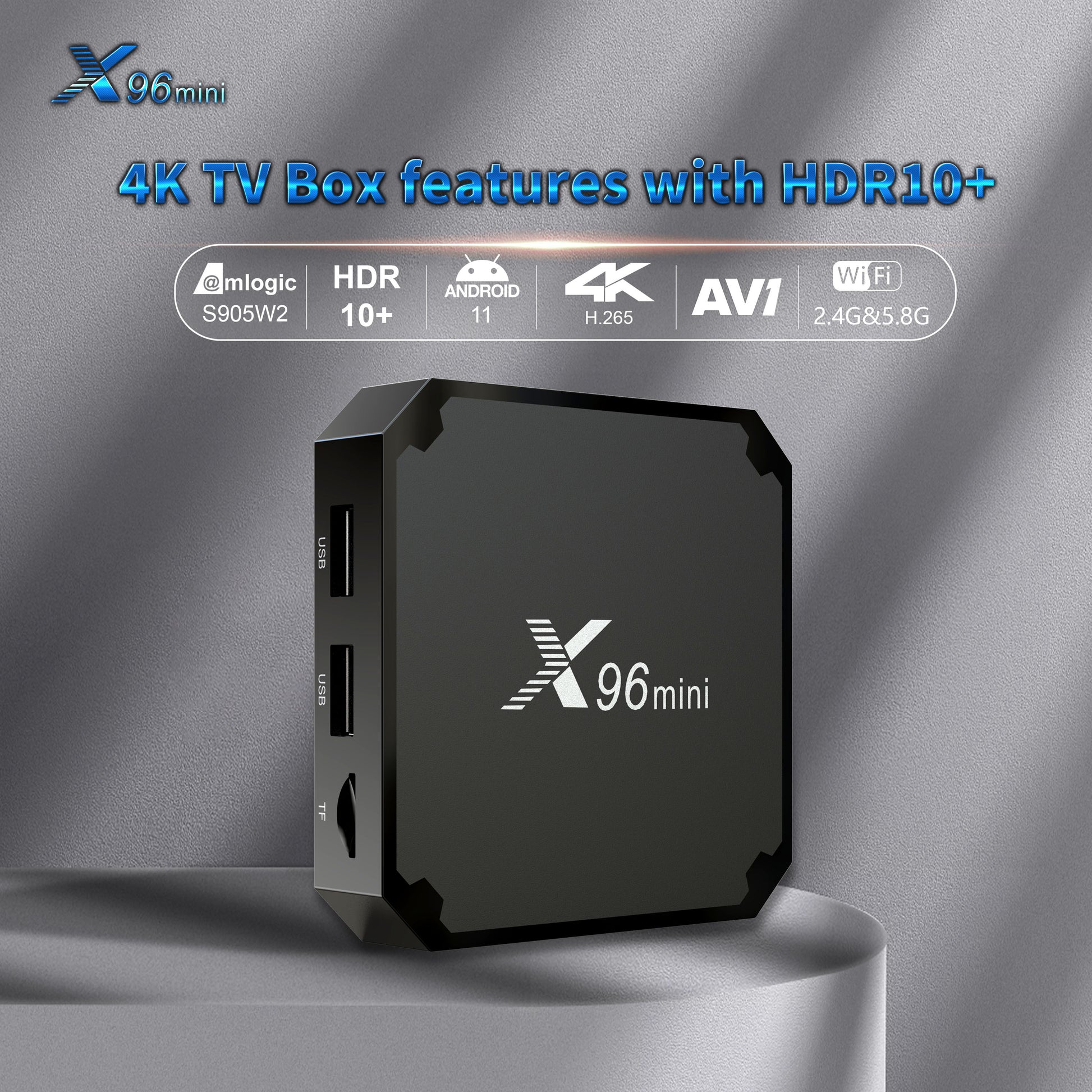

X96mini TV Box Quad Core Amlogic S905W2 Set-top Box

X96mini TV Box Quad Core Amlogic S905W2 Set-top Box

Regular price
Regular price Sale price
Sale Sold out
Shipping calculated at checkout.
RAM+ROM
  • X96mini TV Box is a set-top box powered by Quad Core Amlogic S905W2 processor.
  • It supports HD video playback and 4K resolution output, providing good image and video quality.
  • The set-top box uses Android operating system, provides access to rich applications and games, and has appropriate storage space and memory.
  • It has multiple connection options such as HDMI, USB, Ethernet and Wi-Fi, which is convenient for connecting to external devices and networks.
  • X96mini TV Box is equipped with an easy-to-use user interface and remote control, providing users with a convenient operation experience.

X96mini (S905W2)

CPU Amlogic S905W2 Quad Core ARM Cortex A35
GPU Penta-core Mali-G31 MP2
Memory DDR31GB (Option: 2GB)
Flash eMMC8GB (Option:16GB )
WiFi IEEE 802.11 b/g/n
Moudle Plastic : Black  Color

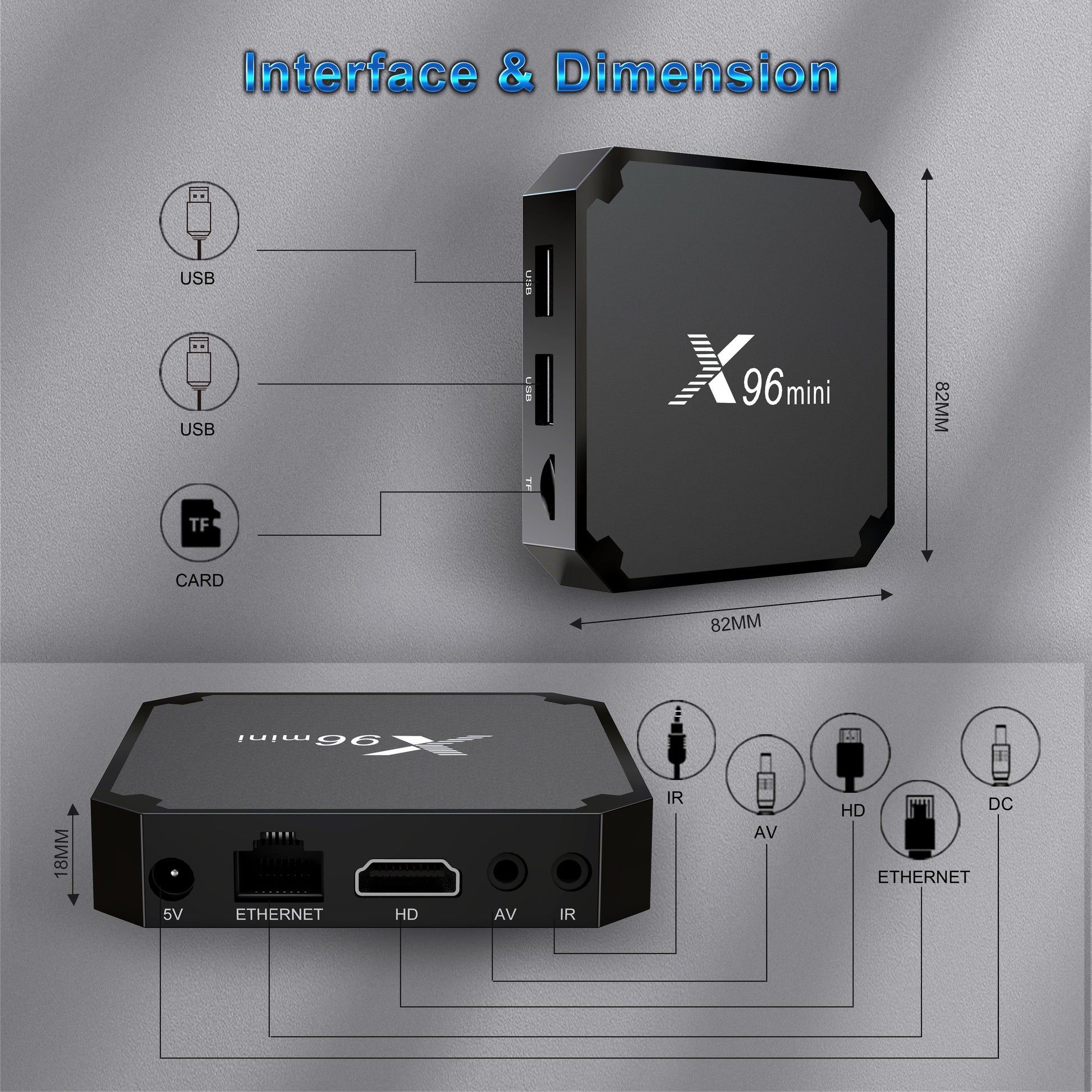

I/O 1*HDMI 4K*2K UHD Output, HDMI 2.0A
1*AV OUT 480i/576i standard definition output
2*USB 1* USB Host Port ,1*USB Device
1*IR Reciver Remote Reciver Connect
1*RJ45 Ethernet Interface 100M
1*TF CARD Support 4GB/8GB/16GB/32GB/64GB
Power DC 5V/2ALED indicatorWorking Blue; StandbyRed
Software
OS Android 11
Video * AMLogic video Engine(AVE)with dedicated hardware decoders and encoders
* Supports multiple "secured"video decoding sessions and simultaneous decoding and encoding
* Video/Picture Decoding
-VP9 Profile-2 up to 4K*2K
-H.265 HEVC MP-10@L5.1 up to 4K*2K@
-H.264 AVC HP@L5.1 up to 4K*2K
-H.264 MVC up to 1080P@60fps
-MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496)
-WMV/VC-1 SP/MP/AP up to 1080P@60fps
-AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps
-MPEG2 MP/HL up to 1080P@60fps
-MPEG1 MP/HL up to 1080P@60fps
-RealVideo 8/9/10 up to 1080P@60fps
* Low latency 1080P H.264 60fps encoder
* HDR10 and HLG HDR Video Processing
* Supports *.mkv,*.mpg,*.wmv,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats
* Video/Picture Encoding
-Independent JPEG and H.264 encoder with configurable performance/bit-rate
-JPEG image encoding
-H.264 video encoding up to 1080P@60fps with low latency
Audio Low power MediaCPU with DSP audio processing
Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing
Built-in stereo audio DAC
Built-in SPDIF/IEC958 and PCM serial digital audio input/output
Supports concurrent dual audio stereo channel output with combination of analog+PCMo or I2S+PCM
Image HD JPEGBMPGIFPNGTIF
Language English French German Spanish Italian etc multilateral languages
Appliactions
Online Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps Apps download freely form android marketamazon app store etc.
Medium Local Media playback,Support HDD, U Disck ,TF Card .
Talk online Support  SKYPE video  call ,MSN , facebook ,twitter ,QQ  etc
Others Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard
Packing Product dimension 82*82*17(mm)
Qty per unit packing 1pc
Unit packing: (LxWxH) 170*110*55(mm)
Unit packing (G.W.) 0.425Kg
Qty per export carton 20PCS
Export carton (WxHxL) 370*290*240 mm
Export carton (G.W.) 7.2Kg

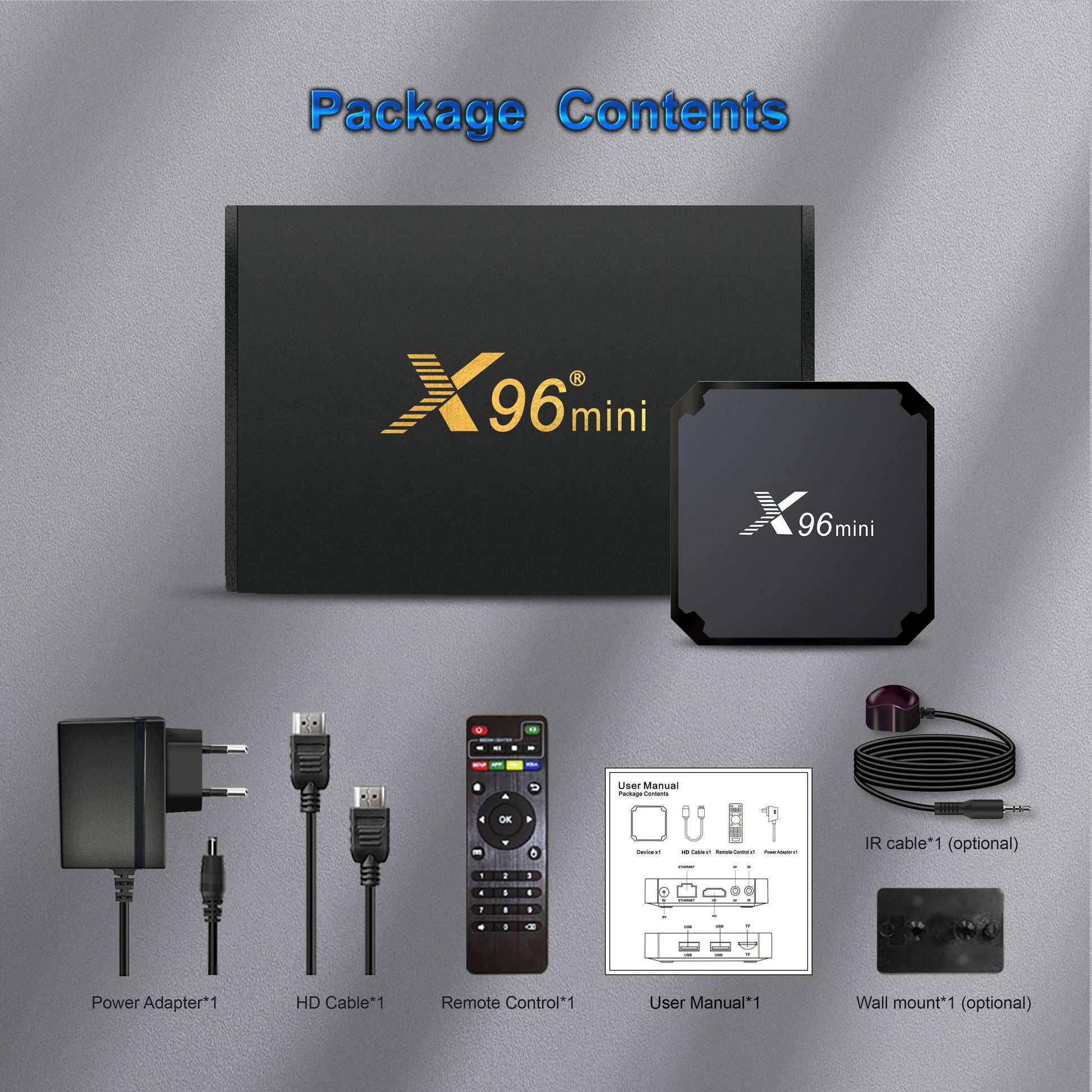

Accessories
1HDMI cable  *1
2IR Remote *1
3User Manual *1
4Package box  *1
5Power adapter  *1
