Amlogic S905X5M Android TV Stick X96 NEO Quad Core ARM Cortex A55 TV Dongle Wholesale
Amlogic S905X5M Android TV Stick X96 NEO Quad Core ARM Cortex A55 TV Dongle Wholesale

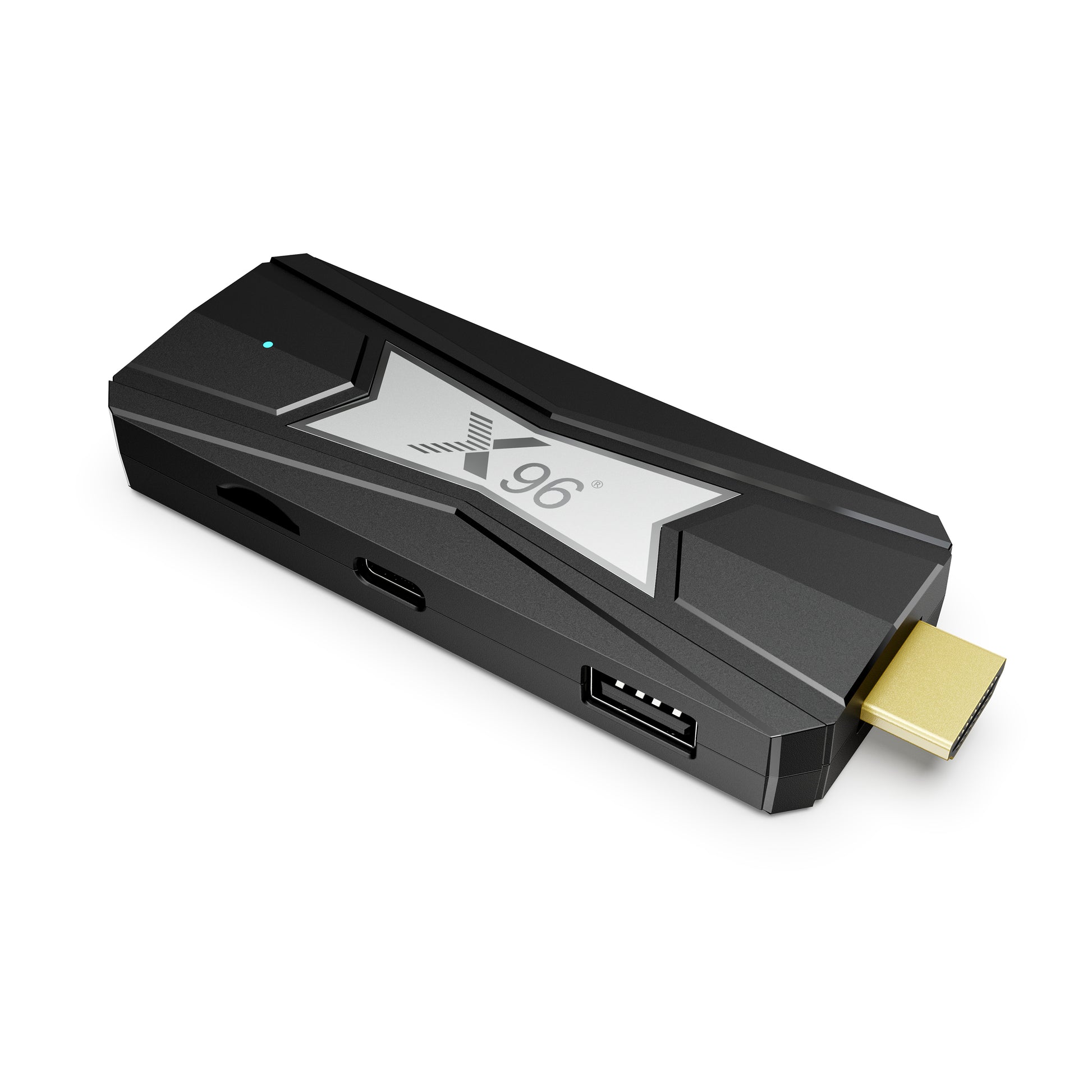

The Amlogic S905X5M TV Stick, named X96 NEO, powered by a quad-core A55 CPU and Android 14, delivers smooth 4K HDR video playback. It offers versatile connectivity with dual-band Wi-Fi, Bluetooth 5.x, and a convenient USB-C port.
- Quad-core A55 CPU & ARM G310 GPU with 2/4GB RAM and 16/32/64GB storage.
- Android 14 OS with modern 4K@60fps video decoding (AV1, VP9, H.265).
- HDR10+/HLG support for enhanced picture quality.
- Dual-band Wi-Fi & Bluetooth 5.x for connectivity.
- 4K@60Hz HDMI output and USB Type-C for power and data.

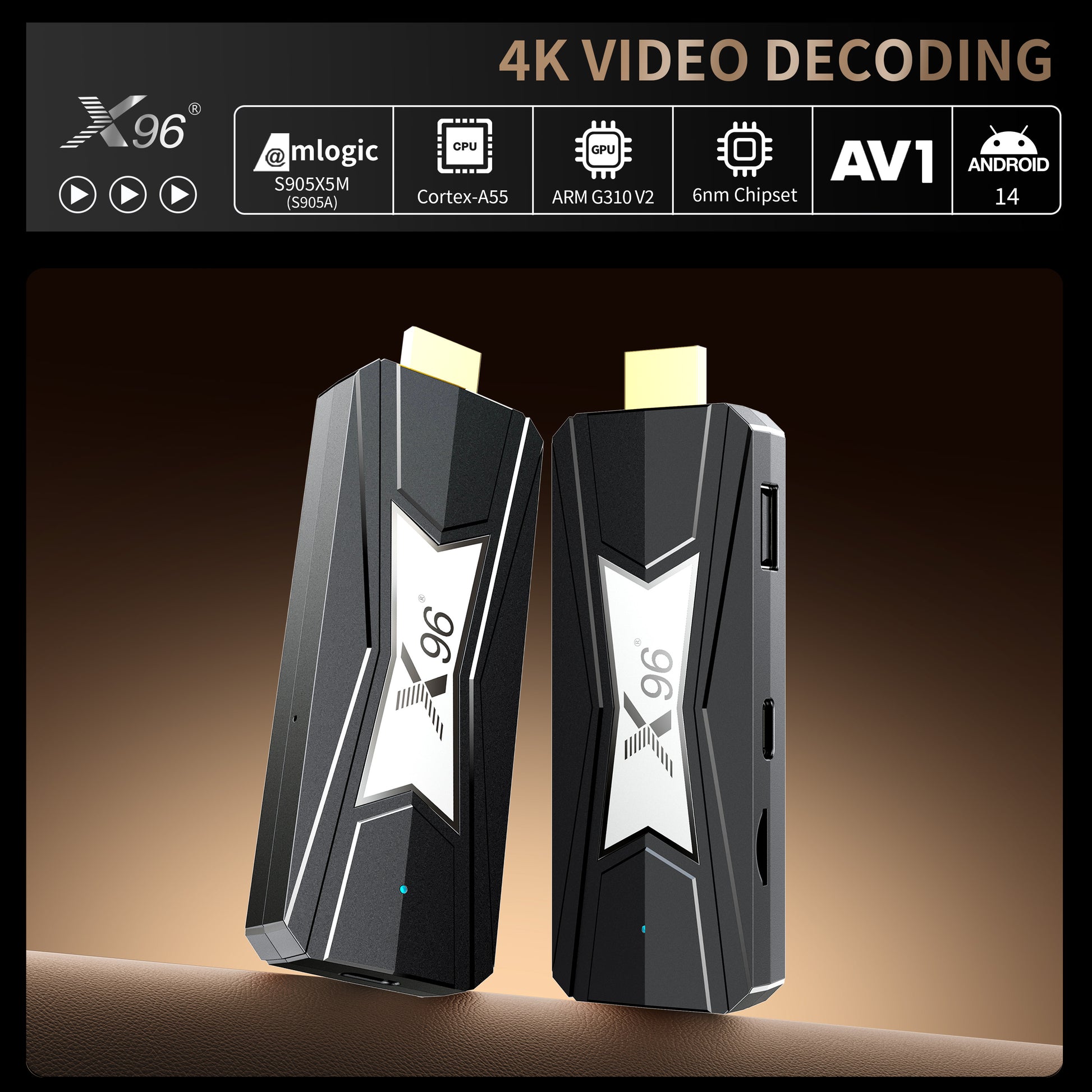

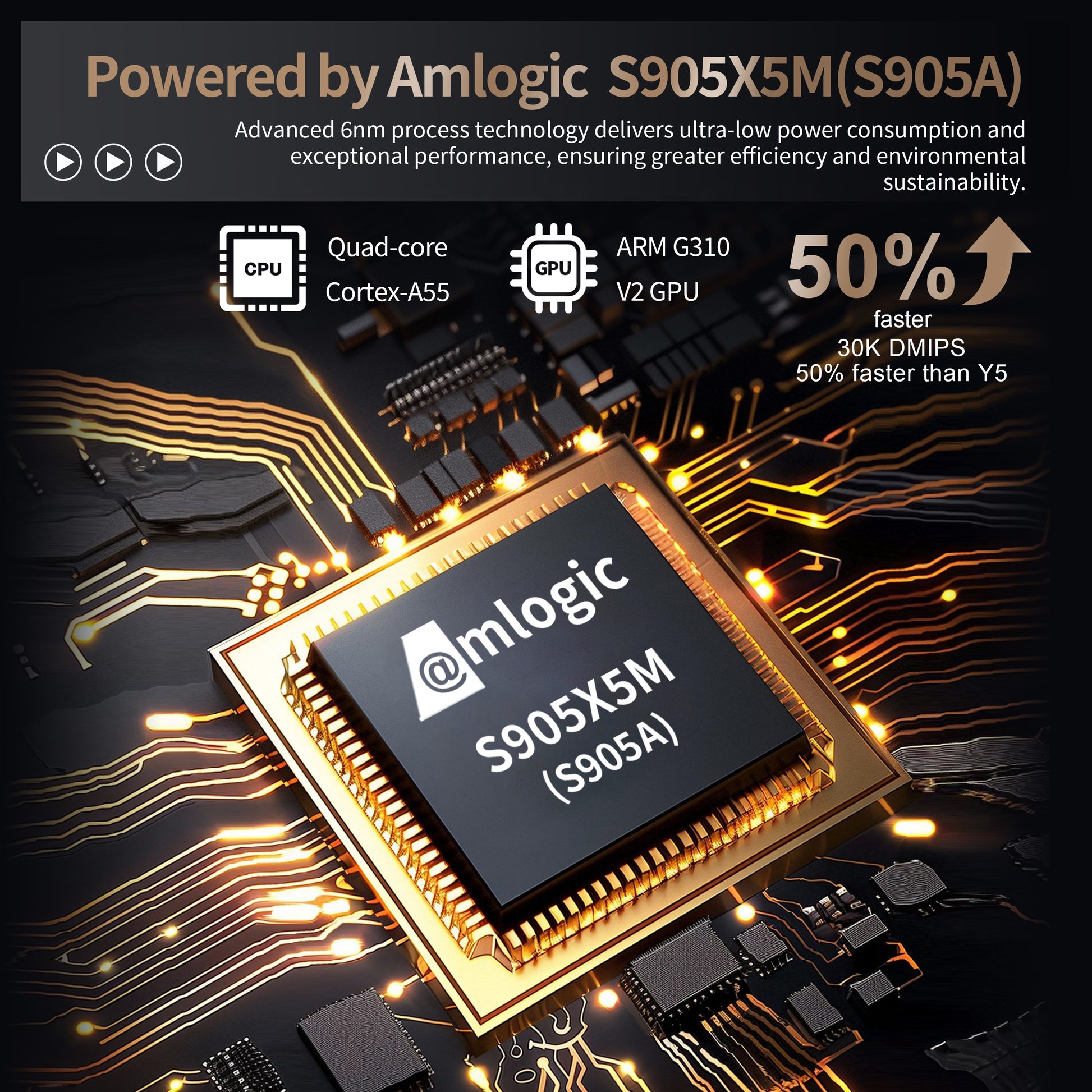

| CPU | Chipset | S905X5M(S905A) | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM G310 V2 | ||
| Architecture | OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | Option：2/4GB | ||
| ROM | Capacity | Option：16/32/64GB | ||
| Software | ||||

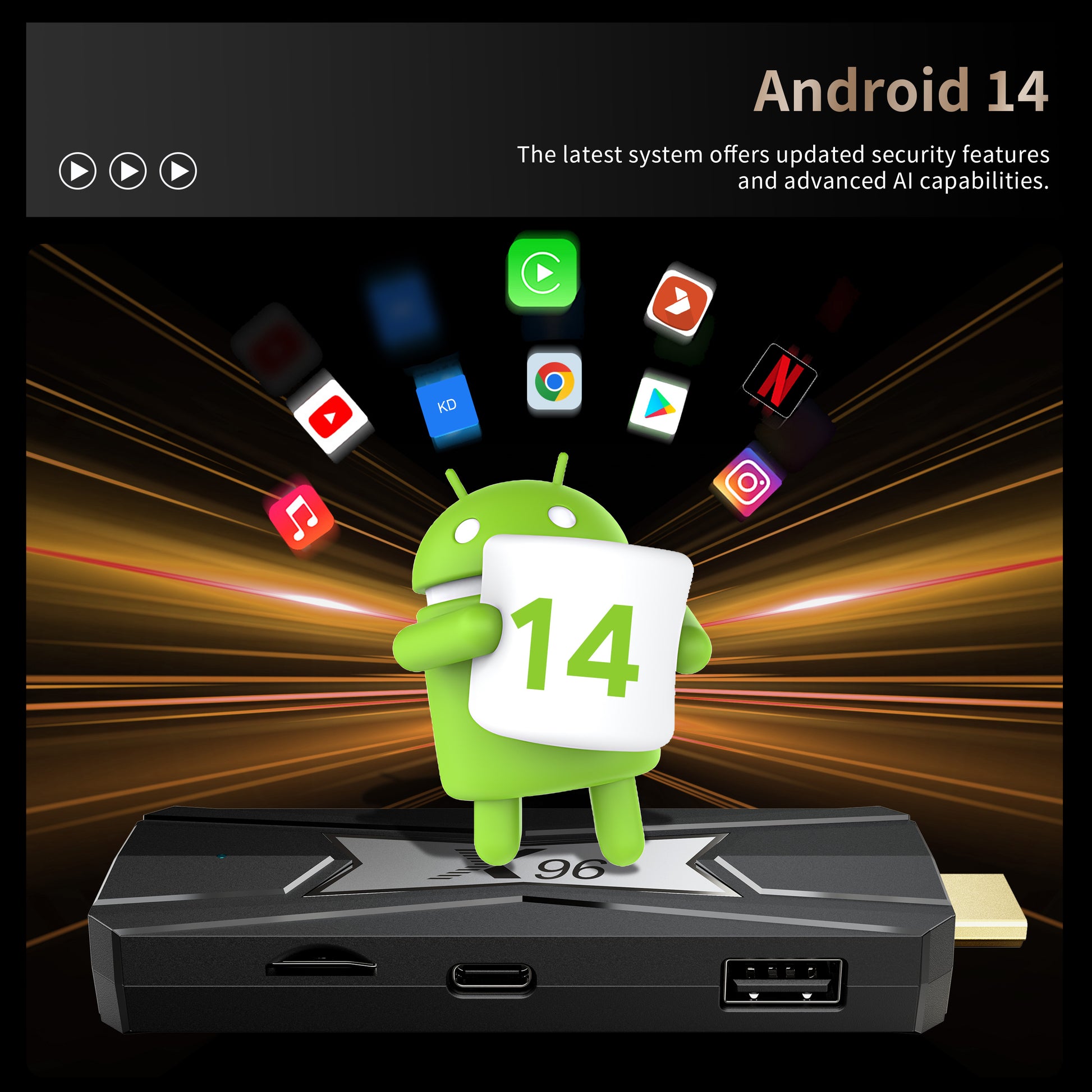

| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Video/Picture Decoding | AV1 MP-10@L5.1 up to 4Kx2K@60fps | |||
| VP9 Profile-2 up to 4Kx2K@60fps | ||||
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | ||||
| H.264 AVC HP@L5.1 up to 4Kx2K@30fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Image Engine | Supports HDR10+, HDR10, HLG HDR processing | |||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||

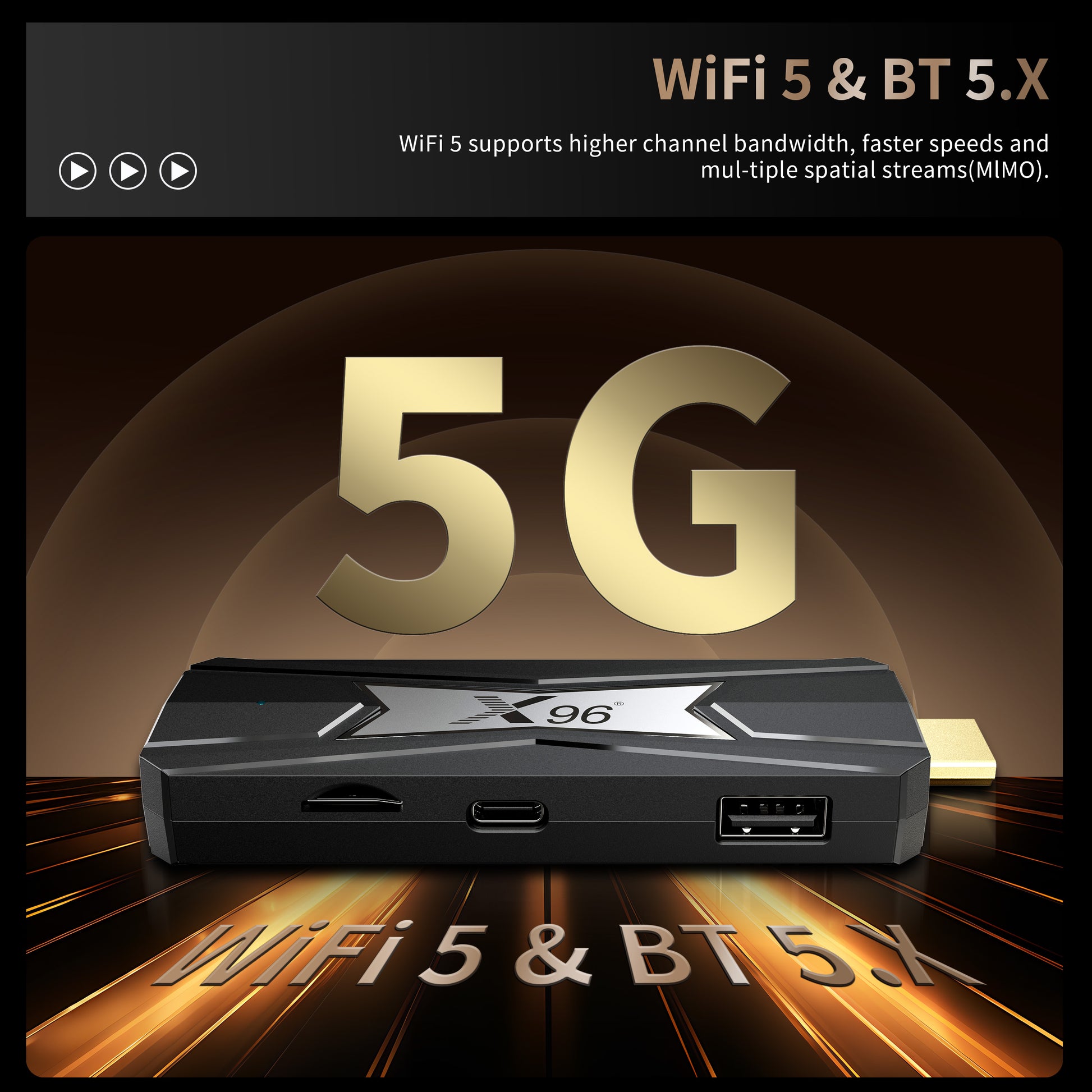

| Wi-Fi | Type | Support IEEE 802.11 b / g / n /ac | ||
| Frequency | Support 2.4G and 5G | |||
| Bluetooth | Bluetooth | Support BT5.X | ||

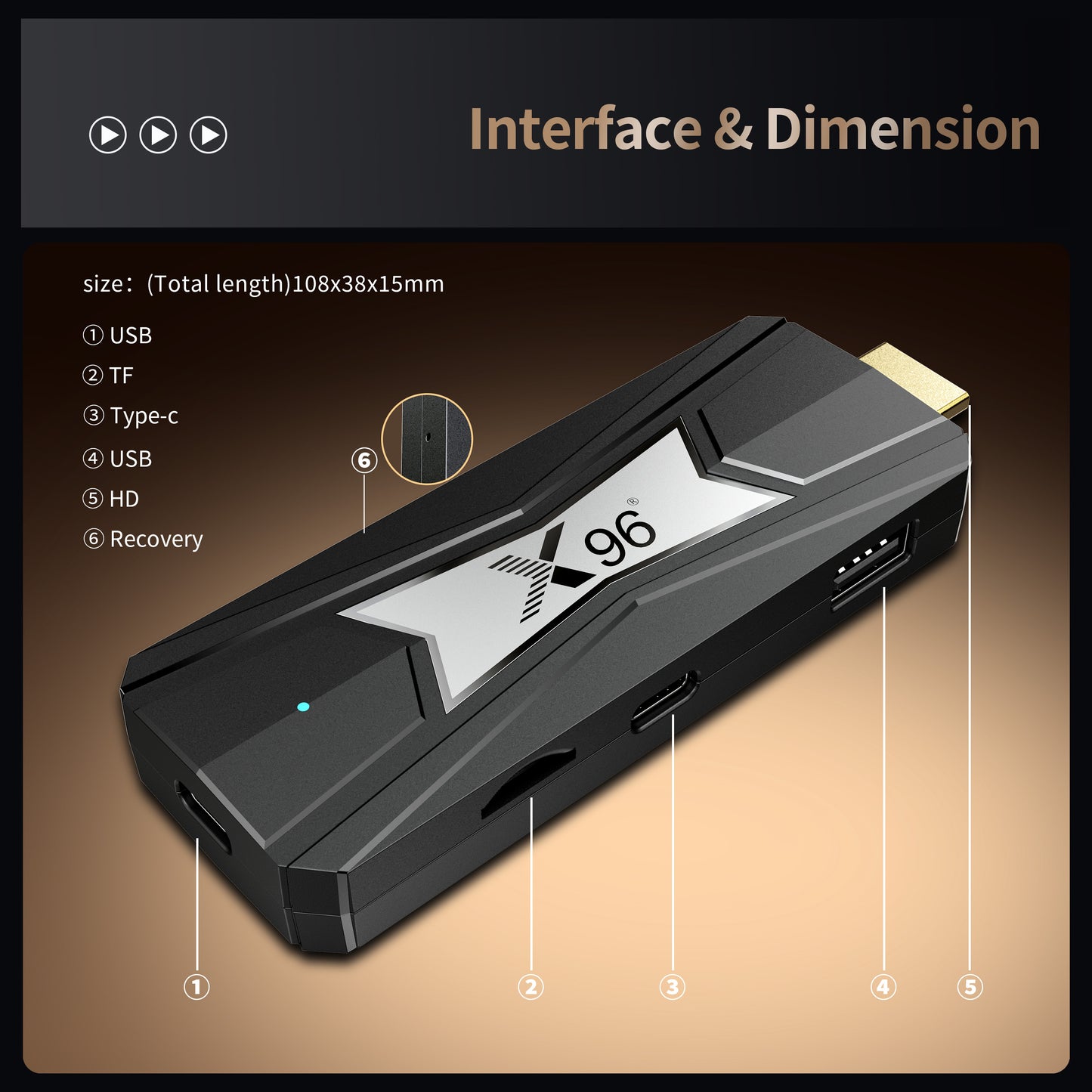

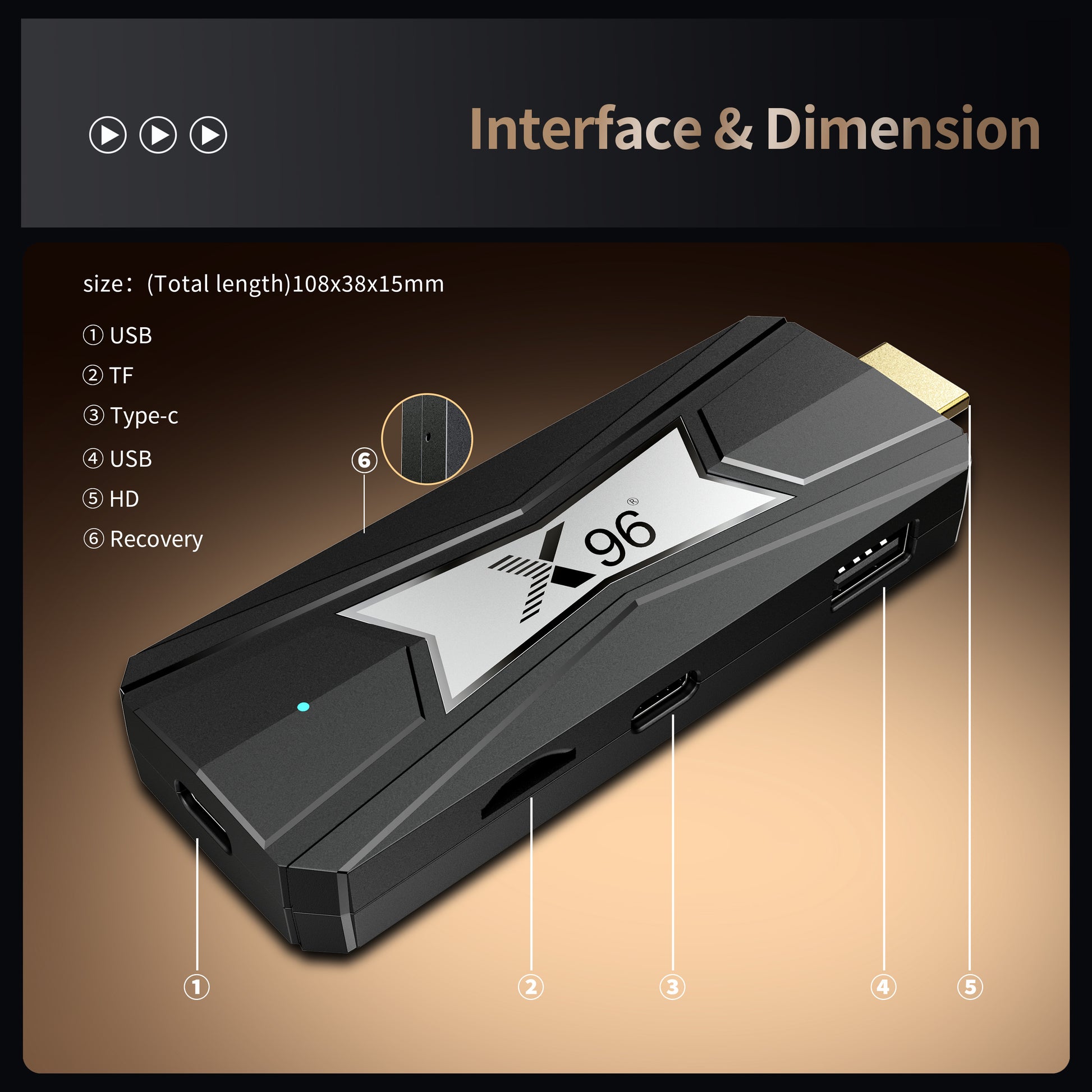

| Interface | ||||
| Micro SD | External memory | Support | ||
| Charge | USB TYPE-C Port | 5V/2A | ||
| Video output | HDMI OUT | 4K@60 Hz | ||
| USB port | USB host | 1*USB2.0 Type-A | ||
| Data | 1*USB2.0 Type-C | |||
| Key | Function | reset | ||
| Appearance | ||||
| Body Material | ABS | |||
| Color | Black | |||
| Size | 110.5x38x18.5(mm) | |||
| Weight | 0.1Kg | |||
| Cerifications(For Unit) | ||||
| Standard | ||||
| Others | Optional | |||

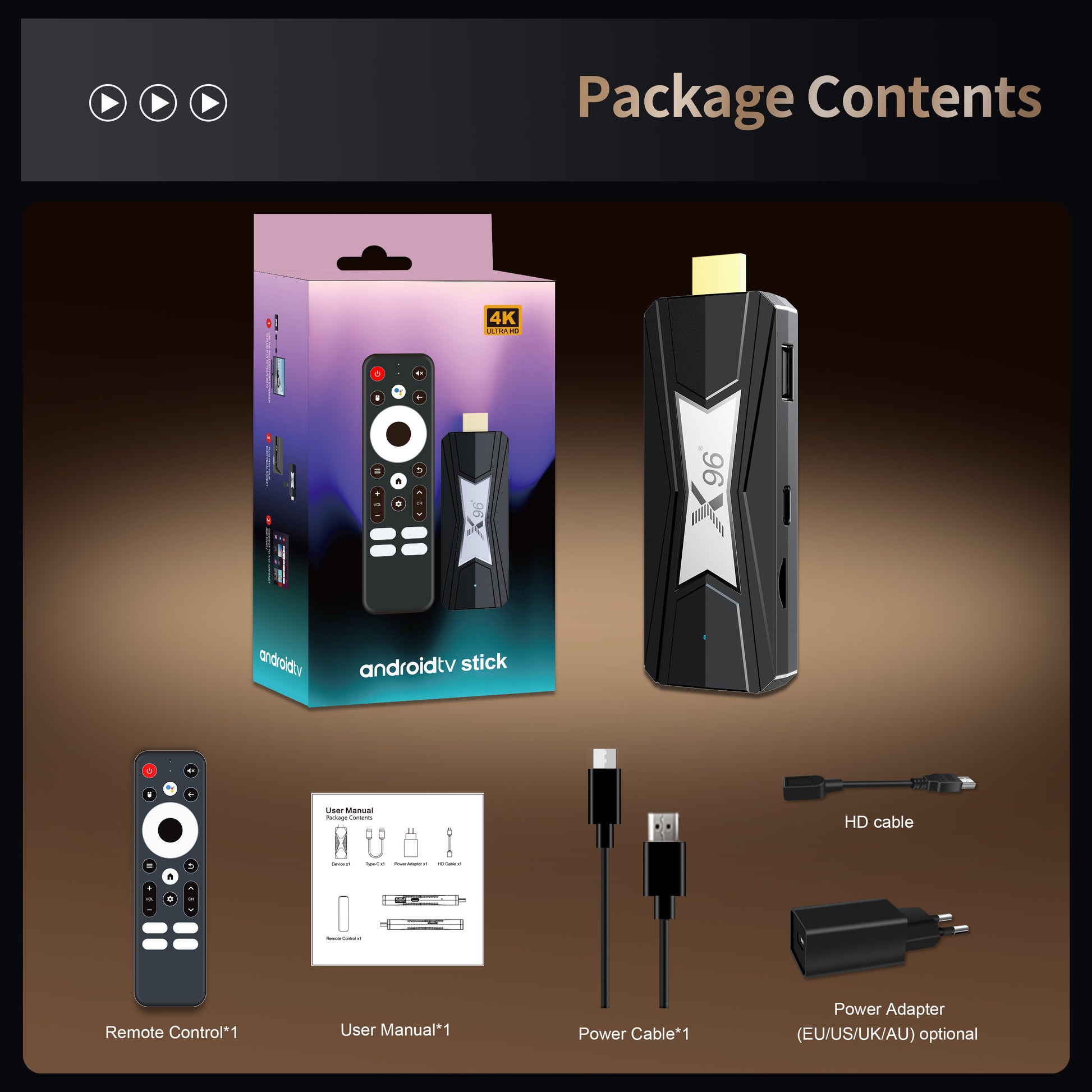

| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 200X117X42mm | |
| Gift Box | *1 | Carton Size(mm) | 438x480x258mm | |
| GamePad | *1 | Qty Per Carton(pcs) | 40pcs | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | ||
| Power adapter | *1 | Export carton (G.W.)(kgs) | ||
