Rockchip RK3566 Quad Core Android TV Box X98K Pro 8K Set Top Box Manufacturer

Sale Sold out

Shipping calculated at checkout.

RAM 4GB

ROM 32GB

Quantity

RK3566 Quad Core Android TV Box 8K Set Top Box Manufacturer

Basic parameters
CPU	Chipset	RK3566
	Architecture	Quad Core ARM Cortex A55
GPU	Chipset	Mali-G52 1-Core-2EE
	Architecture	OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 support
NPU		Neural network acceleration engine with processing performance up to 0.8 TOPS
RAM	Capacity	4GB (2/4GB Optional)
ROM	Capacity	32GB (16/32/64GB Optional)
External storage	USB Storage Devices	Supported
	Micro SD card	Supported
Software
Operating system	OS Version	Android 11
	Language	Multi-Language
Multimedia	Video	Video Decoder
		H.265 HEVC/MVC Main10 Profile yuv420@L5.1 up to 4096x2304@60fps
		H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096x2304@60fps
		VP9 Profile0/2 yuv420@L5.1 up to 4096x2304@60fps
		VP8 verision2,up to 1920x1088@60fps
		VC1 Simple Profile@low, medium, high levels, Main Profile@low, medium, high levels, Advanced Profile@level0~3,up to 1920x1088@60fps
		MPEG-4 Simple Profile@L0~6,Advanced Simple Profile@L0~5,up to 1920x1088@60fps
		MPEG-2 Main Profile, low, medium and high levels, up to 1920x1088@60fps
		MPEG-1 Main Profile, low, medium and high levels, up to 1920x1088@60fps
		H.263 Profile0,levels 10-70,up to 720x576@60fps
		* Video Encoder
		H.264/AVC BP/MP/HP@level4.2，up to 1920x1080@100fps
		H.265/HEVC MP@level4.1, up to 1920x1080@100fps (4096x4096@10fps with TILE)
		Support YUV/RGB video source with rotation and mirror
	Audio	Supports MP3, AAC, WMA, FLAC, Ogg.
	Image	HD JPEG、BMP、GIF、PNG、TIF
Network service

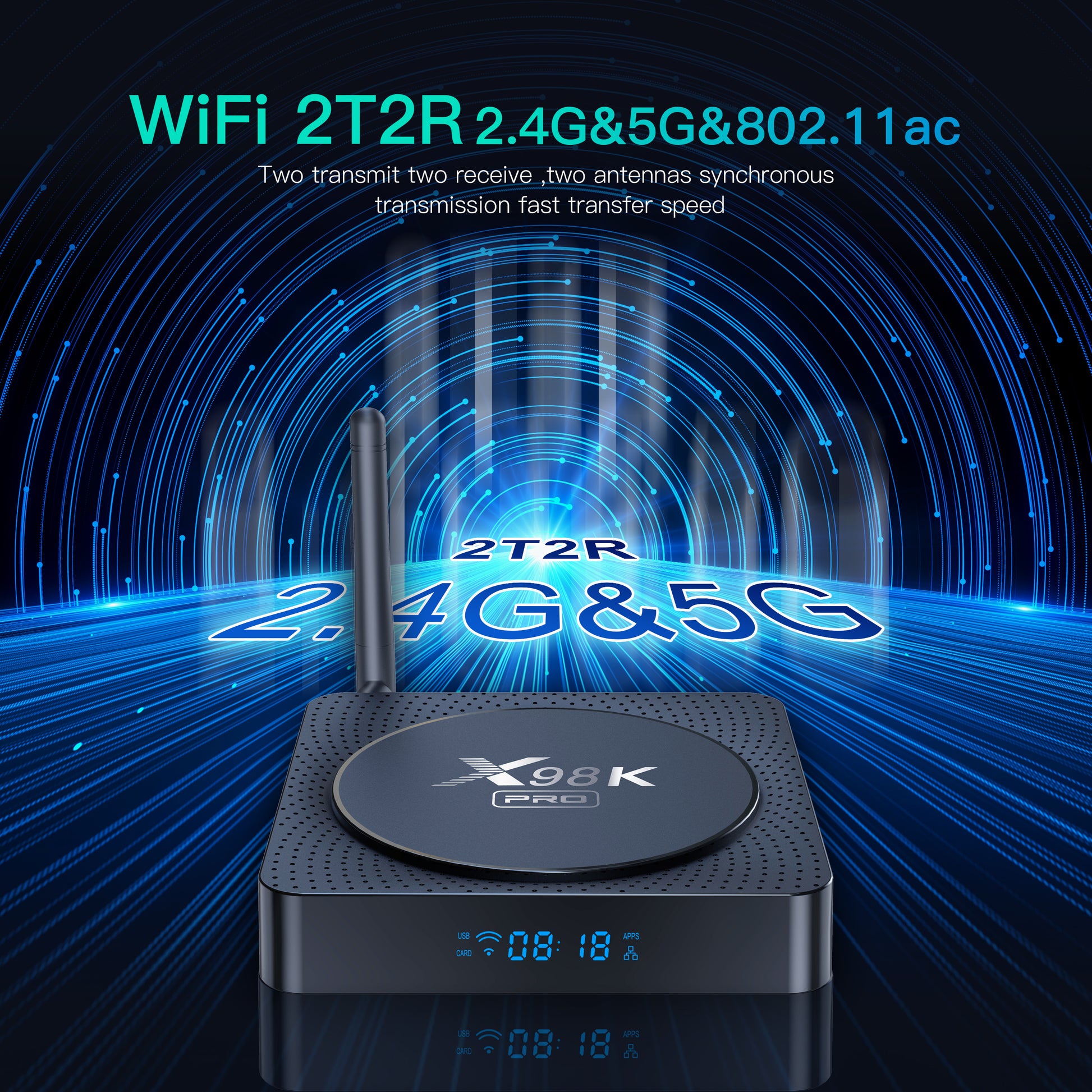

Wi-Fi	Type	Support WiFi IEEE 802.11 b / g / n / ac
	Frequency	Support 2.4G and 5G
	Antenna Type	Two external antennas
Bluetooth	Bluetooth	Support BT5.0

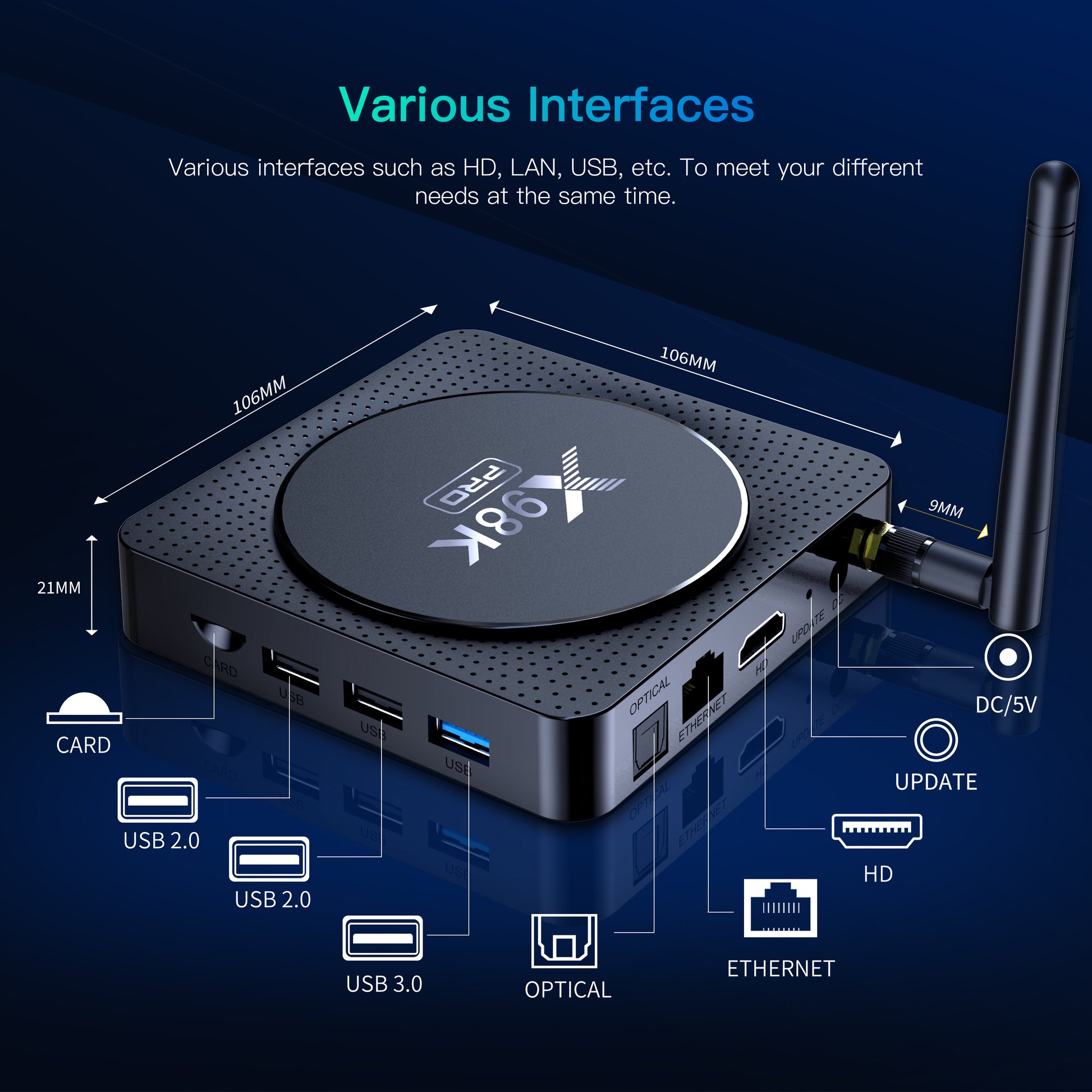

Interface
Charge	DC connector	DC IN(5V/2A)
Display output	HDMI	4K*2K UHD Output, Support HDMI 1.4/2.0
IR Reciver	3.5mm Earphone jack	Remote Reciver Connect
Micro SD	External memory	Support
USB port	USB host	1* USB3.0 2* USB2.0 normal type
Ethernet	Ethernet	1000M Ethernet
Appearance
Body Material	ABS Plastic
Color	Black
Size	10610620(mm)
Weight	0.152KG
Cerifications(For Unit)
Standard	CE	/
	RoHS	/
Others	Optional	/

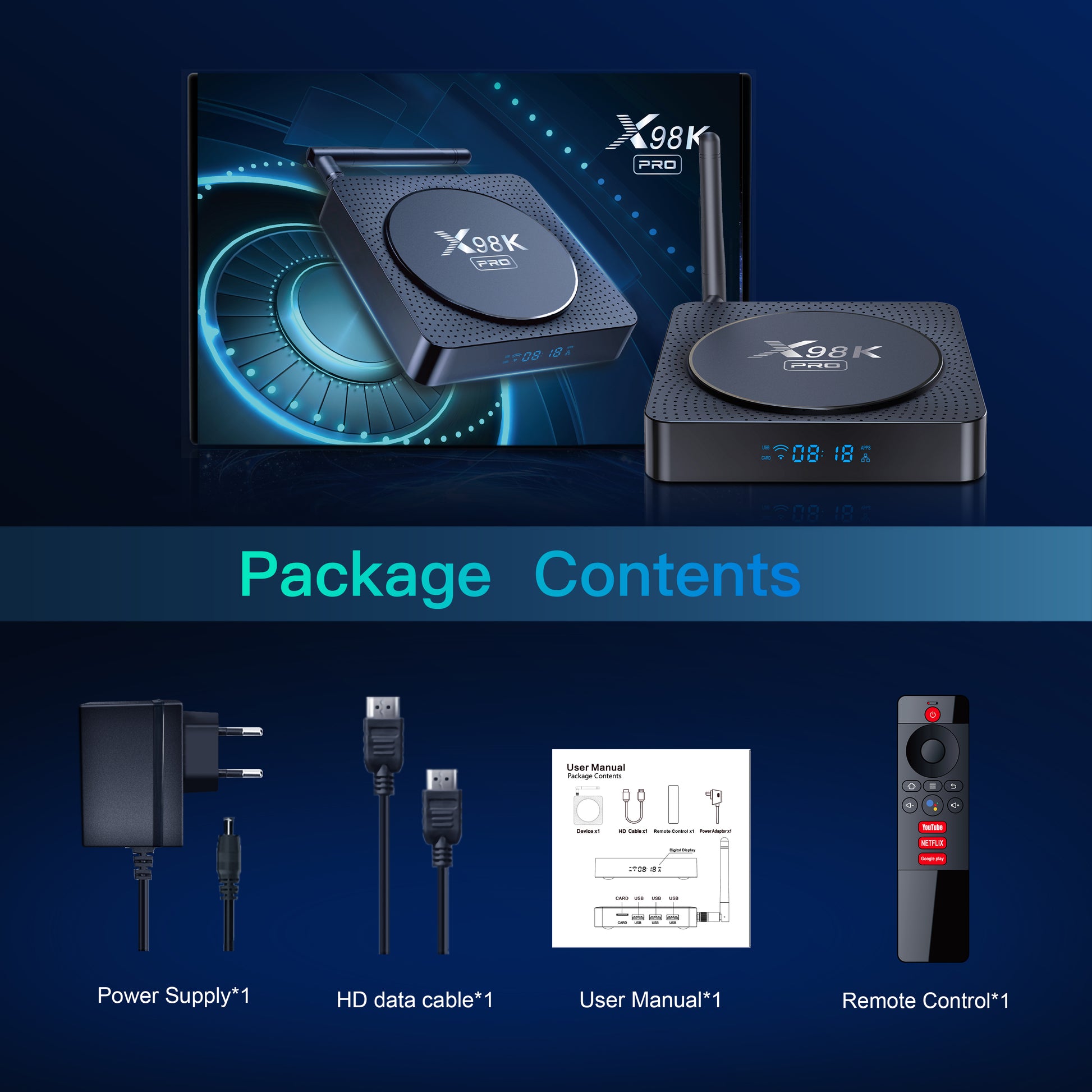

Package contents		Shipping Info
User manual	*1	Gift Box Dimension(mm)	20514050(mm)
Gift Box	*1	Carton Size(mm)	420270305 (mm）
Remote control	*1	Qty Per Carton(pcs)	20
HDMI external cable	*1	Gift Box.G.W(gs)	0.406Kg
Power adapter	*1	Export carton (G.W.)(kgs)	8.2Kg

RK3566 Quad Core Android TV Box Key Specifications

Chipset: RK3566 Quad-Core Processor
- Powered by a Quad Core ARM Cortex-A55 for efficient and responsive performance.
GPU: Mali-G52 1-Core-2EE
- Supports advanced graphics frameworks including OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, and Vulkan 1.1 for an immersive visual experience.
Memory Options:
- RAM: 4GB (2GB/4GB Optional).
- Storage: 32GB (Expandable to 16GB/32GB/64GB Optional).
Cutting-Edge Visual Technology:
- Supports Ultra HD 8K Resolution for unmatched clarity and detail.
- Compatible with 3D Content, delivering a cinema-like viewing experience at home.
Operating System:
- Runs on Android 11, offering a modern and user-friendly interface with access to thousands of apps in the Google Play Store.
