Rockchip RK3588 AI Android/Linux TV Box X96 AI Box Octa core 8K Digital Signage Player
Rockchip RK3588 AI Android/Linux TV Box X96 AI Box Octa core 8K Digital Signage Player
Rockchip RK3588 AI Android TV Box X96 AI Box Octa core 8K Digital Signage Player
Basic Parameters
Chipset: Rockchip RK3588
Architecture: Octa-core (Quad-core ARM Cortex-A76 & Quad-core ARM Cortex-A55)
Chipset: ARM Mali-G610 MP4
Architecture: Supports OpenGL ES 1.1, 2.0, 3.2; OpenCL up to 2.2; Vulkan 1.2
8GB/16GB RAM+64GB / 128GB ROM
USB Storage Devices: Supports USB 3.0
Micro SD Card: Supported
OS Version: Android 12 (Support Linux, Android Linux SDK Open Source)
Video Output: Supports 8K Resolution
RK3588 AI Android TV Box Spec
| Basic parameters | ||||
| CPU | Chipset | RK3588 | ||
| Architecture | Quad Core ARM Cortex A76 and Quad Core ARM Cortex A55 MPCore processor | |||
| GPU | Chipset | ARM Mali-G610 MP4 | ||
| Architecture | OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 | |||
| RAM | Capacity | Option :8/16GB | ||
| ROM | Capacity | Option :64/128GB | ||
| External storage | USB Storage Devices | USB3.0 Support | ||
| Micro SD card | Support | |||
| Software | ||||
| Operating system | OS Version | Android 12 | ||
| Language | Multi-Language | |||
| Video/Picture Decoding | H.264 AVC/MVC MP-10 L6.0: 8K@30fps | |||
| VP9 Profile-2 up to 8K@60fps | ||||
| H.265 HEVC/MVC MP-10 L6.1: 8K@60fps | ||||
| AVS2 Profile0/2 L10.2.6: 8K@60fps | ||||
| AV1 MP-10@L5.1 up to 4K@60fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Image Engine | Supports HDR10/HDR HLG | |||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support IEEE 802.11a/b/g/n/ac/ax（WIFI 6） | ||
| Frequency | Support 2.4G and 5G | |||
| Antenna Type | two internal antennas | |||
| Bluetooth | Bluetooth | Support BT5.X | ||

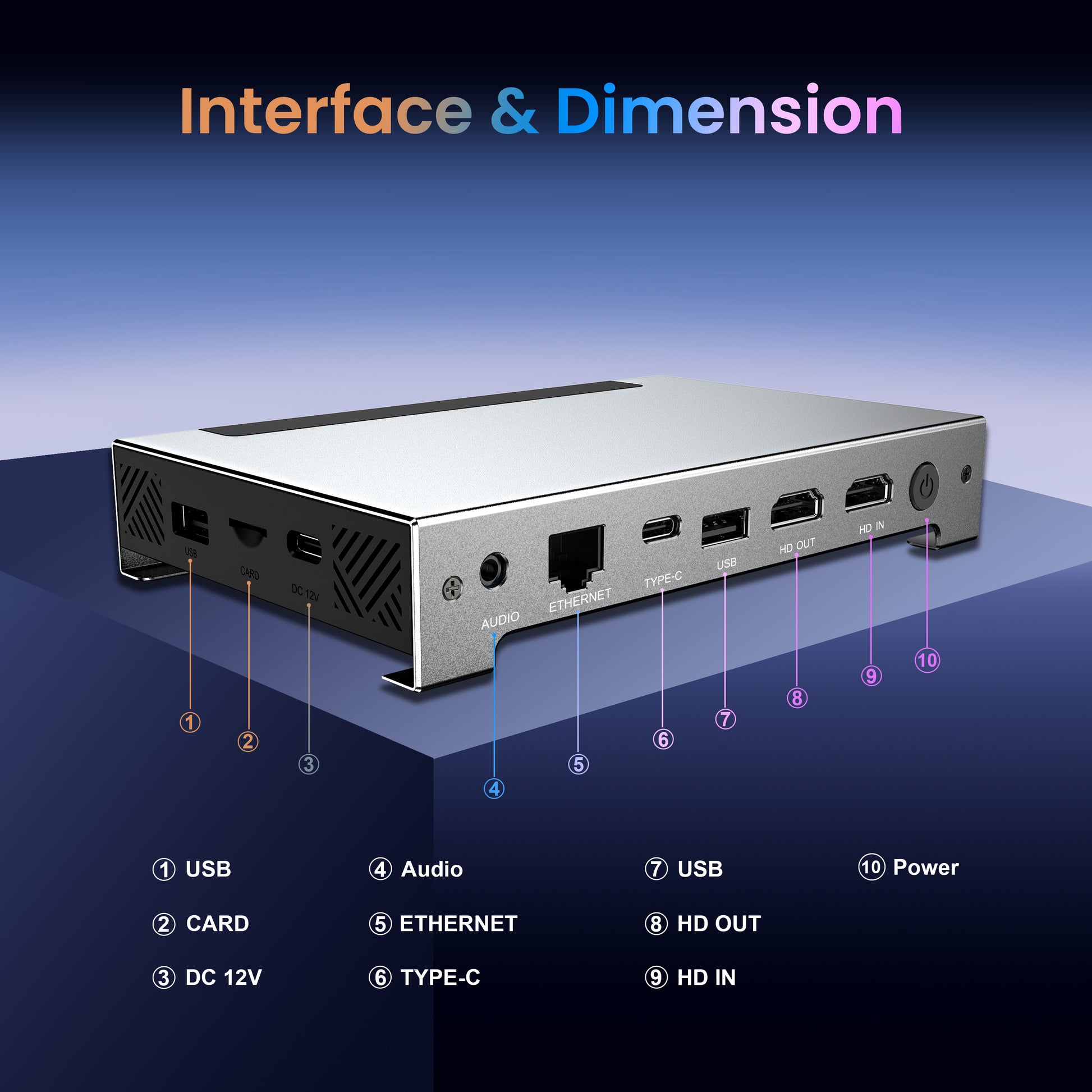

| Interface | ||||
| Micro SD | External memory | Support | ||
| Charge | Charging Port | USB Type-C Adapter (12V/2A ) | ||
| Video output | HDMI TX(OUTPUT) | HDMI2.1, 8K@60Hz | ||
| Video input | HDMI RX(INPUT) | HDMI2.0, 4K@60 Hz | ||
| Key | Key Function | Power/Maskrom/Reset/Recovery | ||
| USB port | USB Host&Data | USB3.0 Type-A | ||
| Data | USB2.0 Type-A | |||
| DisplayPort Fuction | USB Type-C | |||
| Ethernet | Ethernet | 1000Mbps Gigabit Ethernet | ||

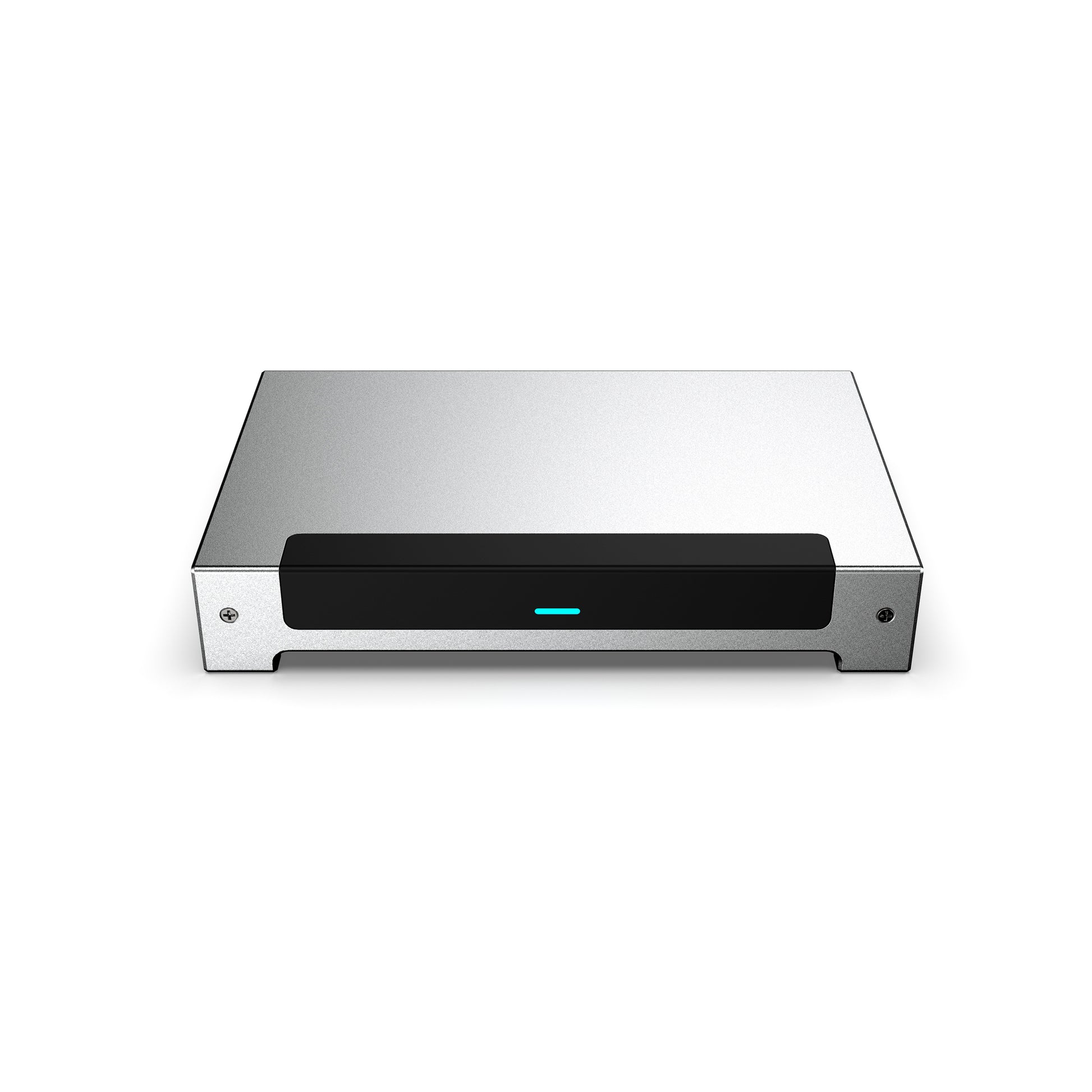

| Appearance | ||||
| Body Material | ABS | |||
| Color | Silvery&Black | |||
| Size | 158x101x28(mm) | |||
| Weight | 0.241Kg | |||
| Cerifications(For Unit) | ||||
| Standard | ||||
| Others | Optional | |||

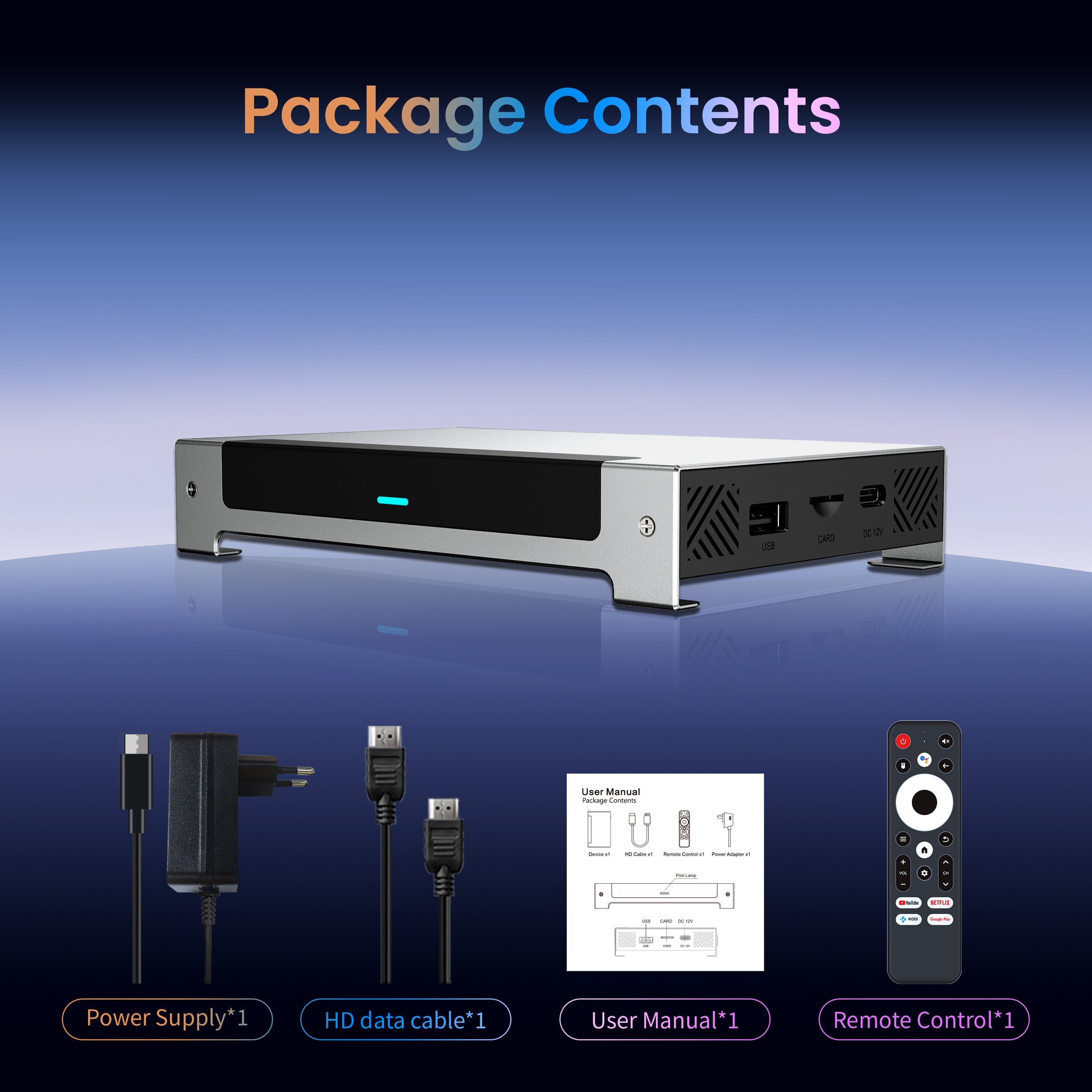

| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 183×136×80mm | |
| Gift Box | *1 | Carton Size(mm) | 420*380*290mm | |
| GamePad | *1 | Qty Per Carton(pcs) | 20pcs | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | ||
| Power adapter | *1 | Export carton (G.W.)(kgs) | ||
