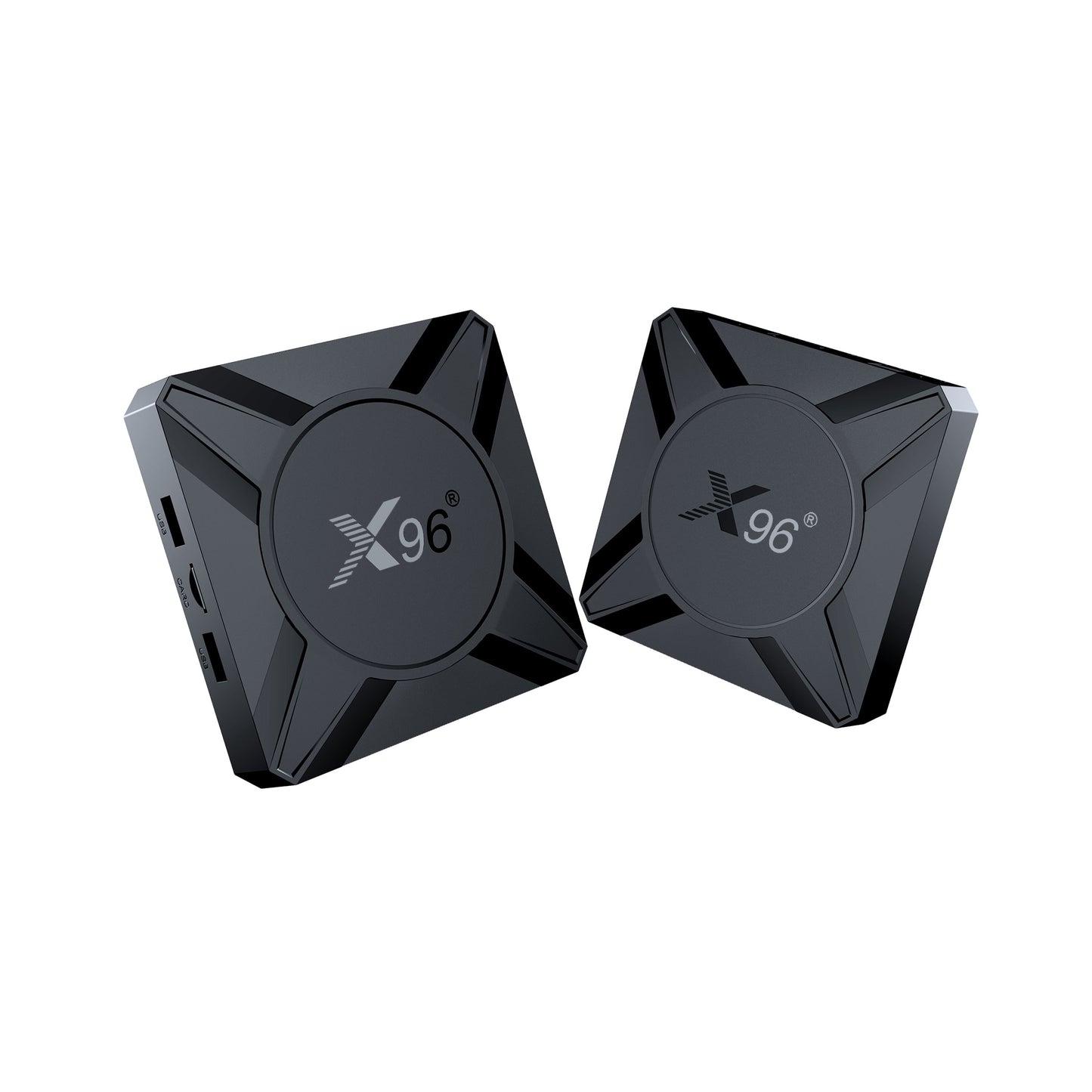

X96 M300 Amlogic S905X5M AV1 Android TV Box Set Top Box Manufacturer
X96 M300 Amlogic S905X5M AV1 Android TV Box Set Top Box Manufacturer
The X96 M300 TV Box is powered by a Quad-Core ARM Cortex-A55 CPU and an ARM G310 V2 GPU, ensuring smooth and efficient performance. Built on a 6nm chipset, it offers enhanced energy efficiency and reduced heat. Supporting AV1 video decoding, the box delivers superior streaming quality with reduced bandwidth consumption. Running on Android 14, it provides a modern and user-friendly interface. With 4K Ultra HD resolution and AI-SR upscaling technology, it enhances picture clarity and delivers an outstanding visual experience. Perfect for premium home entertainment.
| Basic parameters | ||||
| CPU | Chipset | Amlogic S905X5M | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM G310 V2 | ||
| Architecture | OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | 4GB (2/4GB Optional) | ||
| ROM | Capacity | 64GB (16/32/64/128GB Optional) | ||
| External storage | USB Storage Devices | USB2.0 Support | ||
| Micro SD card | Supported | |||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Video/Picture Decoding | AV1 MP-10@L5.1 up to 4Kx2K@60fps | |||
| VP9 Profile-2 up to 4Kx2K@60fps | ||||
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Image Engine | Supports HDR10, HDR10+ processing | |||
| Inline AI-SR,Block noise, mosquito noise, spatial noise, contour noise reduction | ||||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support WiFi IEEE 802.11 b / g / n /ac | ||
| Frequency | Support 2.4G and 5G | |||
| Antenna Type | two internal antennas | |||
| Bluetooth | Bluetooth | Support BT5.X | ||
| Interface | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HDMI | 4K*2K UHD Output, HDMI 2.1a | ||
| IR Reciver | 3.5mm Earphone jack | Remote Reciver Connect | ||
| Micro SD | External memory | Support | ||
| USB port | USB host | *2 USB2.0 normal type | ||
| Ethernet | Ethernet | 1000M Ethernet | ||
| Appearance | ||||
| Body Material | ABS | |||
| Color | Black | |||
| Size | 106x106x24(mm) | |||
| Weight | 0.141Kg | |||
| Cerifications(For Unit) | ||||
| Standard | CE | / | ||
| RoHS | / | |||
| Others | Optional | / | ||
| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 205*140*50(mm) | |
| Gift Box | *1 | Carton Size(mm) | 420*270*305 (mm） | |
| Remote control | *1 | Qty Per Carton(pcs) | 20 | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | 0.394Kg | |
| Power adapter | *1 | Export carton (G.W.)(kgs) | 8.88Kg | |
