X96 TV Box

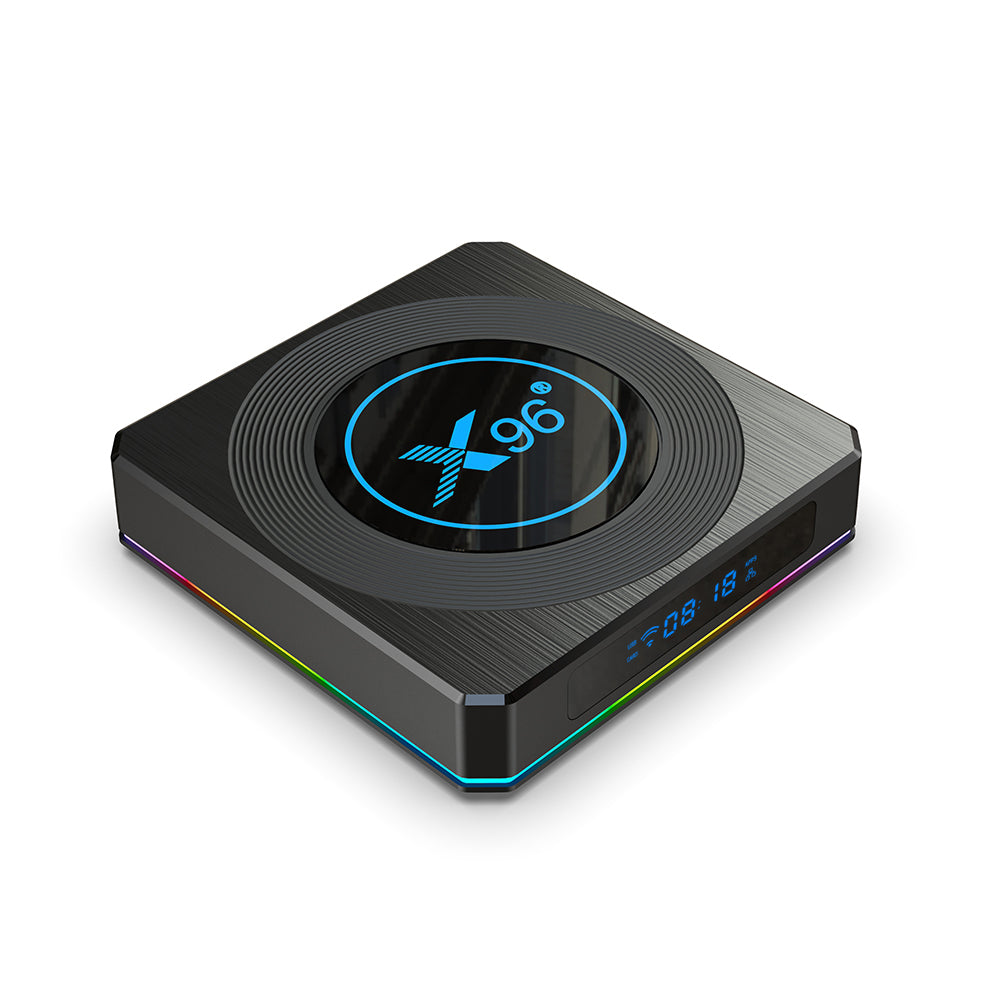

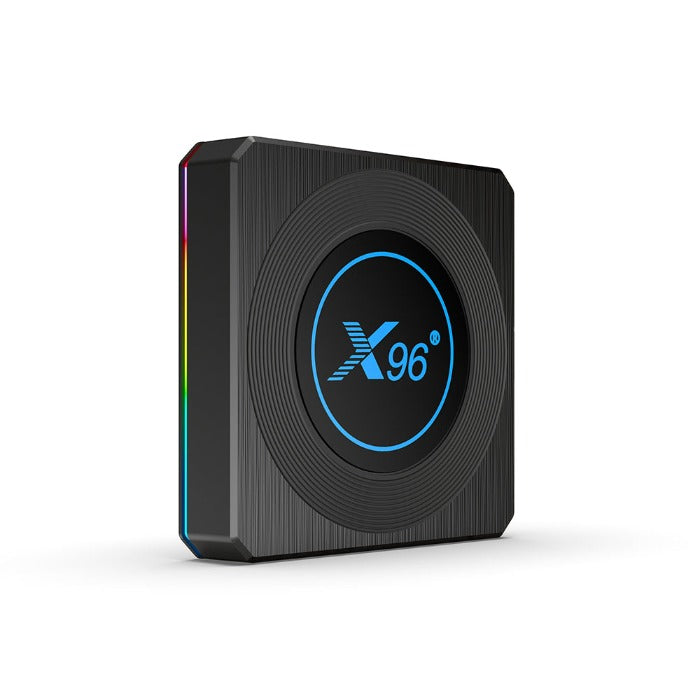

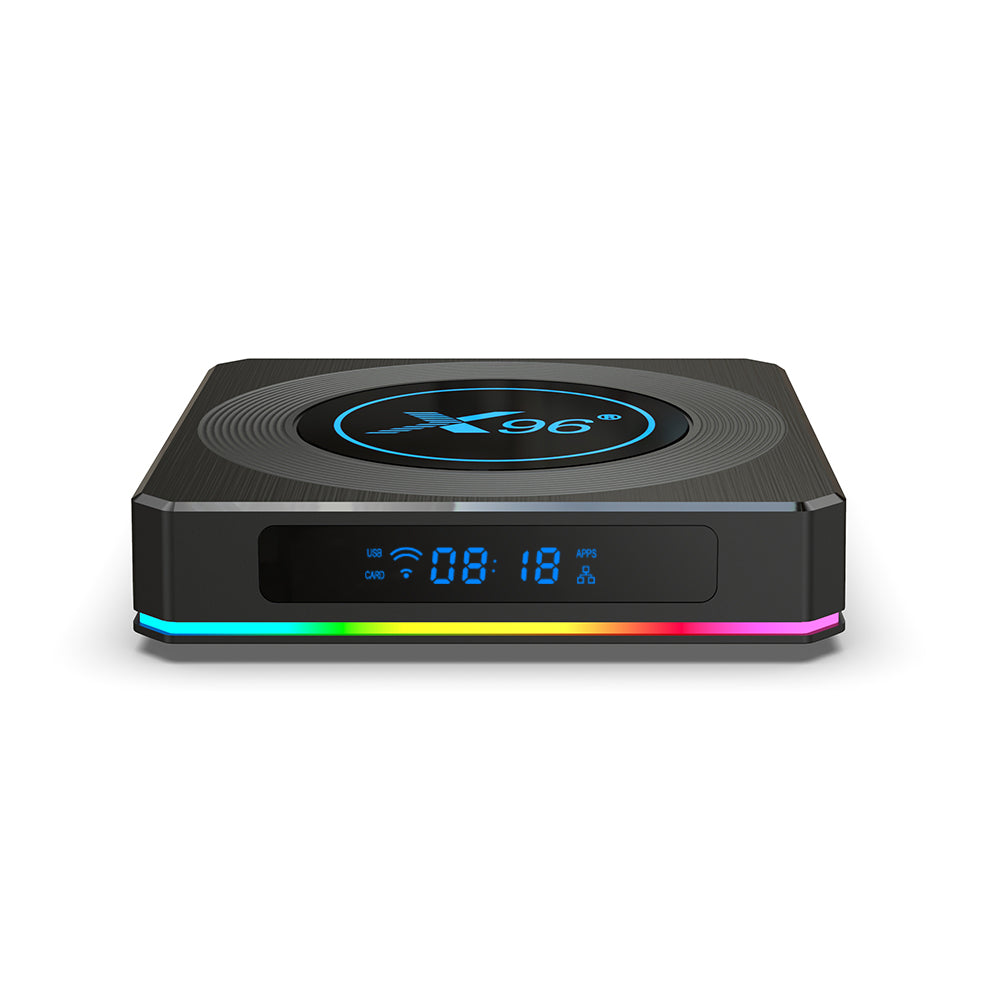

X96 X4 Amlogic S905X4 Quad Core TV Box
X96 X4 Amlogic S905X4 Quad Core TV Box
X96 X4 Amlogic S905X4 Quad Core TV Box is an ideal choice for home entertainment. Equipped with Amlogic S905X4 quad-core processor, it supports 4K ultra-high-definition resolution, allowing you to enjoy a cinematic audio-visual experience at home. Running the Android 11.0 operating system, it provides access to a wealth of applications and entertainment content, including streaming services such as Netflix, YouTube, and various games and social media applications. Multiple connection interfaces such as HDMI, USB, and Wi-Fi make it easy to connect to TVs and other devices. Whether watching movies, playing music, or playing games, X96 X4 can meet your home entertainment needs.
CPU | Chipset | Amlogic S905X4 | ||
Architecture | Quad Core ARM Cortex A55 | |||
GPU | Chipset | ARM Mali-G31 MP2 | ||
Architecture | OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 support | |||
RAM | Capacity | 4GB (2/4GB Optional) | ||
ROM | Capacity | 64GB (16/32/64/128GB Optional) | ||
External storage | USB Storage Devices | USB2.0, USB3.0 Support | ||
Micro SD card | Supported | |||
Software | ||||
Operating system | OS Version | Android 11 | ||
Language | Multi-Language | |||
Multimedia | Video | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4x1080P@60fps |
||
Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding | ||||
Video/Picture Decoding | ||||
VP9 Profile-2 up to 8Kx4K@24 fps | ||||
H.265 HEVC MP-10@L5.1 up to 8Kx4K@24 fps | ||||
AVS2-P2 Profile up to 8Kx4K@24 fps | ||||
MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | ||||
MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
MPEG-1 MP/HL up to 1080P@60fps (ISO-11172 | ||||
RealVideo 8/9/10 up to 1080P@60fps | ||||
Multiple language and multiple format sub-title video support | ||||
MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918 | ||||
Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | ||||
Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
Image | HD JPEG、BMP、GIF、PNG、TIF | |||
Network service | ||||
Wi-Fi | Type | Support WiFi IEEE 802.11 b / g / n / ac | ||
Frequency | Support 2.4G and 5G | |||
Antenna Type | Two external antennas | |||
Bluetooth | Bluetooth | Support BT4.X | ||
Interface | ||||
Charge | DC connector | DC IN(5V/2A) | ||
Video output | HDMI | 4K*2K UHD Output, HDMI 1.4/2.0 | ||
IR Reciver | 3.5mm Earphone jack | Remote Reciver Connect | ||
Micro SD | External memory | Support | ||
USB port | USB host | *1 USB3.0 *1 USB2.0 normal type | ||
Ethernet | Ethernet | 1000M Ethernet | ||
Appearance | ||||
Body Material | Plastic | |||
Color | Black | |||
Size | 105*105*22(mm) | |||
Cerifications(For Unit) | ||||
Package contents | Shipping Info | |||
User manual | *1 | Gift Box Dimension(mm) | 205*140*50(mm) | |
Gift Box | *1 | Carton Size(mm) | 420*270*305 (mm) | |
Remote control | *1 | Qty Per Carton(pcs) | 20 | |
HDMI external cable | *1 | Gift Box.G.W(gs) | 0.425Kg | |
Power adapter | *1 | Export carton (G.W.)(kgs) | 9Kg |
