X96 TV Box

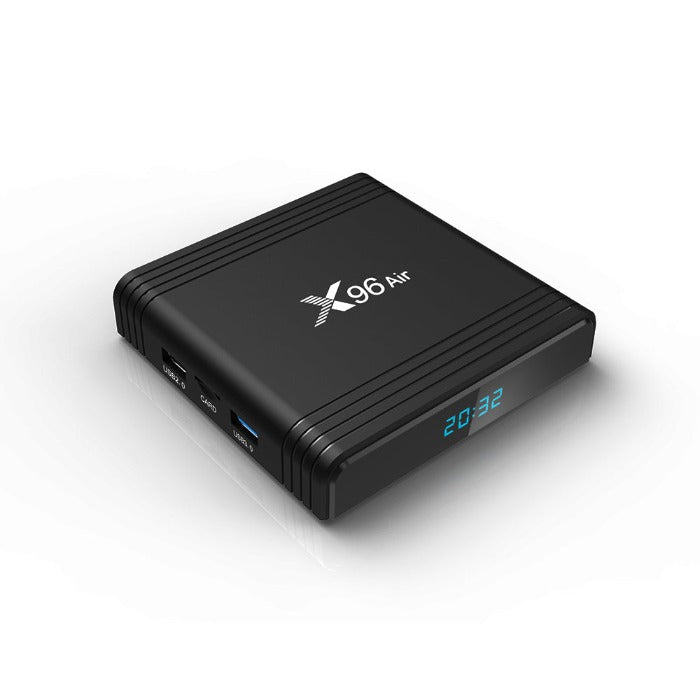

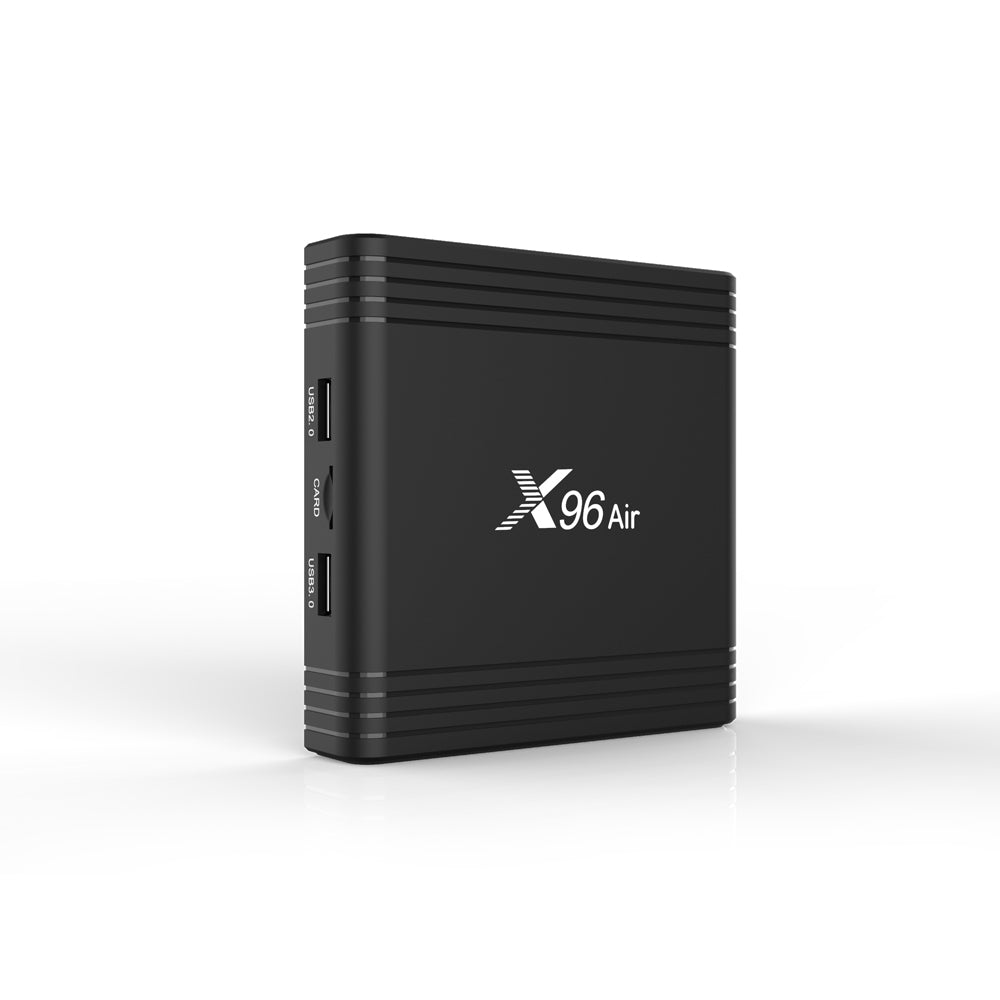

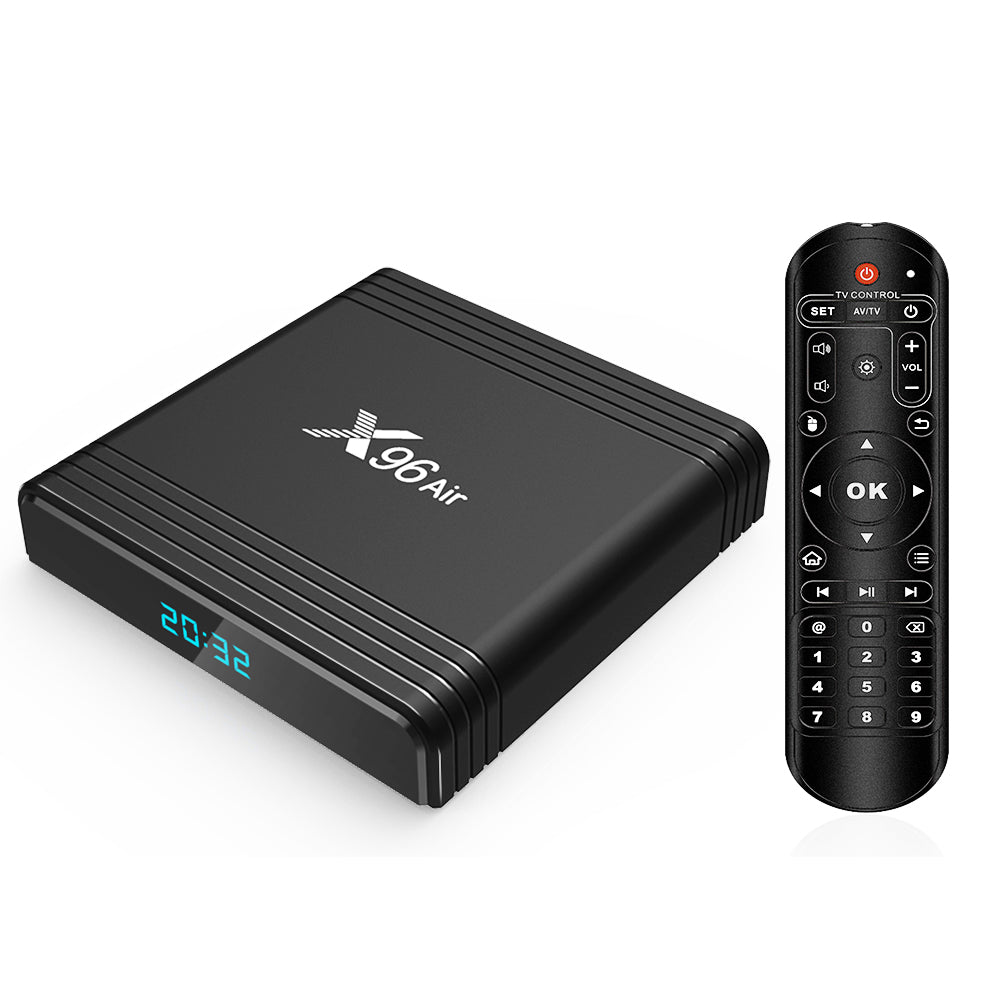

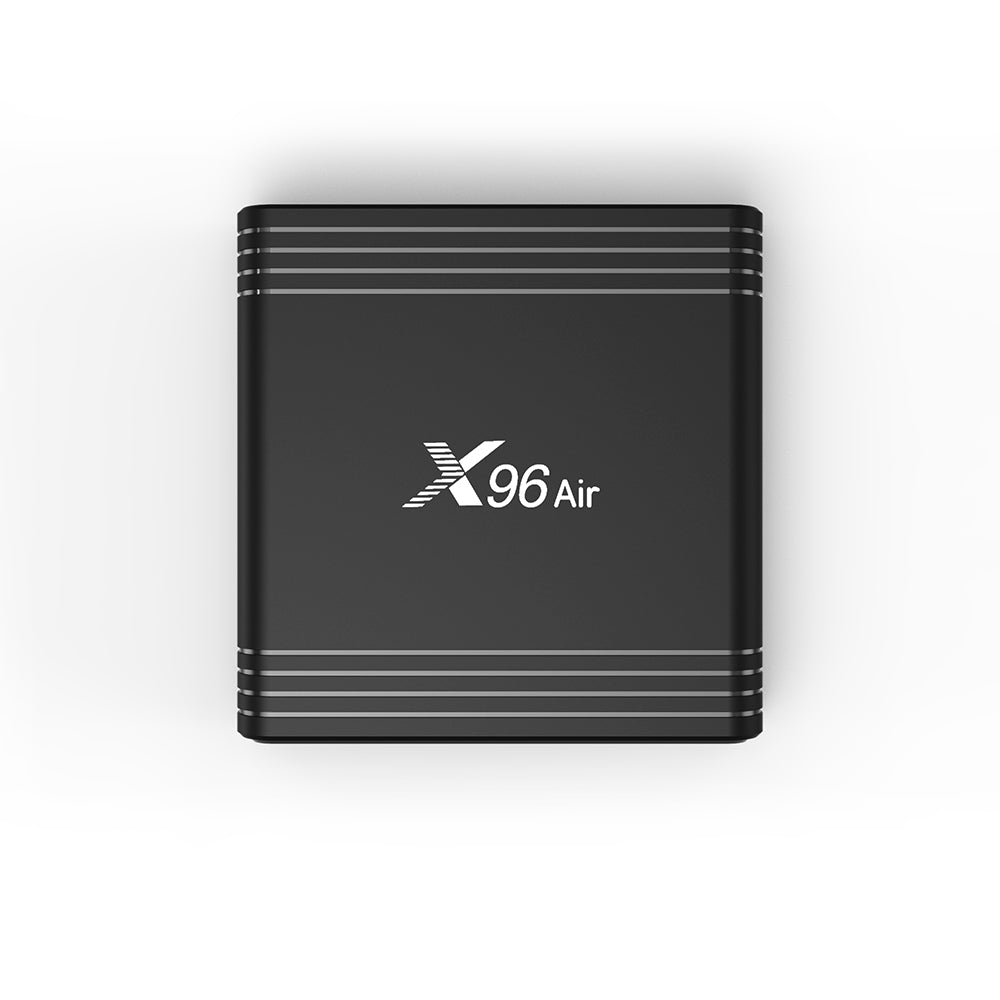

X96 Air Quad Core Amlogic S905X3 TV Box
X96 Air Quad Core Amlogic S905X3 TV Box
| CPU | Amlogic S905X3 64-bit quad core ARM® Cortex™ A55 CPU | |||||||
| GPU | G31™ MP2 GPU processor | |||||||
| Memory | LPDDR4: 2GB/4GB | |||||||
| Flash | eMMC:32GB(Option: 16GB/64GB ) | |||||||
| WiFi | IEEE 802.11 a/b/g/n/ac ; 2.4G / 5G | |||||||
| Bluetooth | BT ; Support Voice Remote | |||||||
| Moudle | Plastic : Black Color | |||||||
| I/O | 1*HDMI | HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and and 8Kx4K 24 max resolution output | ||||||
| 1*AV OUT | 480i/576i standard definition output | |||||||
| 3*USB | 1 * USB 3.0 ; 2*USB 2.0 | |||||||
| 1*IR Reciver | Remote Reciver Connect | |||||||
| 1*RJ45 | Ethernet Interface;Support 1000/100M | |||||||
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |||||||
| Power | DC 5V/2A; | |||||||
| Software | ||||||||
| OS | Android 9.0 | |||||||
| Video | - Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders | |||||||
| - Support multi-video decoder up to 4x1080P 60fps | ||||||||
| - Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding | ||||||||
| - Video/Picture Decoding | ||||||||
| - VP9 Profile-2 up to 8Kx4K 24 fps | ||||||||
| - H.265 HEVC MP-10 L5.1 up to 8Kx4K 24 fps | ||||||||
| - AVS2-P2 Profile up to 8Kx4K 24 fps | ||||||||
| - H.264 AVC HP L5.1 up to 4Kx2K 30fps | ||||||||
| - MPEG-4 ASP L5 up to 1080P 60fps (ISO-14496) | ||||||||
| - WMV/VC-1 SP/MP/AP up to 1080P 60fps | ||||||||
| - AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P 60fps | ||||||||
| - MPEG-2 MP/HL up to 1080P 60fps (ISO-13818) | ||||||||
| - MPEG-1 MP/HL up to 1080P 60fps (ISO-11172) | ||||||||
| - RealVideo 8/9/10 up to 1080P 60fps | ||||||||
| - Multiple language and multiple format sub-title video support | ||||||||
| - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||||||
| - Supports JPEG thumbnail, scaling, rotation and transition effects | ||||||||
| - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | ||||||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing | |||||||
| Low-power VAD | ||||||||
| Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output | ||||||||
| 3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x 32bits x 16ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bits x 16ch | ||||||||
| Digital microphone PDM input with programmable CIC, LPF & HPF, support up to 8 DMICs | ||||||||
| Built-in stereo audio DAC | ||||||||
| Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM | ||||||||
| Image | HD JPEG,BMP,GIF,PNG,TIF | |||||||
| Language | English French German Spanish Italian etc multilateral languages | |||||||
| Appliactions | ||||||||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |||||||
| Apps | Apps download freely form android market,amazon app store etc. | |||||||
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . | |||||||
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |||||||
| Others | Support Email,office suit etc. | |||||||
| Support DLNA function | ||||||||
| Support 2.4G wireless mouse/keyboard | ||||||||
| Accessories : | ||||||||
| 1,HDMI cable *1 | ||||||||
| 2,IR Remote *1 | ||||||||
| 3,User Manual *1 | ||||||||
| 4,Package box *1 | ||||||||
| 5,Power adapter *1 | ||||||||
