X96 TV Box

8K Android TV Box Amlogic S928X-J Penta-Core Processor

8K Android TV Box Amlogic S928X-J Penta-Core Processor

Sale Sold out
Shipping calculated at checkout.
RAM
ROM

Amlogic S928X 8K ULTRA HD Android TV Box

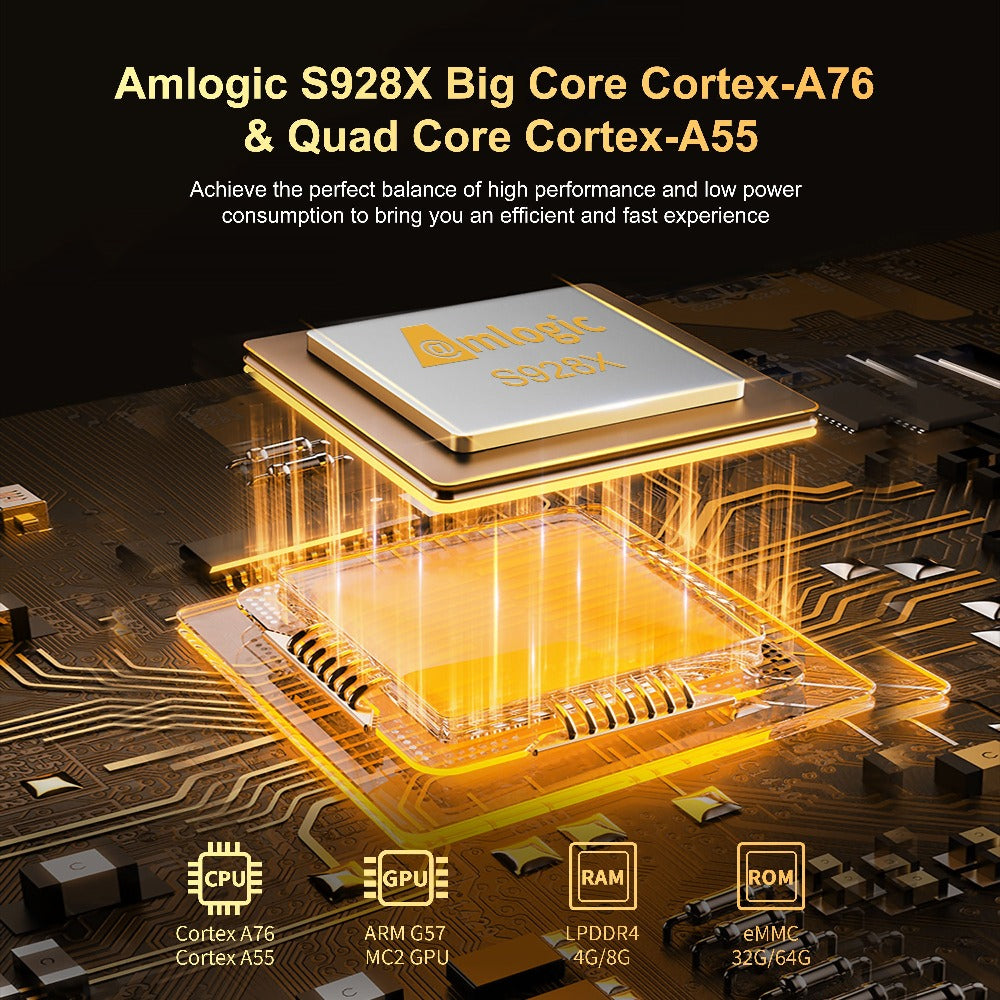

  • CPU: Amlogic S928X ARM Cortex-A76+Quad-Core ARM Cortex-A55
  • GPU: ARM Mali-G57 MC2, 4K GUI OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0
  • NPU: 3.2 TOPS
  • RAM: 64-bit DDR4, LPDDR4/4X UP to 8GB DDR4266
  • eMMC: eMMC 5.1, SLC NAND Flash

The Amlogic S928X focuses on 8K video playback and output and comes with a single Cortex-A76 core and a Mali-G57 MC2 GPU that are fast enough to render user interfaces smoothly at 4K resolution.

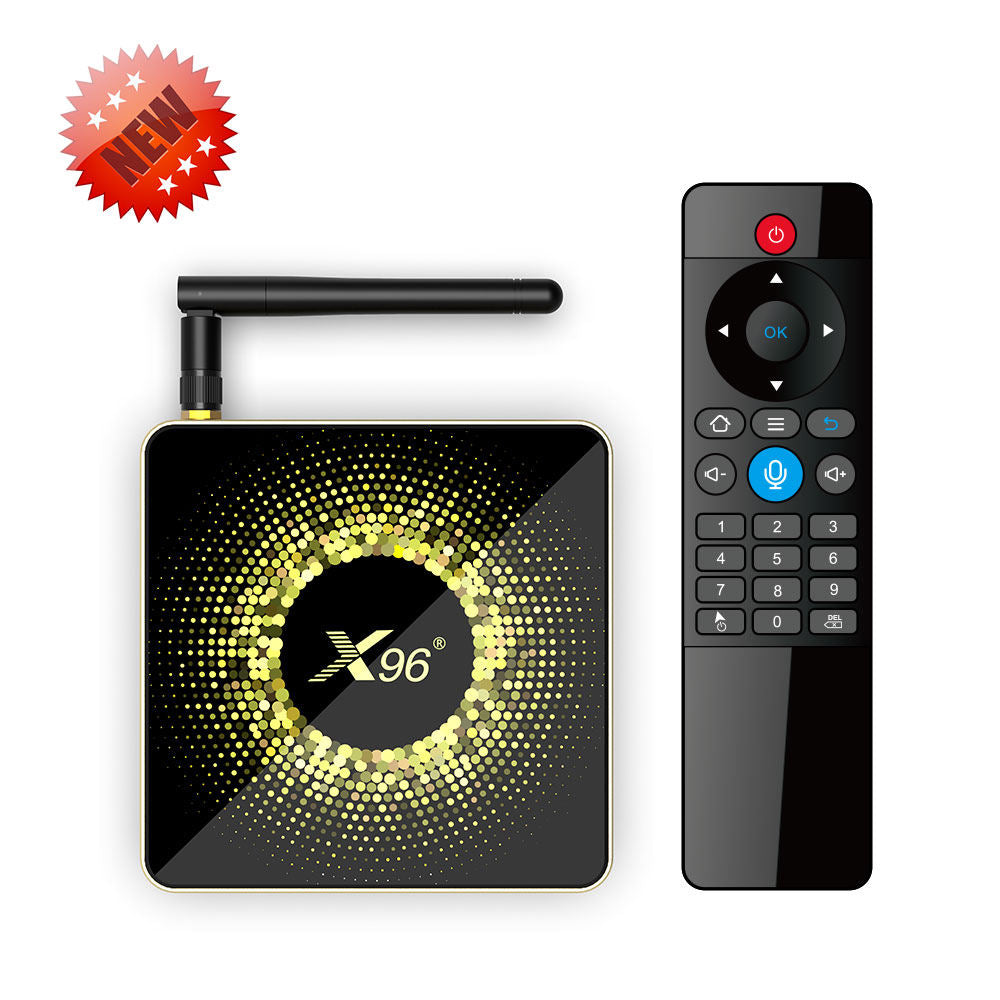

Product Model X96 X10
Operating system Android 11
Language Multi-Language
CPU Amlogic S928X-J with 12mm 2.0G HZ, A big core ARM Cortex-A76 and quad core ARM Cortex-A55 CPU
GPU ARM G57™ MC2 GPU, OpenGL ES 3.2, Vulkan 1.2 and OpenCL 2.0 support

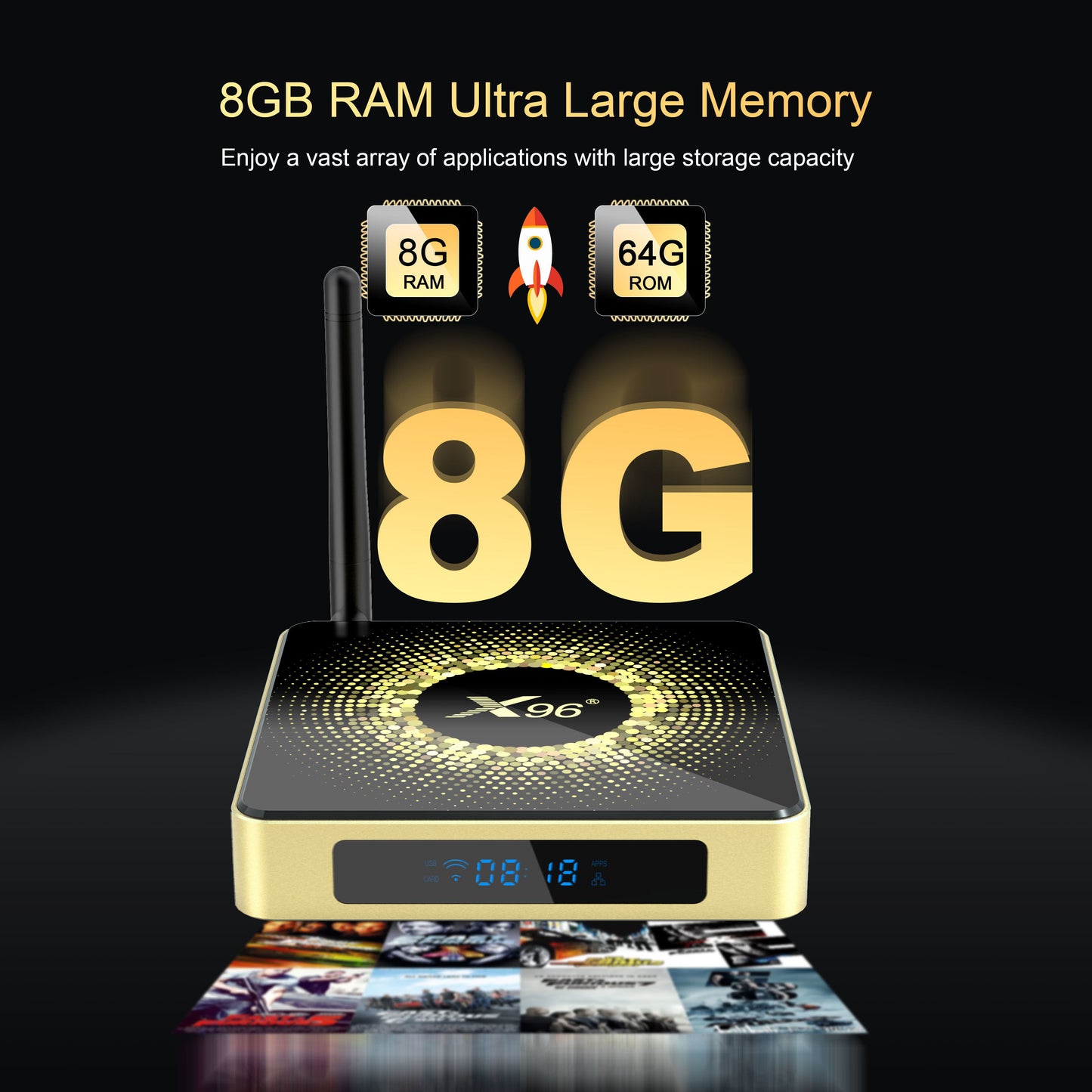

RAM 4GB/8GB (LPDDR4 or LPDDR4X)
ROM 32GB (16GB/32GB/128GB optional)
External storage USB Storage Devices
Micro SD card

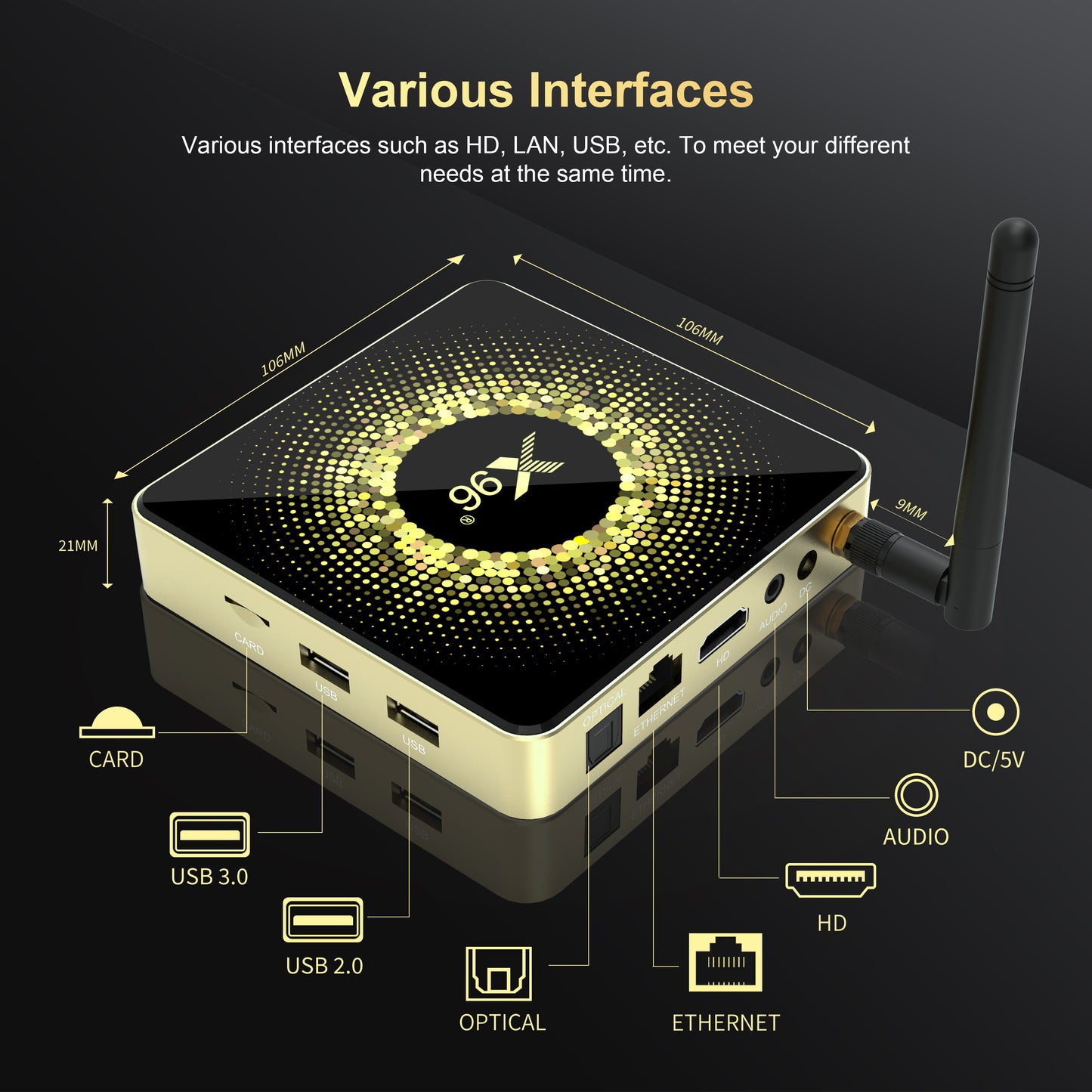

External I / O Ports DC IN(5V/3A)
HDMI 2.1a  8Kx4K@60hz max resolution output
1* SPDIF OUT
3.5mm AUDIO JACK
1* TF card
1* USB3.0
1* USB2.0
1000M
RTC optional
Multimedia
Video — Support 8K@60fps Video decoding
—VP9 Profile-2@6.1 up to 8Kx4K@60fps
—H.265 HEVC MP-10@L6.1 up to 8Kx4K@60fps
—AVS3 Phase 1 up to 8Kx4K@60fps
—AVS2-P2 Profile up to 8Kx4K@60fps
—H.264 AVC HP@L5.2 up to 4Kx2K@60fps
—Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso,*.mp4, *.rm and *.jpg file formats
Audio Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing
Image JPEG image encoding up to 1080P@60fps
Network service
 Wi-Fi WLAN Standards IEEE802.11a/b/g/n/ac/ax
Wi-Fi Date Rate MAX 1200Mbps
Wi-Fi Frequency 2.4GHZ& 5.8GHZ
Bluetooth  Bluetooth 5.2


  • Amlogic S928X 8K ULTRA HD Android TV Box
  • SoC – Amlogic S928X
    • CPU – Penta-core processor with 1x Cortex-A76 core, 4x Cortex-A55 cores
    • GPU – Arm Mali-G57 MC2 GPU with support for OpenGL ES 3.2, Vulkan 1.2, and OpenCL 2.0
    • VPU
      • 8Kp60 H.265, AV1, VP9, AVS3/AVS2 10-bit video decoder;
      • 4Kp60 H.264 decoder,
      • 1080p60 MPEG-4, WMV/VC-1, AVS, MPEG-2, MPEG-1 decoder
      • Low-latency 4Kp60 H.265/H.264 encoder
    • AI accelerator – Up to 3.2 TOPS Neural Network Accelerator (NNA) with Tensor Processing Unit (TPU) architecture, supports TensorFlow and Caffe
    • Manufacturing process – 12nm
  • System Memory – Up to 8GB LPDDR4/4X
  • Storage – eMMC 5.1 flash, micro SD card socket
  • Video Output – HDMI 2.1a up to 8Kp60 with HDCP2.2/2.3, HDR 10, HLG, HDR10+, Dolby Vision
  • Audio – 3.5mm audio jack, optical SPDIF output, and HDMI digital audio output
  • Networking
    • Gigabit Ethernet RJ45 port
    • WiFi and Bluetooth module
  • USB – 1x USB 3.0 (5 Gbps) Type-A port, 1x USB 2.0 Type-A host port
  • Power Supply – 5V/3A via power barrel jack
