X96 X6 Octa Core Rockchip RK3566 Android TV Box
X96 X6 Octa Core Rockchip RK3566 Android TV Box

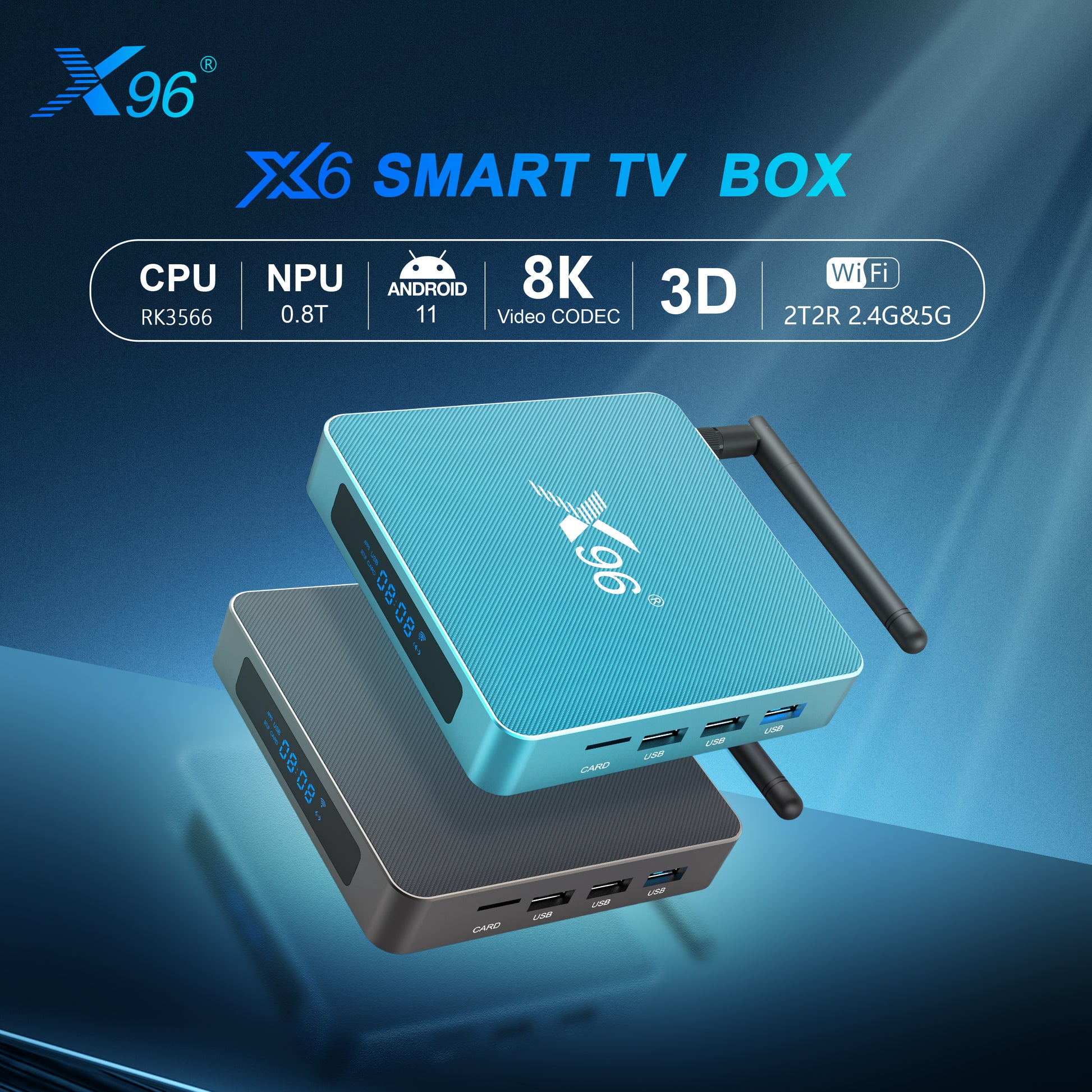

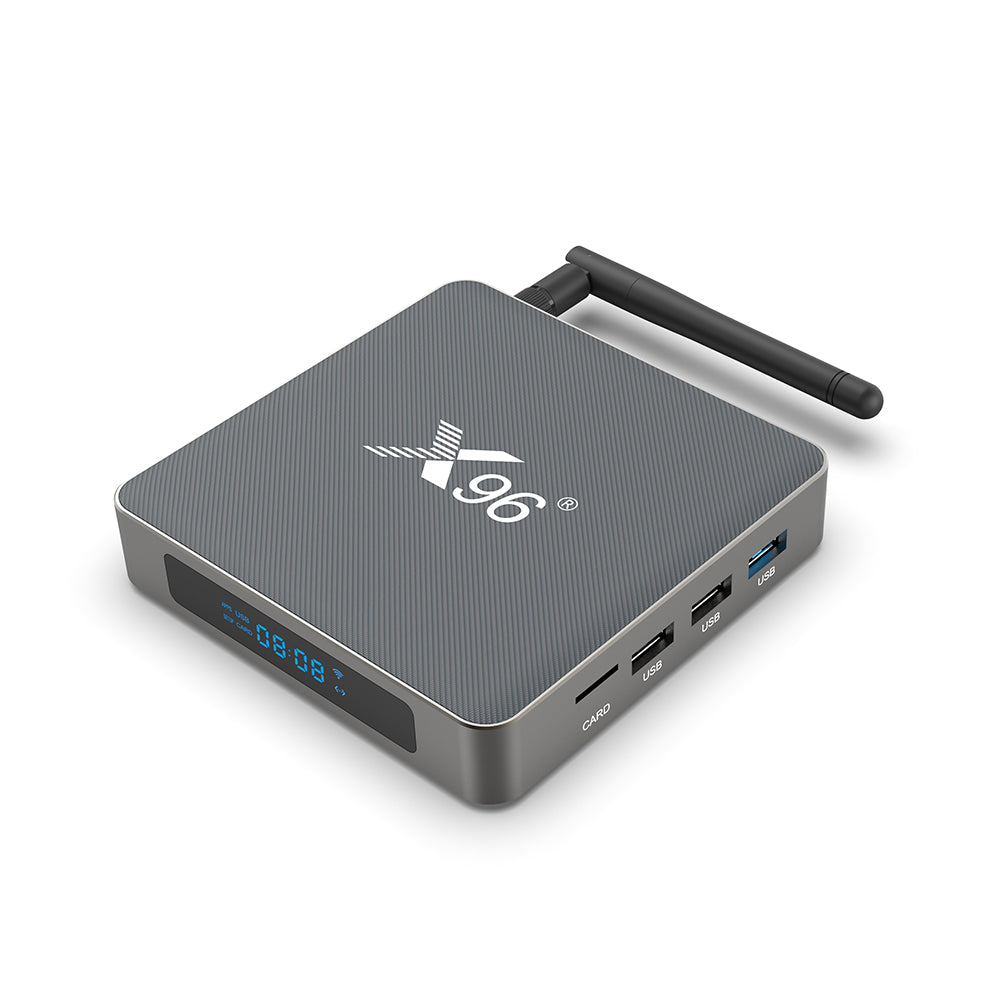

X96 X6 is an Octa Core Android TV Box based on Rockchip RK3566 chip.
Processor and Performance: X96 X6 uses Rockchip RK3566 processor, which is a powerful eight-core chip with ARM Cortex-A55 architecture, providing excellent processing performance and graphics processing capabilities.
Operating System: The TV box runs Android operating system, providing users with a rich selection of applications and games, and supports various streaming services such as Netflix, YouTube, etc.
Video and Image Quality: X96 X6 supports 4K resolution and HDR (High Dynamic Range) technology, which can provide clearer and more realistic video and image experience. It also supports a variety of audio and video formats such as H.265, VP9, etc.
Storage and Memory: The product is usually equipped with a large capacity of storage space and running memory so that users can store a large amount of applications, media files and other data.
Connectivity and Expandability: X96 X6 has a variety of connection options, including HDMI output, USB port, Ethernet interface and Wi-Fi connection, enabling users to connect to a variety of external devices and networks.
User Interface and Remote Control: The product typically features an intuitive, easy-to-use user interface and a remote control for easy navigation and operation.
Basic parameters | ||||

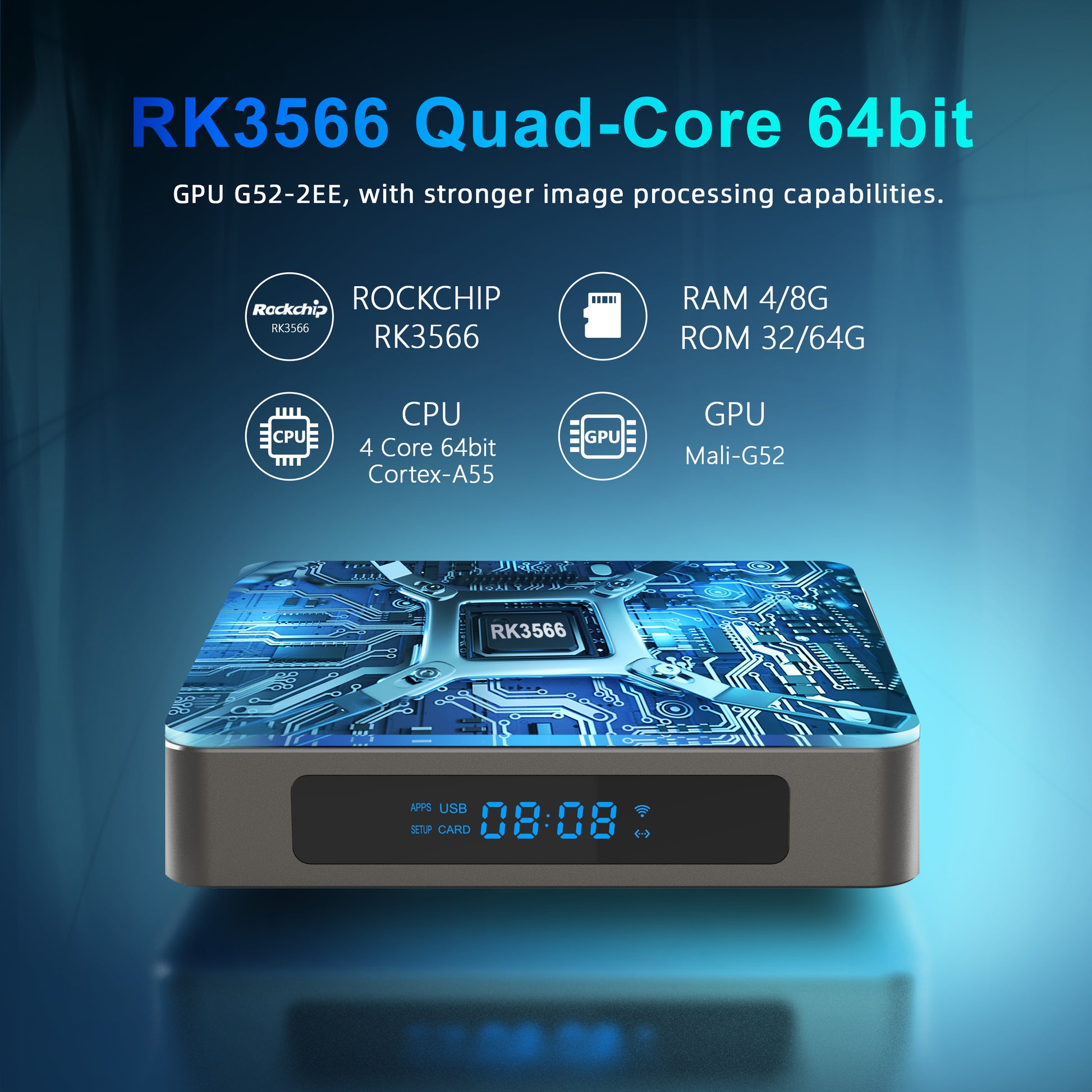

CPU | Chipset | RK3566 | ||
Architecture | Quad Core ARM Cortex A55 | |||
GPU | Chipset | Mali-G52 1-Core-2EE | ||
Architecture | OpenGL ES 1.1/2.0/3.2,OpenCL 2.0,Vulkan 1.1 support | |||
NPU | Neural network acceleration engine with processing performance up to 0.8 TOPS | |||
RAM | Capacity | 8GB (2/4/8GB Optional) | ||
ROM | Capacity | 64GB (16/32/64/128GB Optional) | ||
External storage | USB Storage Devices | Supported | ||
Micro SD card | Supported | |||
Software | ||||
Operating system | OS Version | Android 11 | ||
Language | Multi-Language | |||
Multimedia | Video | * Video Decoder | ||
H.265 HEVC/MVC Main10 Profile yuv420@L5.1 up to 4096x2304@60fps | ||||
H.264 AVC/MVC Main10 Profile yuv400/yuv420/yuv422/@L5.1 up to 4096x2304@60fps | ||||
VP9 Profile0/2 yuv420@L5.1 up to 4096x2304@60fps | ||||
VP8 verision2,up to 1920x1088@60fps | ||||
VC1 Simple Profile@low, medium, high levels, Main Profile@low, medium, high levels, Advanced Profile@level0~3,up to 1920x1088@60fps | ||||
MPEG-4 Simple Profile@L0~6,Advanced Simple Profile@L0~5,up to 1920x1088@60fps | ||||
MPEG-2 Main Profile, low, medium and high levels, up to 1920x1088@60fps | ||||
MPEG-1 Main Profile, low, medium and high levels, up to 1920x1088@60fps | ||||
H.263 Profile0,levels 10-70,up to 720x576@60fps | ||||
* Video Encoder | ||||
H.264/AVC BP/MP/HP@level4.2,up to 1920x1080@100fps | ||||
H.265/HEVC MP@level4.1, up to 1920x1080@100fps (4096x4096@10fps with TILE) | ||||
Support YUV/RGB video source with rotation and mirror | ||||
Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
Image | HD JPEG、BMP、GIF、PNG、TIF | |||
Network service | ||||
Wi-Fi | Type | Support WiFi IEEE 802.11 b / g / n / ac | ||
Frequency | Support 2.4G and 5G | |||
Antenna Type | Two external antennas | |||
Bluetooth | Bluetooth | Support BT4.X | ||

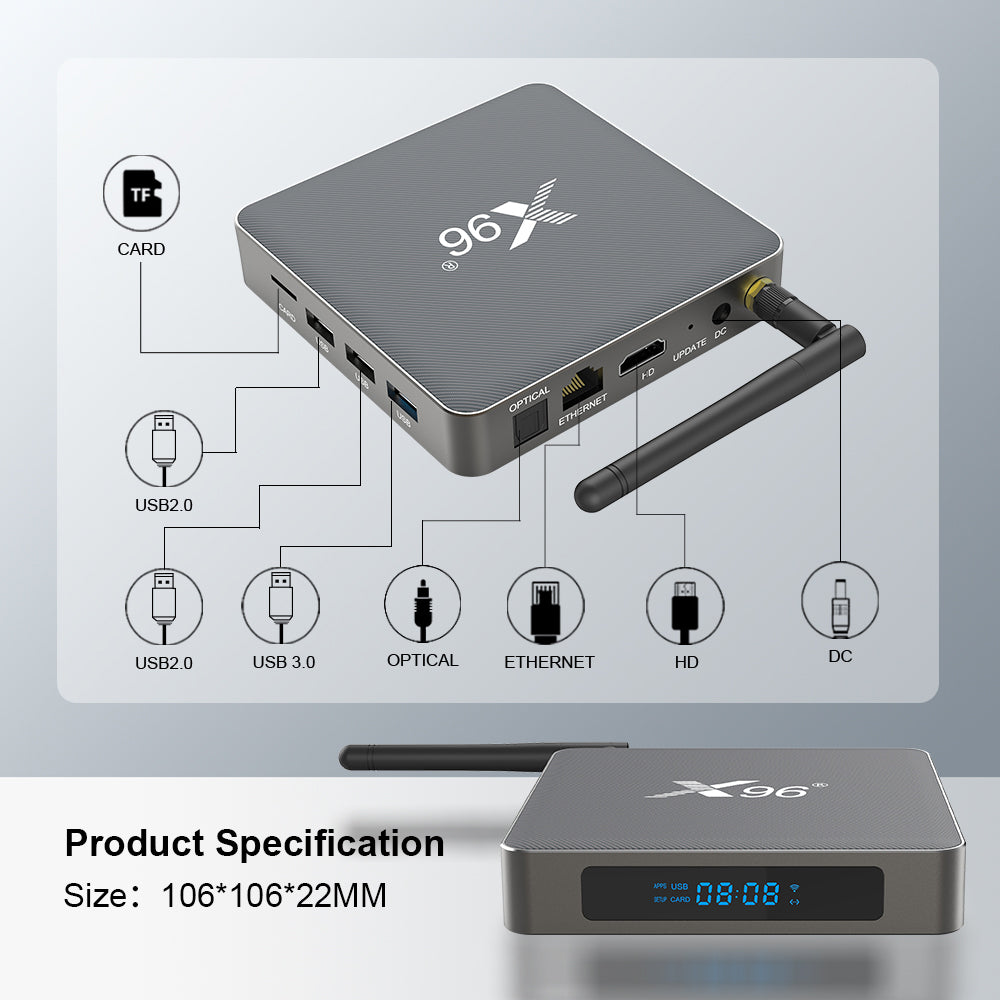

Interface | ||||
Charge | DC connector | DC IN(5V/2A) | ||
Video output | HDMI | 4K*2K UHD Output, HDMI 1.4/2.0 | ||
IR Reciver | 3.5mm Earphone jack | Remote Reciver Connect | ||
Micro SD | External memory | Support | ||

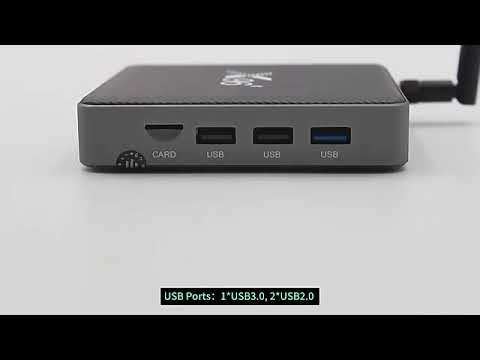

USB port | USB host | 1* USB3.0 2* USB2.0 normal type | ||
Ethernet | Ethernet | 1000M Ethernet | ||
Appearance | ||||

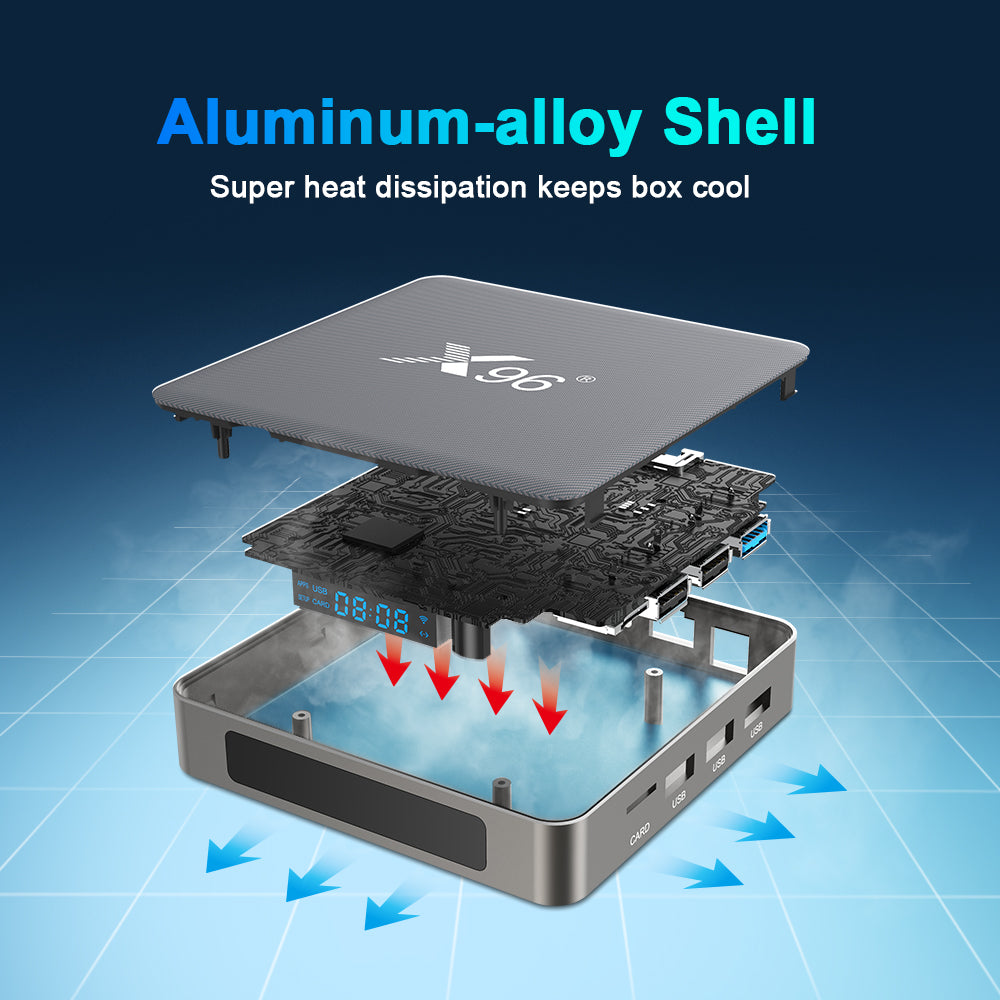

Body Material | Plastic | |||
Color | Black | |||
Size | 105*105*20(mm) | |||
Weight | / | |||
Cerifications(For Unit) | ||||
Standard | CE | / | ||
RoHS | / | |||
Others | Optional | / | ||

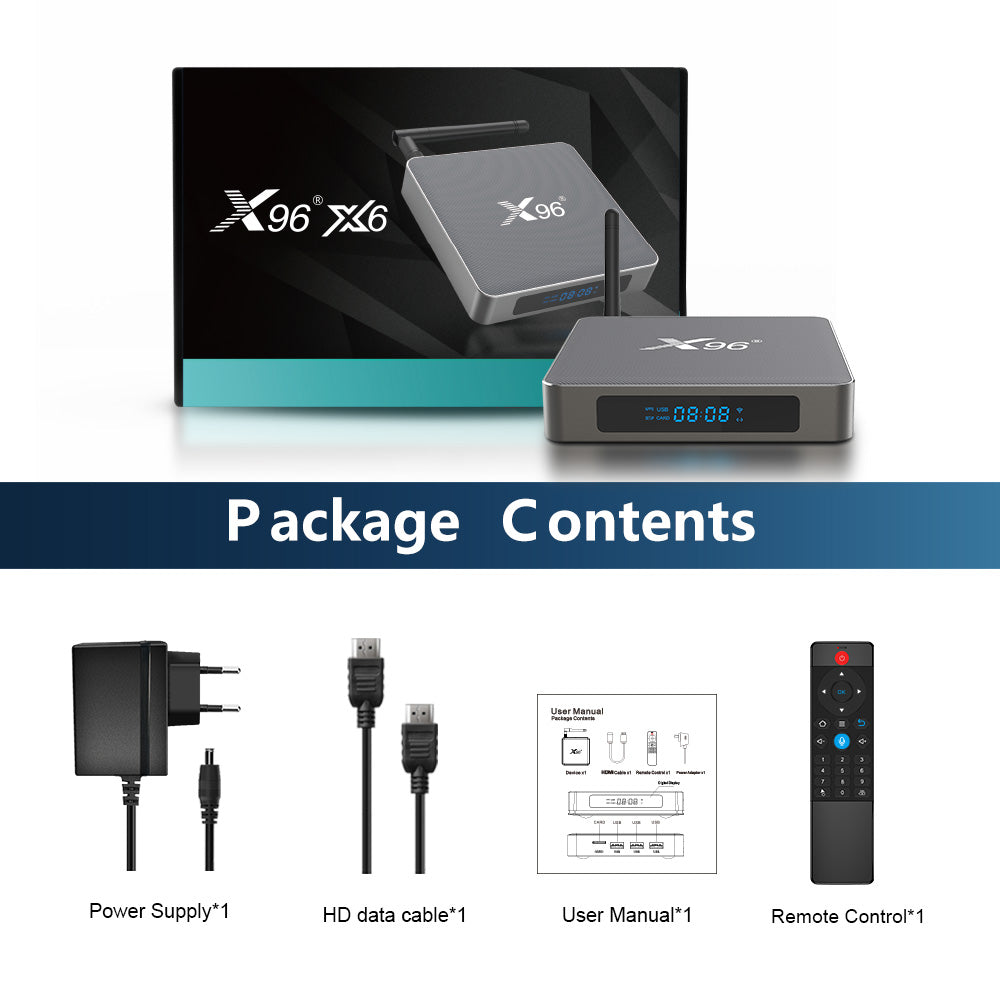

Package contents | Shipping Info | |||
User manual | *1 | Gift Box Dimension(mm) | 205*140*50(mm) | |
Gift Box | *1 | Carton Size(mm) | 420*270*305 (mm) | |
Remote control | *1 | Qty Per Carton(pcs) | 20 | |
HDMI external cable | *1 | Gift Box.G.W(gs) | 0.48Kg | |
Power adapter | *1 | Export carton (G.W.)(kgs) | 9.5Kg |
