X96 TV Box

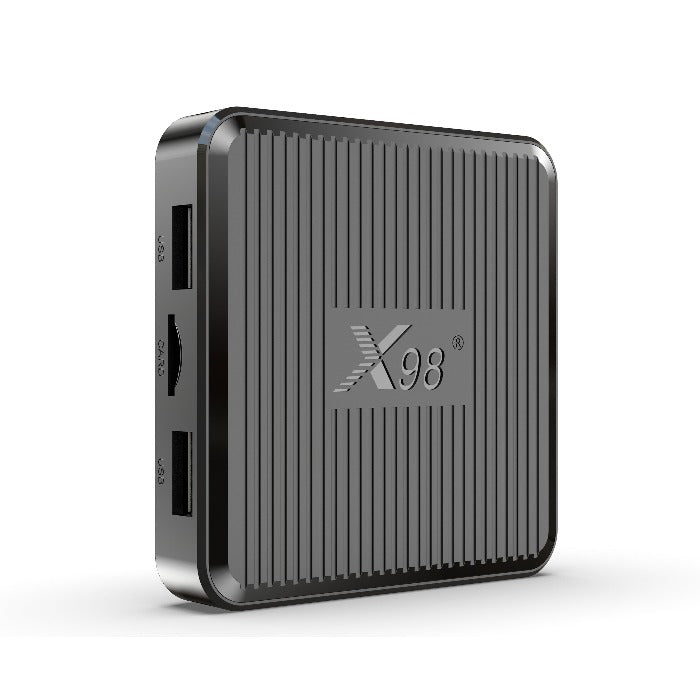

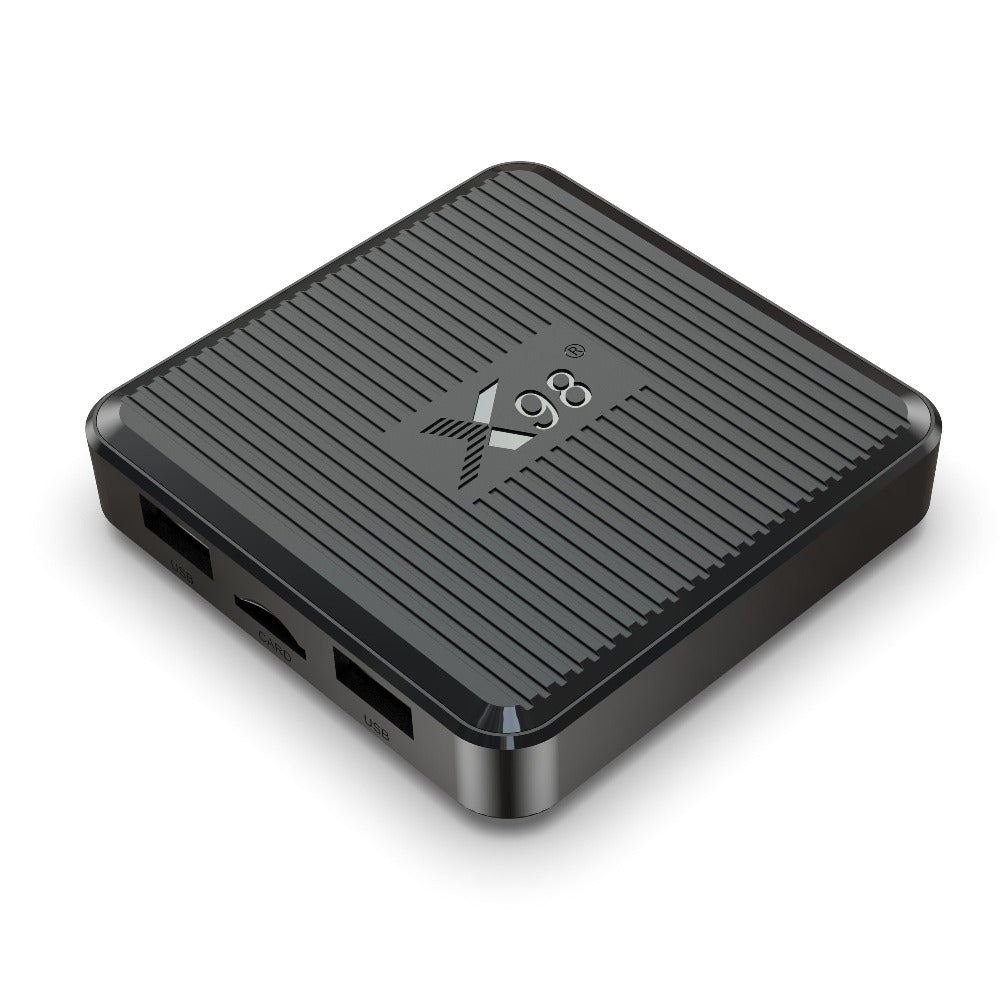

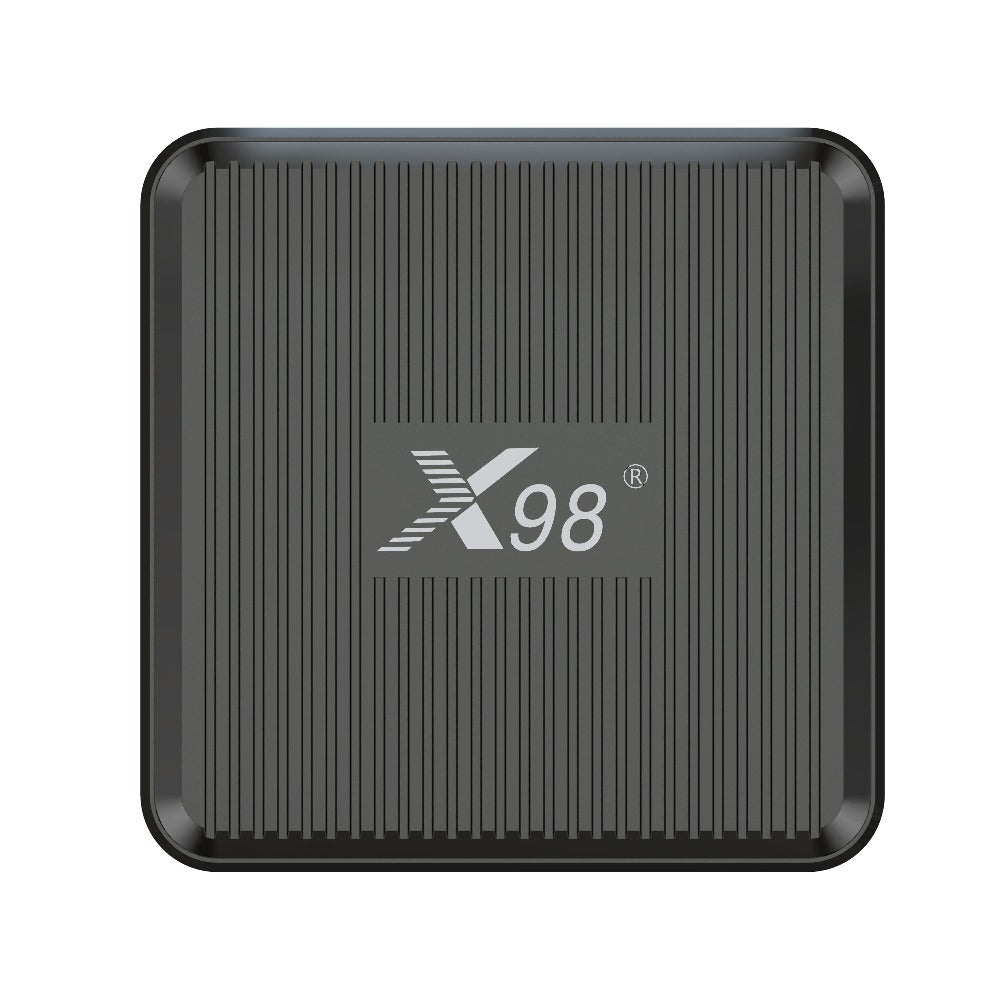

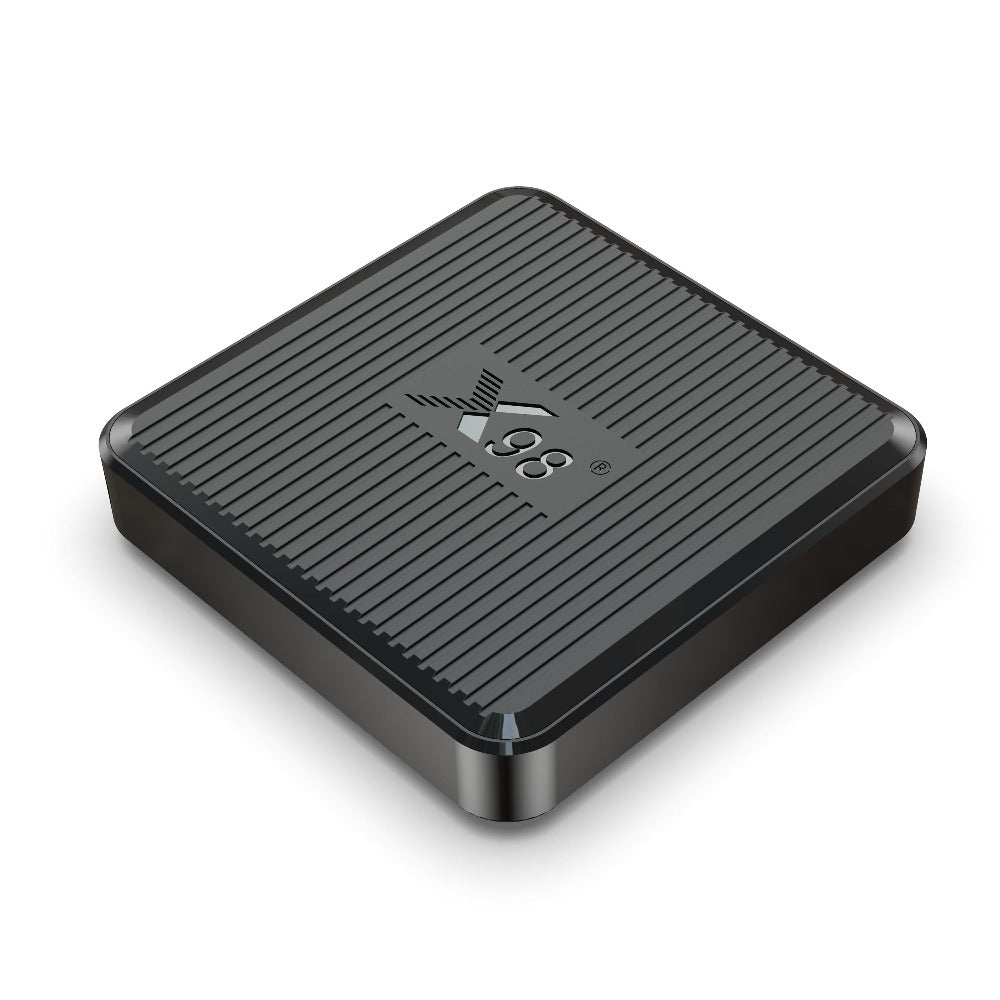

X98Q Amlogic S905W2 Quad Core 4K Dual WiFi Android TV Box Digital Signage Player
X98Q Amlogic S905W2 Quad Core 4K Dual WiFi Android TV Box Digital Signage Player
Product Description
Our product is designed and manufactured entirely in-house, with all functions and services being customizable to meet your specific needs. Our factory is located in Shenzhen and we welcome you to visit us!
X98Q Model Advantages
- The latest Amlogic S905W2 chip
- HDR10+ and 4K*2K@60 fps video output
- AV1 8K video decoding
- Android 11.0 operating system
- 2.4G&5G dual-band Wi-Fi
| Basic parameters X98Q TV BOX | ||||
| CPU | Chipset | S905W2 | ||
| Architecture | Quad Core ARM Cortex A35 | |||
| GPU | Chipset | Mali-G31 MP2 | ||
| Architecture | OpenGL ES 1.1/2.0/3.2，OpenCL 2.0，Vulkan 1.1 support | |||
| RAM | Capacity | 2GB (1/2GB Optional) | ||
| ROM | Capacity | 16GB (8/16GB Optional) | ||
| External storage | USB Storage Devices | Supported | ||
| Micro SD card | Supported | |||
| Software | ||||
| Operating system | OS Version | Android 11 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Video Decoder: | ||
| AV1 MP-10@L5.1 up to 4Kx2K@60fps | ||||
| VP9 Profile-2 up to 4Kx2K@60fps | ||||
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | ||||
| H.264 AVC HP@L5.1 up to 4Kx2K@30fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Multiple language and multiple format sub-title video support | ||||
| Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | ||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Option Support WiFi: IEEE 802.11 b / g / n or IEEE 802.11 a/b/g/n/ac | ||
| Frequency | Option:2.4G &5G | |||
| Antenna Type | Inside antennas | |||
| Bluetooth | Bluetooth | Option | ||
| Interface | ||||
| Charge | DC connector | DC IN(5V/2A) | ||
| Video output | HDMI | 4K*2K UHD Output, HDMI 2.1 | ||
| Micro SD | External memory | Support | ||
| USB port | USB host | 2*USB 2.0 | ||
| Ethernet | Ethernet | 100M Ethernet | ||
| Appearance | ||||
| Body Material | Plastic | |||
| Color | Black | |||
| Size | 77X77X16(mm) | |||
| Weight | 0.090Kg | |||
| Cerifications(For Unit) | ||||
| Standard | CE | / | ||
| RoHS | / | |||
| Others | Optional | / | ||
| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 155x100x55mm | |
| Gift Box | *1 | Carton Size(mm) | 570x315x172MM | |
| Remote control | *1 | Qty Per Carton(pcs) | 40PCS | |
| HD external cable | *1 | Gift Box.G.W(gs) | 0.298Kg | |
| Power adapter | *1 | Export carton (G.W.)(kgs) | 12.9Kg | |
