X96 TV Box
X96Q Android 10 TV Box Allwinner H313 Quad Core
X96Q Android 10 TV Box Allwinner H313 Quad Core

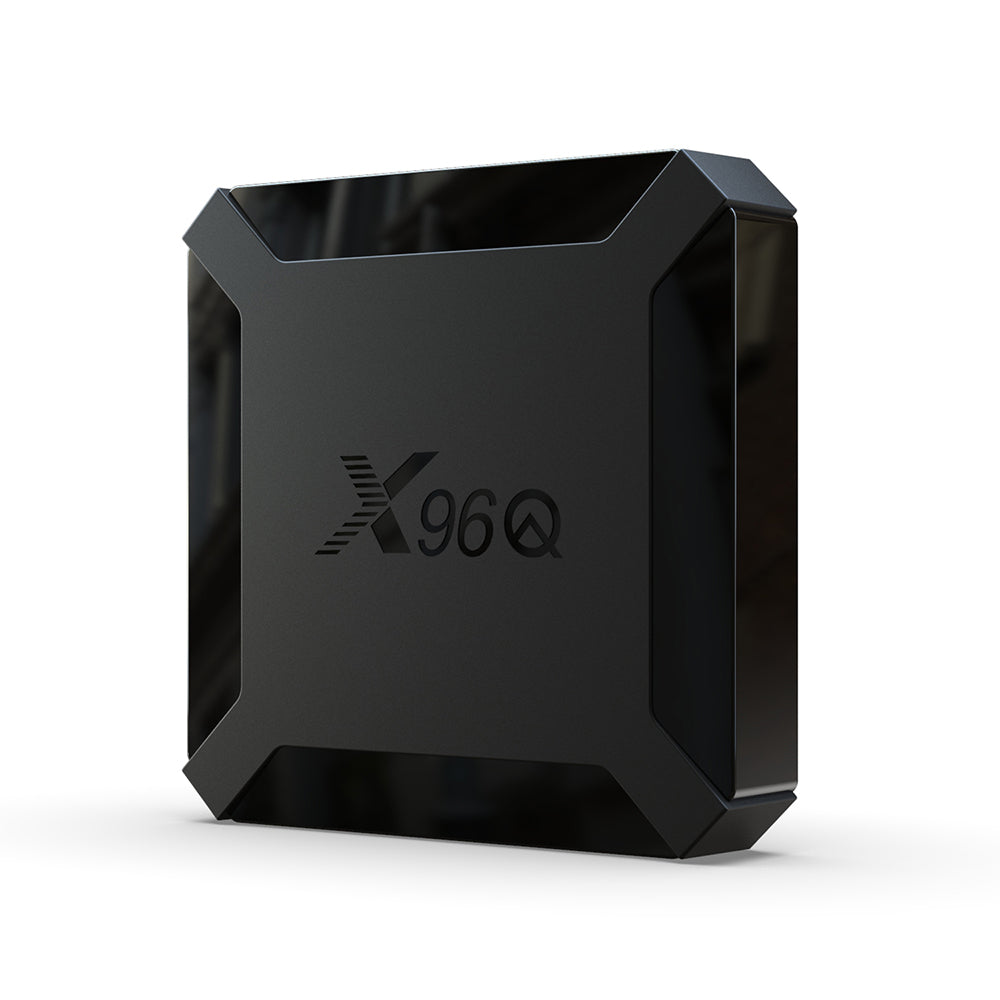

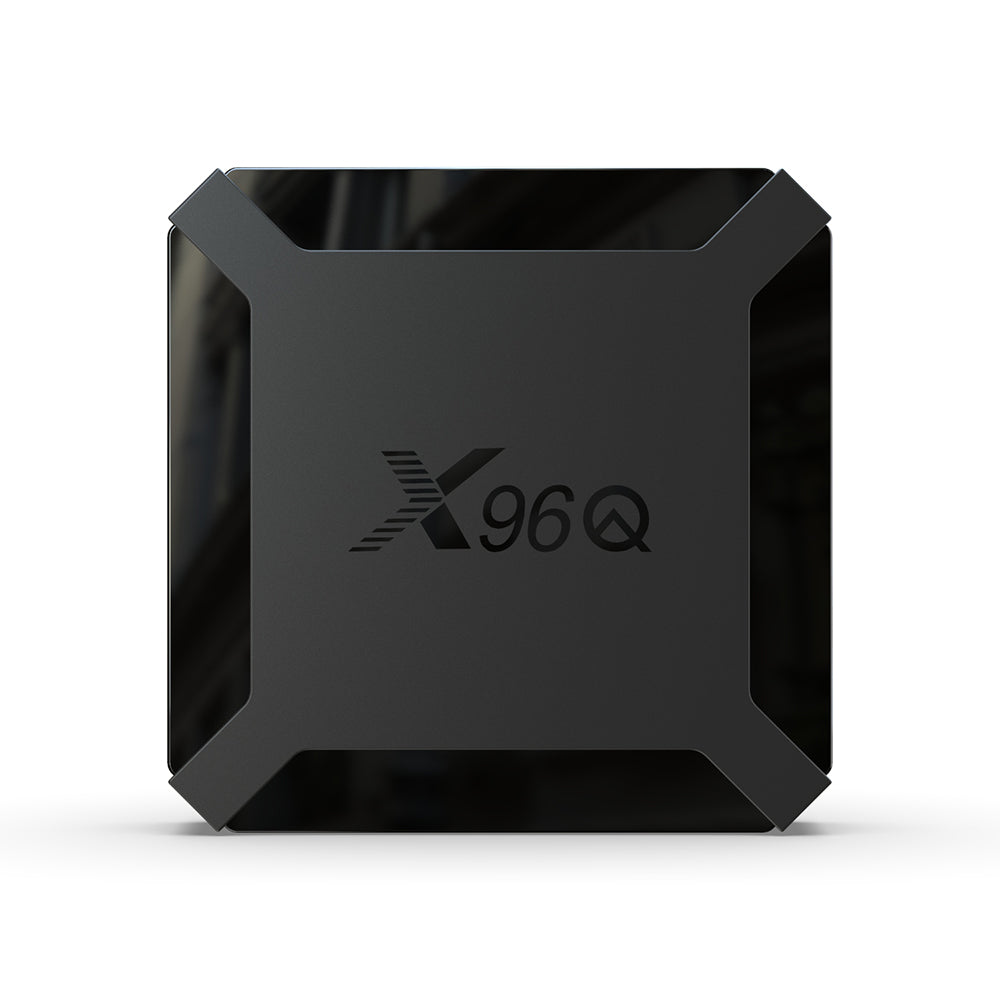

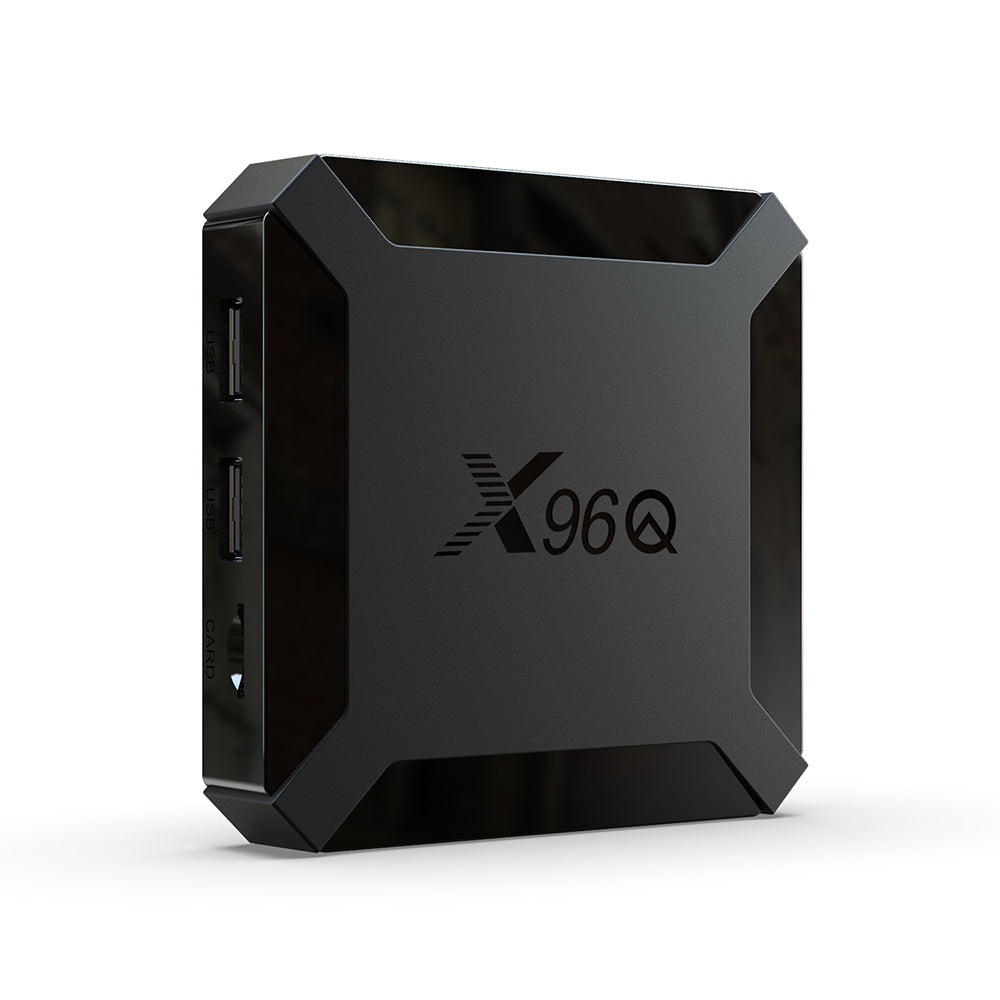

X96Q is an Android 10 TV Box equipped with Allwinner H313 quad-core processor. Here is a brief introduction about the product:
Processor and performance: X96Q uses Allwinner H313 processor, which is a quad-core chip that provides basic processing performance and is suitable for general media playback and daily application use.
Operating system: The set-top box runs Android 10 operating system, providing users with a smooth interface and easy-to-use operation experience. Android 10 provides better system stability and function support.
Video and image quality: X96Q supports HD video playback and provides adaptive adjustment functions to adapt to different monitors and TVs. It can achieve basic video and image output, but may not support more advanced technologies and resolutions.
Storage and memory: The product is usually equipped with moderate storage space and running memory to accommodate your applications, media files and other data. The specific capacity may vary depending on different configurations.

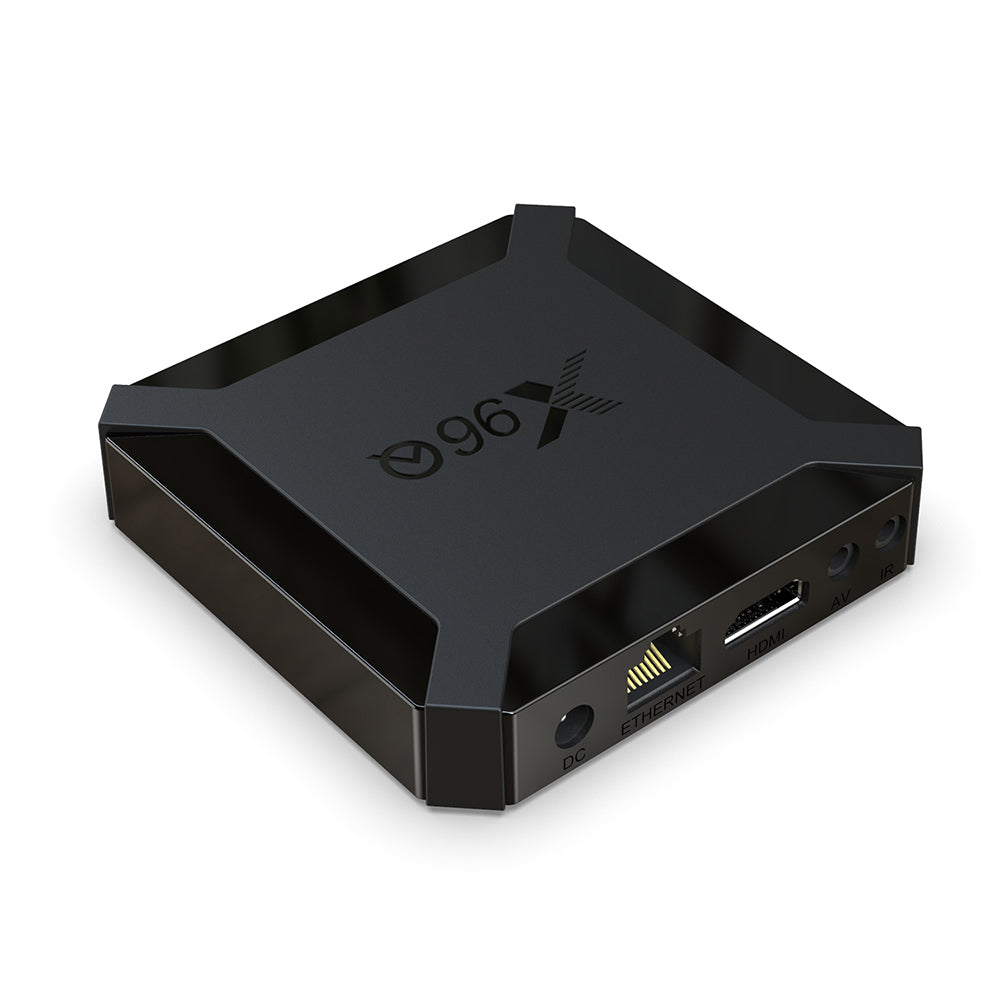

Connectivity and expandability: X96Q has basic connectivity options, including HDMI output, USB port, Ethernet interface and Wi-Fi connection, which facilitates your connection with external devices and networks.

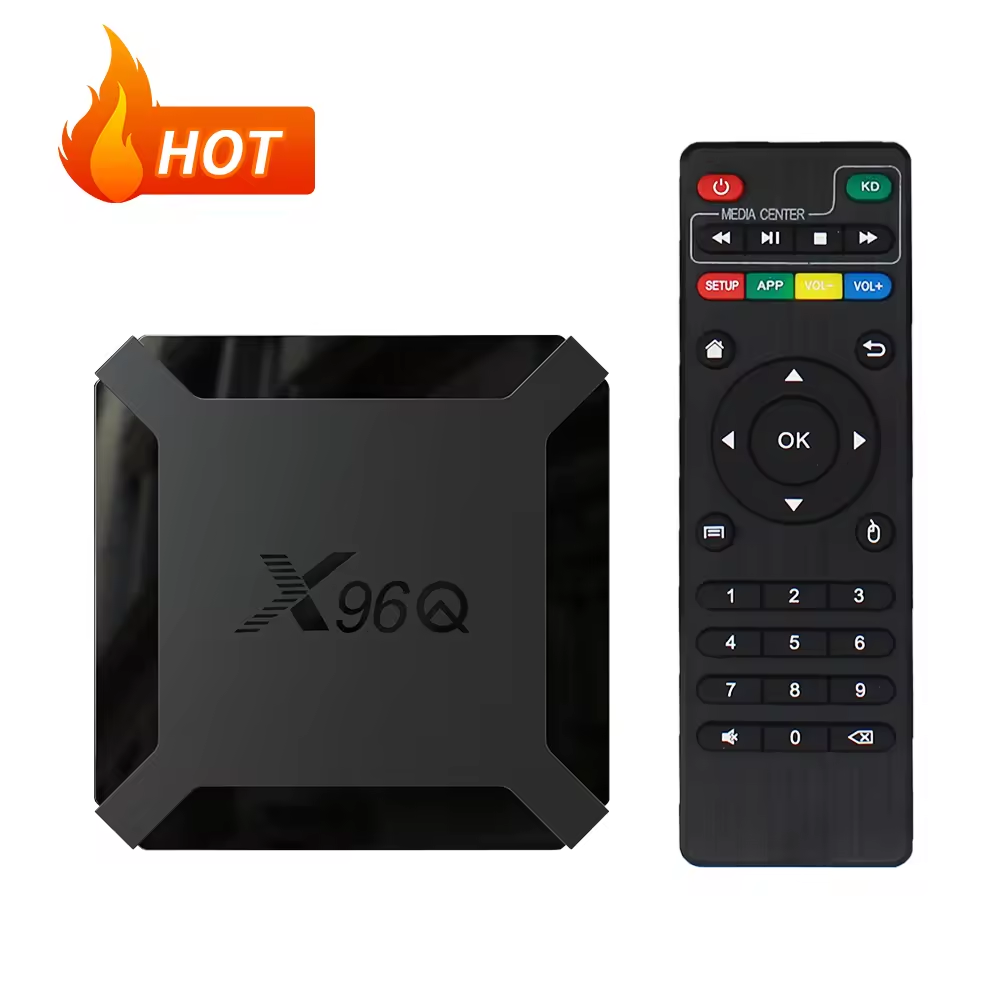

User interface and remote control: Set-top boxes usually provide a user-friendly interface and come with a remote control that allows you to easily navigate and control.
Just a cheap set-top box? There are also suitable prices, stable product systems, and good after-sales support!
X96Q is an entry-level TV Box, suitable for general media playback and basic application use. If you have special needs for advanced features and higher performance, you may need to consider higher-end models or brands. Before purchasing, it is recommended that you consult the relevant product documentation or contact our X96Q TV BOX manufacturer for further understanding.
X96Q (H313) |
||||||||
CPU | Allwinner H313 Quad Core ARM Cortex A53 | |||||||

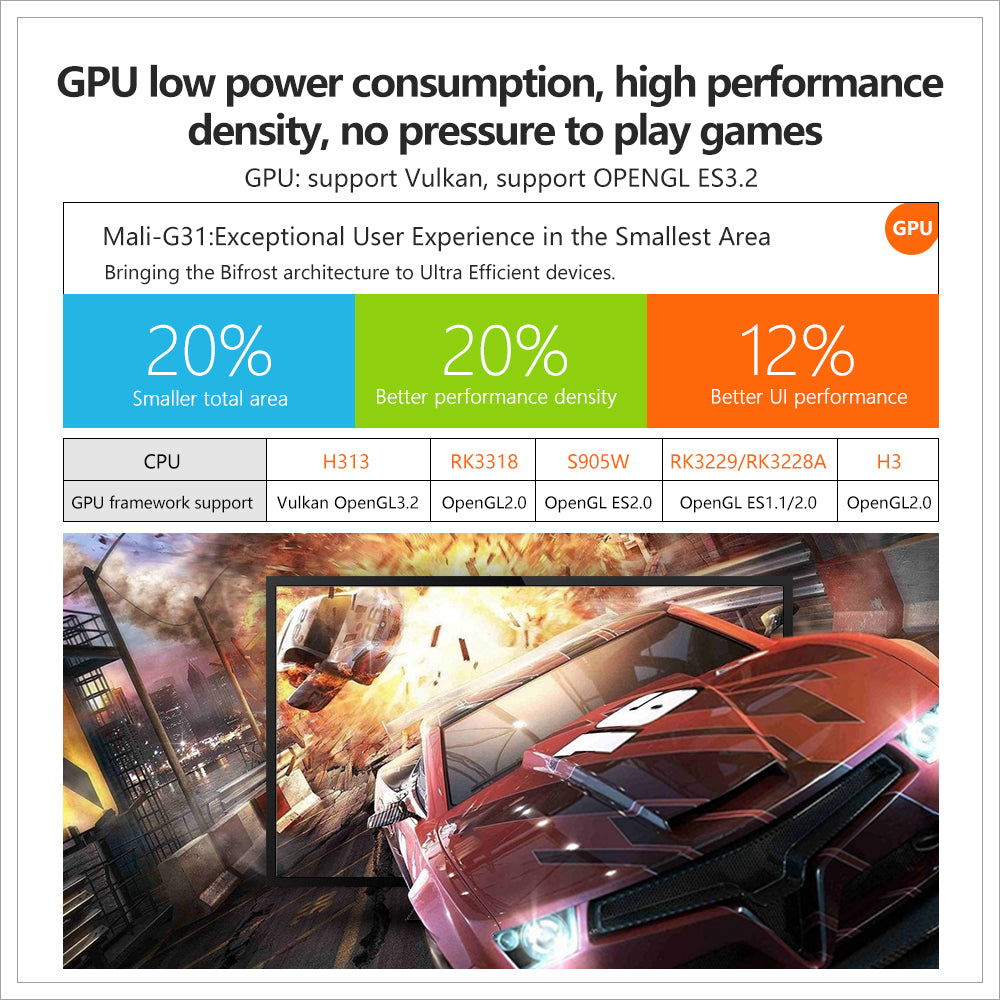

GPU | G31 OPenGL3.2 | |||||||
Memory | DDR3:1GB (Option: 2GB) | |||||||
Flash | eMMC:8GB (Option:16GB ) | |||||||
WiFi | IEEE 802.11 b/g/n | |||||||
Moudle | Plastic : Black Color | |||||||
I/O | 1*HDMI | 4K*2K UHD Output, HDMI 2.0A | ||||||
1*AV OUT | 480i/576i standard definition output | |||||||
2*USB | 1* USB Host Port ,1*USB Device | |||||||
1*IR Reciver | Remote Reciver Connect | |||||||
1*RJ45 | Ethernet Interface | |||||||
1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |||||||
Power | DC 5V/2A;LED indicator,Working :Blue; Standby:Red | |||||||
Software | ||||||||
OS | Android 10.0 | |||||||
Video | Allwinner Video Engine (AVE) with dedicated hardware decoders and encoders Support multi-video decoder up to 4K@60fps Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding Video/Picture Decoding - VP9 Profile-2 up to 4K@30fps - H.265 Main10@L5.1 up to 4K@60fps - AVS2 JiZhun 10bit Profile up to 4K@60fps - H.264 BP/MP/HP@L4.2 up to 4K@30fps - H.263 BP up to 1080P@60fps - MPEG-4 SP/ASP@L5 up to 1080P@60fps - MPEG-2 MP/HL up to 1080P@60fps - MPEG-1 MP/HL up to 1080P@60fps - Xvid up to 1080P@60fps - Sorenson Spark up to 1080P@60fps - VP8 up to 1080P@60fps - AVS/AVS+ JiZhun Profile up to 1080P@60fps - WMV9/VC1 SP/MP/AP up to 1080P@60fps - JPEG HFIF file format up to 45M PPS - Multiple language and multiple format sub-title video support - MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) - Supports JPEG thumbnail, scaling, rotation and transition effects - Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats |
|||||||
Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output • Two DAC channels • Supports 1 audio output interface (differential LINEOUTP/N or single-end LINEOUTL/LINEOUTR) • One Audio HUB, supporting internal mixing function • Embedded 3 I2S/PCM (I2S0 for extended audio codec, I2S2 for BT, I2S3 for digital power amplifier) • Supports Left-justified, Right-justified, Standard I2S mode, PCM mode, and TDM mode • I2S mode supports 8 channels, and 32-bit/192kbit sample rate • I2S and TDM modes support maximum 16 channels, and 32-bit/96kbit sample rate • One OWA OUT interface, supporting 16-/20-/24-bit inputs and outputs • Integrated digital microphone(DMIC), supporting maximum 8 digital PDM microphones |
|||||||
Image | HD JPEG、BMP、GIF、PNG、TIF | |||||||
Language | English French German Spanish Italian etc multilateral languages | |||||||
Appliactions | ||||||||
Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |||||||
Apps | Apps download freely form android market、amazon app store etc. | |||||||
Medium | Local Media playback,Support HDD, U Disck ,TF Card . | |||||||
Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |||||||
Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |
|||||||
Packing | Product dimension | 88.4*88.4*18.6(mm) | ||||||
Qty per unit packing | 1pcs | |||||||
Unit packing: (LxWxH) | 170*115*55(mm) | |||||||
Unit packing (G.W.) | 0.35Kg | |||||||
Qty per export carton | 20PCS | |||||||
Export carton (WxHxL) | 370*290*240 (mm) | |||||||
Export carton (G.W.) | 7.5Kg | |||||||
Accessories : | ||||||||
1、HDMI cable *1 | ||||||||
2、IR Remote *1 | ||||||||
3、User Manual *1 | ||||||||
4、Package box *1 | ||||||||
5、Power adapter *1 |
