X96 X9 Amlogic S922X Hexa Core 4K TV Box S922X Android Digital Signage Player
X96 X9 Amlogic S922X Hexa Core 4K TV Box S922X Android Digital Signage Player

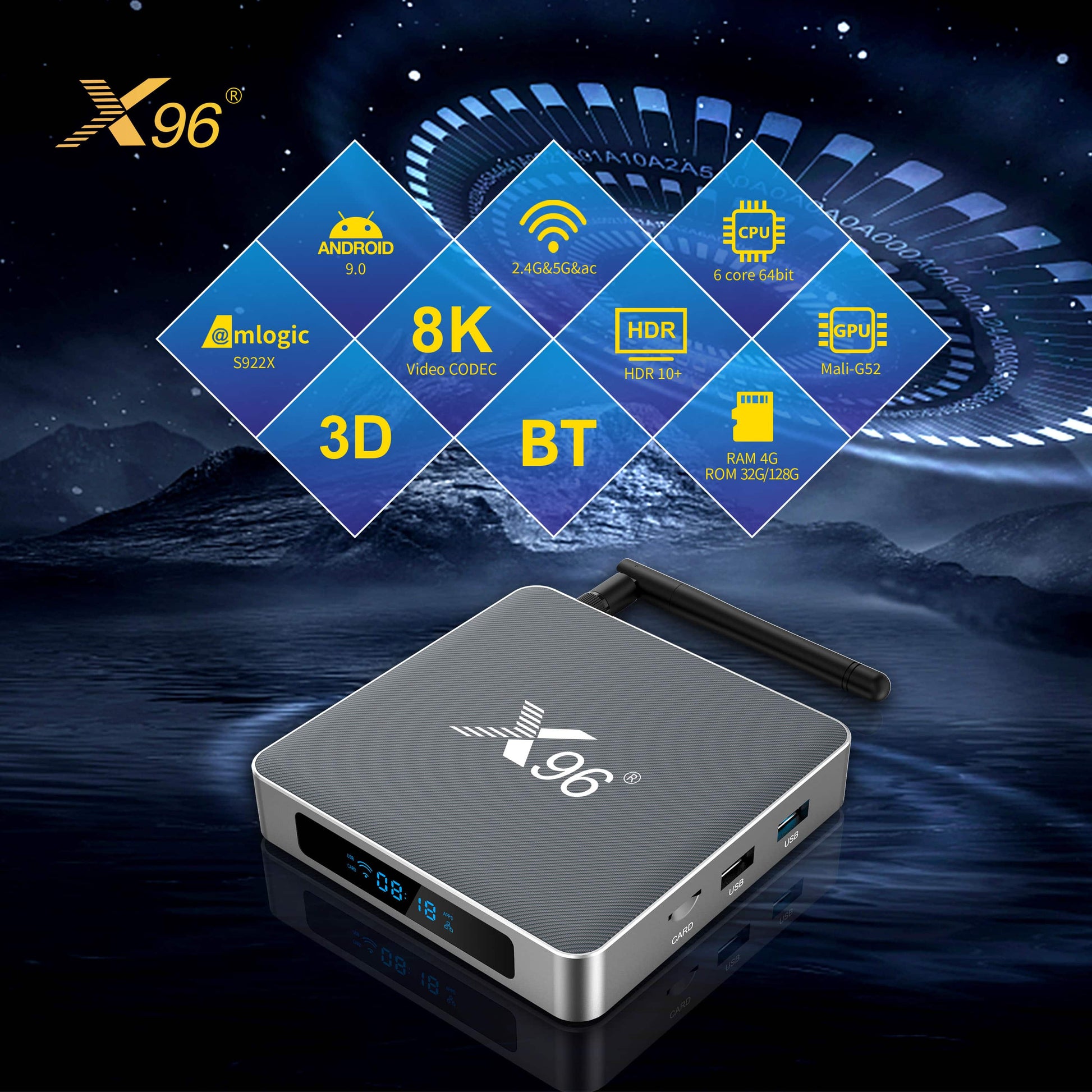

X96 X9 is a Hexa Core 4K TV Box based on the Amlogic S922X chip.
Processor and performance: X96 X9 uses the Amlogic S922X processor, which is a six-core chip consisting of four Cortex-A73 high-performance cores and two Cortex-A53 low-power cores. This configuration provides powerful processing power and efficient energy management.
Video and image quality: The TV box supports 4K resolution and HDR technology, which can present clearer and more realistic video and image effects. It also supports a variety of video and audio formats, such as H.265, VP9, etc.
Operating system and applications: X96 X9 usually runs the Android operating system, providing users with a wide range of applications and games.
Storage and memory: The product is usually equipped with a large capacity of storage space and running memory, enabling users to store and play a large number of media files and applications.

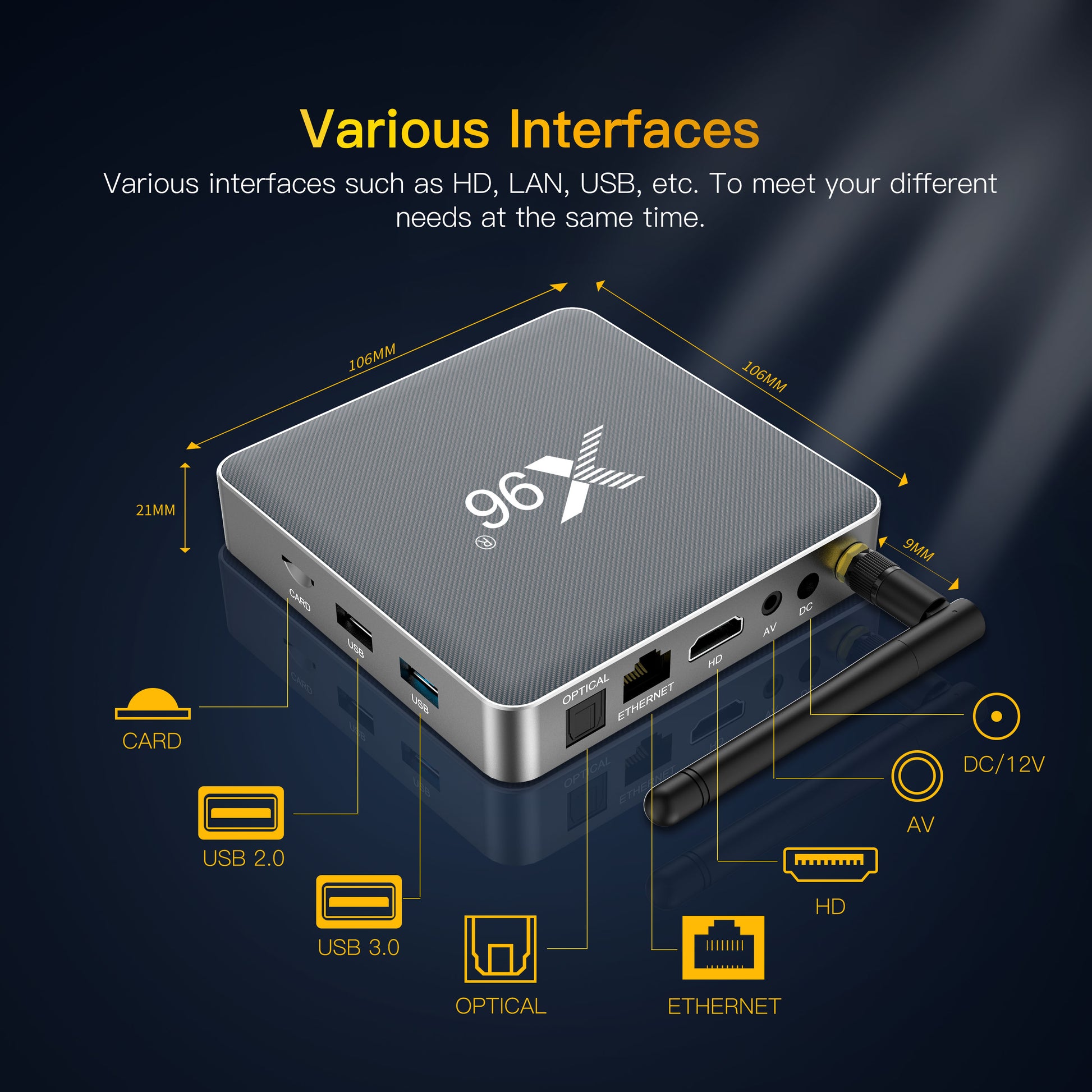

Connectivity and expandability: X96 X9 has a variety of connection options, including HDMI output, USB port, Ethernet interface and Wi-Fi connection, which is convenient for users to connect to external devices and networks. In addition, it may also support Bluetooth connectivity and SD card expansion.
User Interface and Remote Control: This TV box usually comes with a user-friendly interface and comes with a remote control that allows users to navigate and operate it easily.
| Product Model | X96 X9 | Project Status | M.P | |
| CPU | Chipset | S922X | ||
| Architecture | Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU | |||
| 3D Graphics Processing Unit | GPU | ARM Mali-G52MP6(6EE) GPU | ||
|
Graphical Program |
OpenGL ES 3.2, Vulkan 1.0 and OpenCL 2.0 support | |||
| RAM | Capacity | 4GB (LPDDR4) | ||
| ROM | Capacity | 32GB (16GB/64GB/128GB optional) | ||
| External storage | USB Storage Devices | Supported | ||
| Micro SD card | Supported | |||
| Software | ||||
| Operating system | OS Version | Android 9.0 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Support 8K@30fps Video decoding | ||
| VP9 Profile-2 up to 4Kx2K@60fps | ||||
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps AVS2-P2 Profile up to 4Kx2K@60fps | ||||
| H.264 AVC HP@L5.1 up to 4Kx2K@30fps | ||||
| H.264 MVC up to 1080P@60fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| RealVideo 8/9/10 up to 1080P@60fps | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso,*.mp4, *.rm and *.jpg file formats | ||||
| Audio | Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing | |||
| Image | Independent JPEG and H.265/H.264 encoder with configurable performance/bit-rate JPEG image encoding H.265/H.264 video encoding up to 1080P@60fps with low latency | |||
| Network service | ||||
| Wi-Fi | Type | Support WiFi IEEE 802.11 a/ b / g / n / ac | ||
| Frequency | Support 2.4G and 5G | |||
| Bluetooth | Bluetooth | Support BT 4.X | ||
| Interface | ||||
| Charge | DC connector | DC IN(12V/2A) | ||
| Video output | HDMI | HDMI 2.1 4K*2K@60 max resolution output | ||
| CVBS | Support PAL/NTSC | |||
| Audio | / | 1* SPDIF | ||
| Micro SD | External memory | 1* TF card | ||
| USB port | External memory | 1* USB3.0 | ||
| 1* USB2.0 | ||||
| Ethernet | Ethernet | 1000M（100M optional） | ||
| Others | RTC | optional | ||

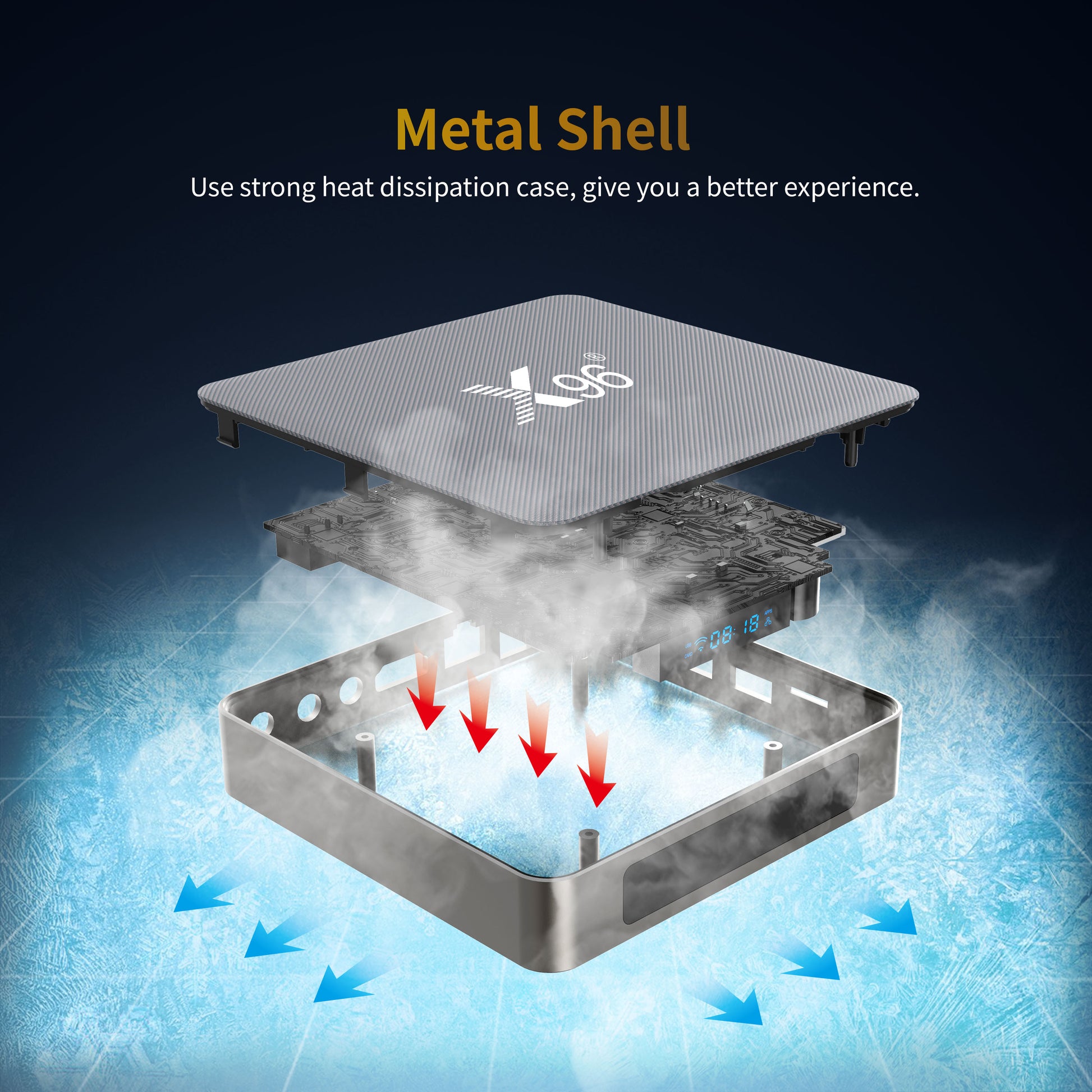

| Body Material | ABS，cloth, Aluminum alloy | |||
| Color | Ash | |||
| Size | 106*106*21(mm) | |||
| Weight | 0.194Kg | |||
| Cerifications(For Unit) | ||||
| Standard | CE | / | ||
| RoHS | / | |||
| Others | Optional | / | ||

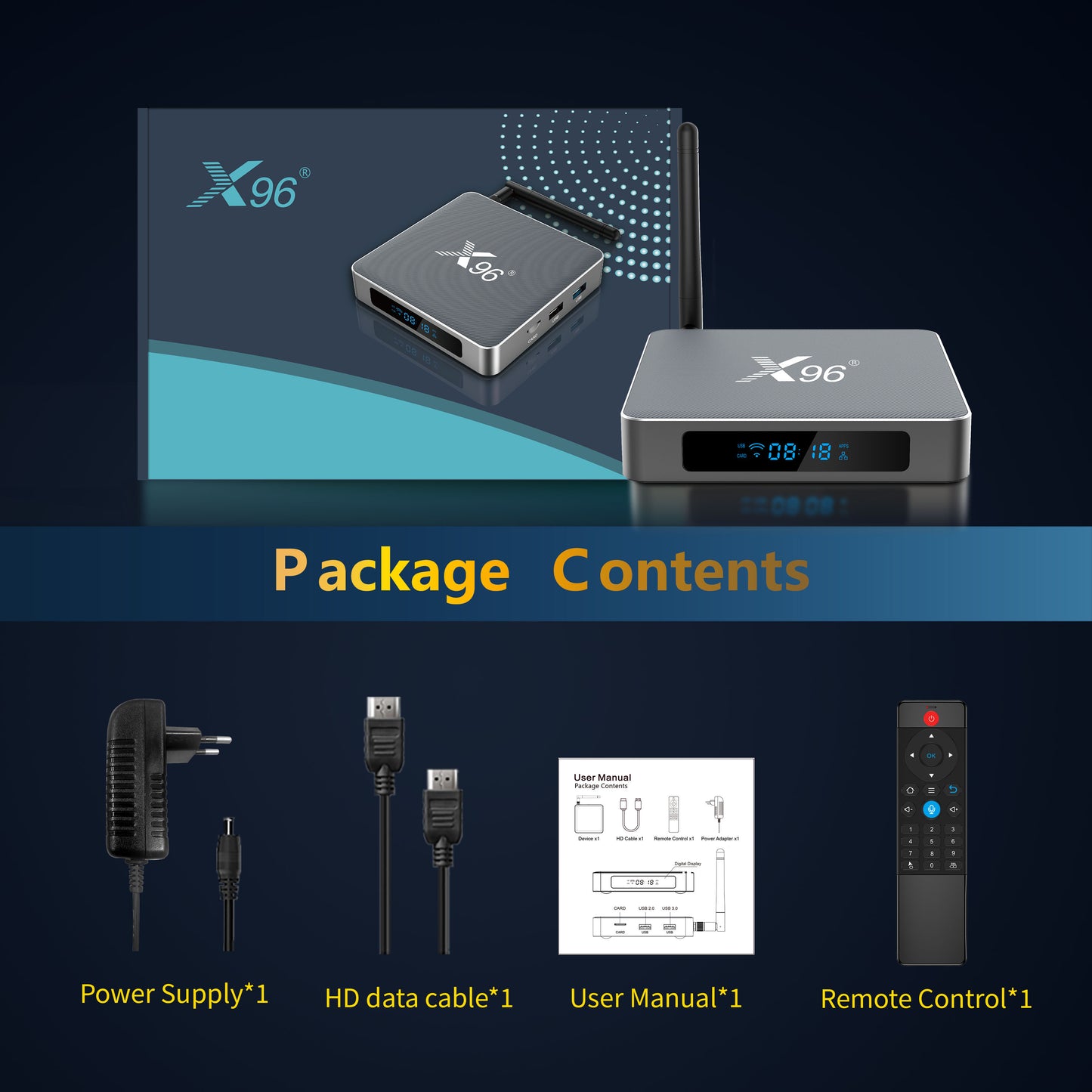

| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 205*140*50(mm) | |
| Gift Box | *1 | Carton Size(mm) | 420*270*305 (mm） | |
| Remote control | *1 | Qty Per Carton(pcs) | 20 | |
| HD external cable | *1 | Gift Box.G.W(gs) | 0.474KG | |
| Power adapter | *1 | Export carton (G.W.)(kgs) | 10.48KG | |
