Amlogic S905X2 Quad Core

Amlogic tv box OTT S905X2 MEDIA PLAYER

The Amlogic S905X2 Quad Core is a processor chip designed by Amlogic for use in smart TVs, set-top boxes, and other embedded devices. Here's an overview of the key features and specifications:

  1. Quad-Core Processor Architecture: The Amlogic S905X2 integrates four Cortex-A53 cores, utilizing Arm's 64-bit architecture to provide ample computing power and performance.

  2. Advanced Graphics Processing Capability: This chip is equipped with the Arm Mali-G31 MP2 GPU, delivering excellent graphics processing performance to support HD video playback and smooth gaming experiences.

  3. 4K Video Decoding and Encoding: The Amlogic S905X2 is capable of hardware decoding and encoding of 4K resolution videos, including popular video codec standards such as H.265 and VP9, enabling high-quality video playback and streaming experiences.

  4. HDR and HDMI 2.1 Support: The chip supports High Dynamic Range (HDR) video, offering richer, more vivid colors and contrast. Additionally, it supports HDMI 2.1 interface for higher video transmission bandwidth and faster refresh rates.

  5. Multiple Peripheral Interfaces: The Amlogic S905X2 integrates various peripheral interfaces, including USB, Ethernet, SPI NOR Flash, SD Card, eMMC, and HDMI, providing a rich set of expansion options for devices.

Overall, the Amlogic S905X2 Quad Core processor offers a balance of performance, graphics capabilities, and video processing features suitable for a wide range of multimedia and embedded applications.



SoC Amlogic S905X2 Amlogic S905X3
CPU 4x Arm Cortex-A53 @ 1.80 GHz 4x Arm Cortex-A55 @ 1.91 GHz
Neural Network Accelerator N/A

Optional 1.2 TOPS NNA

GPU Mali-G31 MP2 with OpenGL ES 3.2, Vulkan 1.0, and OpenCL 2.0
Always-on MCU Cortex-M3 & Cortex-M4 (Optional ) Cortex-M3 & Cortex-M4
DDR DDR3-2133 /DDR3L-2133 /
DDR4-2666 /LPDDR3-2133 /LPDDR4-3200 SDRAM up to 4G
DDR3-2133 /DDR3L-2133 /
DDR4-3200 /LPDDR3-2133 /
LPDDR4-3200 SDRAM up to 4G
Video
Decoding
H.265, VP9, AVS2 up to 4Kp75 10bit H.264 4Kp30
HDMI Tx HDMI 2.1  HDCP2.2
HDR HLG/HDR10/ 10+  Dolby vison,TCH PRIME
Process 12nm
Mic Input 8 x PDM
USB3.0/PCIE USB3.0/PCI-E V2 (multiplexed)
Package 14 x 14mm BGA
Embedded Temperature Sensor Yes
Filter

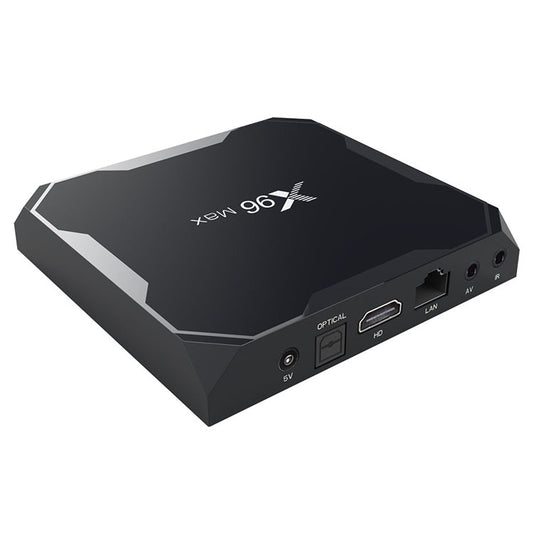

X96 MAX Amlogic S905X2 TV Box Quad Core Media Player
