Rockchip RK3588 Octa-core TV Box ARM Processor 8K Android Set Top Box RK3588 Digital Signage Player
Rockchip RK3588 Octa-core TV Box ARM Processor 8K Android Set Top Box RK3588 Digital Signage Player

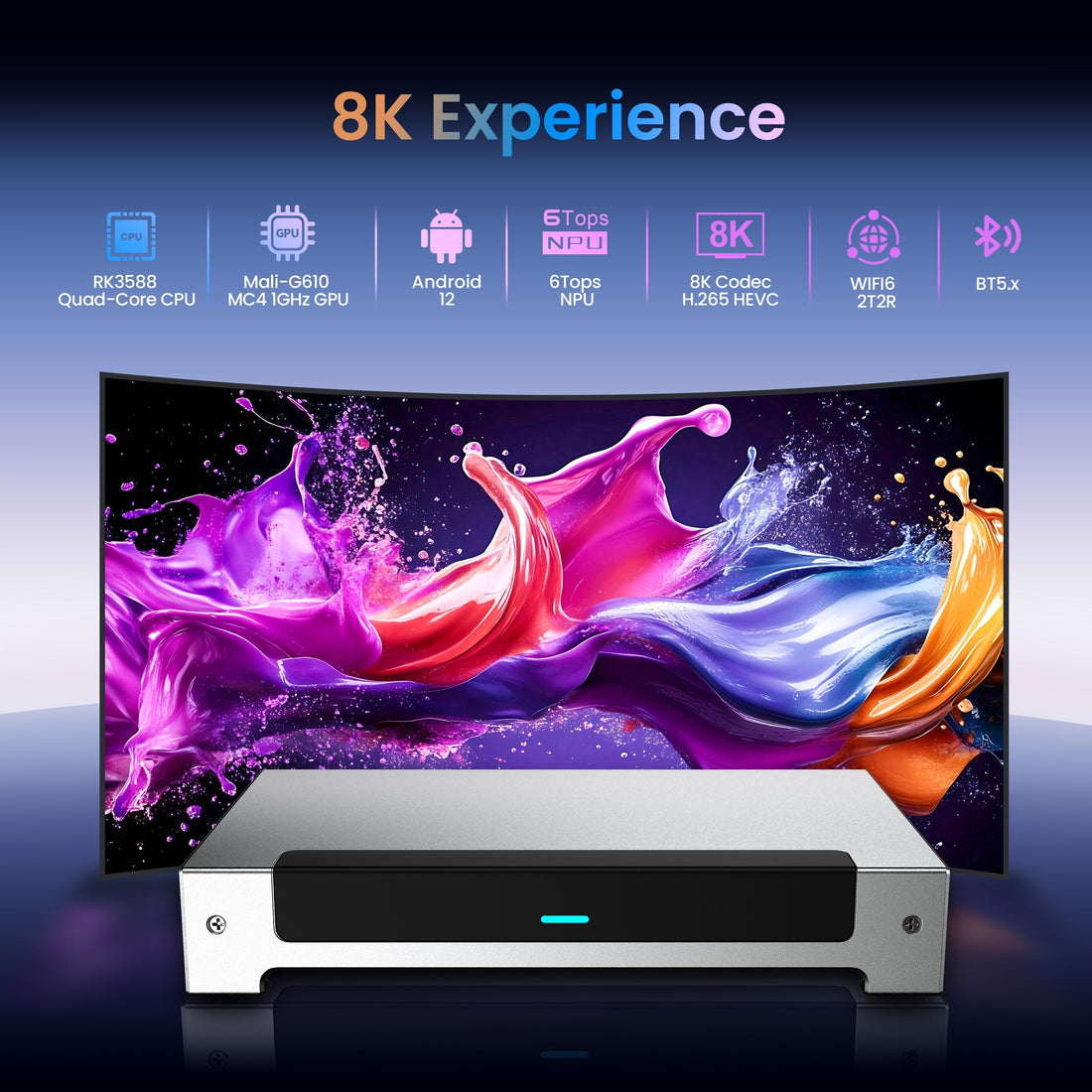

This RK3588 Octa-core TV Box is a high-performance Android 12 media center built around the powerful Rockchip RK3588 octa-core processor. It combines four high-performance Cortex-A76 cores with four power-efficient Cortex-A55 cores, ensuring smooth operation for demanding tasks and everyday use.
It is backed by ample 8GB or 16GB of RAM and generous 64GB or 128GB of internal storage, which can be expanded via USB 3.0 drives or a Micro SD card for extensive media libraries.
A key highlight is its ARM Mali-G610 MP4 GPU, which provides robust graphics capabilities. This, coupled with support for modern APIs like Vulkan 1.2, empowers the device to deliver an exceptional 8K video playback experience and handle high-end gaming. With multi-language support and extensive connectivity options, this device positions itself as a premium and versatile entertainment hub for home theater enthusiasts.
RK3588 TV Box Basic Configuration Table
| Basic parameters | ||||
| CPU | Chipset | RK3588 | ||
| Architecture | Quad Core ARM Cortex A76 and Quad Core ARM Cortex A55 MPCore processor | |||
| GPU | Chipset | ARM Mali-G610 MP4 | ||
| Architecture | OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2 | |||
| RAM | Capacity | Option :8/16GB | ||
| ROM | Capacity | Option :64/128GB | ||
| External storage | USB Storage Devices | USB3.0 Support | ||
| Micro SD card | Support | |||
| Software | ||||
| Operating system | OS Version | Android 12 | ||
| Language | Multi-Language | |||
| Video/Picture Decoding | H.264 AVC/MVC MP-10 L6.0: 8K@30fps | |||
| VP9 Profile-2 up to 8K@60fps | ||||
| H.265 HEVC/MVC MP-10 L6.1: 8K@60fps | ||||
| AVS2 Profile0/2 L10.2.6: 8K@60fps | ||||
| AV1 MP-10@L5.1 up to 4K@60fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Image Engine | Supports HDR10/HDR HLG | |||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support IEEE 802.11a/b/g/n/ac/ax（WIFI 6） | ||
| Frequency | Support 2.4G and 5G | |||
| Antenna Type | two internal antennas | |||
| Bluetooth | Bluetooth | Support BT5.X | ||
| Interface | ||||
| Micro SD | External memory | Support | ||
| Charge | Charging Port | USB Type-C Adapter (12V/2A ) | ||
| Video output | HDMI TX(OUTPUT) | HDMI2.1, 8K@60Hz | ||
| Video input | HDMI RX(INPUT) | HDMI2.0, 4K@60 Hz | ||
| Key | Key Function | Power/Maskrom/Reset/Recovery | ||
| USB port | USB Host&Data | USB3.0 Type-A | ||
| Data | USB2.0 Type-A | |||
| DisplayPort Fuction | USB Type-C | |||
| Ethernet | Ethernet | 1000Mbps Gigabit Ethernet | ||
| Appearance | ||||
| Body Material | ABS | |||
| Color | Silvery&Black | |||
| Size | 158x101x28(mm) | |||
| Weight | 0.241Kg | |||
| Cerifications(For Unit) | ||||
| Standard | ||||
| Others | Optional | |||
| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 183×136×80mm | |
| Gift Box | *1 | Carton Size(mm) | 420*380*290mm | |
| GamePad | *1 | Qty Per Carton(pcs) | 20pcs | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | ||
| Power adapter | *1 | Export carton (G.W.)(kgs) | ||
RK3588 Octa-core TV Box Application
Based on the high-end specifications provided, this TV Box is suitable for a wide range of applications:
1. Premium Home Entertainment & Home Theater:
This is the primary use case. Its powerful RK3588 chip and Mali-G610 GPU, with support for 8K resolution and modern codecs, make it an ideal centerpiece for a high-end home theater setup. It can effortlessly handle streaming 4K HDR and 8K content from services like Netflix, Disney+, and YouTube, providing a stunning visual experience on modern 4K/8K televisions.
2. Hardcore Gaming:
With its high-performance CPU, capable GPU, and generous RAM options (up to 16GB), this device goes beyond casual gaming. Support for advanced graphics APIs like Vulkan 1.2 ensures it can run demanding Android games and cloud gaming services (GeForce Now, Xbox Cloud Gaming) with high frame rates and detail, offering a console-like experience.
3. Tech-Savvy Users and Tinkerers:
The robust hardware platform (USB 3.0, ample storage options, powerful processor) makes it excellent for users who enjoy customization, emulation, or side-loading applications. It can easily emulate older game consoles and even some more modern systems. Its capability suggests it can also serve as a lightweight development or testing device for Android apps.
4. Business and Digital Signage:
The combination of strong processing power, 8K output, and stable Android OS makes it a competent solution for digital signage in commercial settings. It can power multiple high-resolution displays in stores, restaurants, or corporate environments, showing menus, advertisements, or information displays smoothly and reliably.
In summary, this is not a basic streaming stick. It is a high-performance Android computing device designed for enthusiasts, gamers, and anyone seeking the absolute best video and audio quality for their home entertainment system, with the power to handle demanding tasks beyond simple media playback.
RK3588 Android TV Box Product Details
Ready to experience unparalleled 8K RK3588 Octa-core TV Box powerful performance? For detailed specifications, official pricing, and to place your order, visit the official link below
Explore more and purchase now:
https://x96mini.com/products/rockchip-rk3588-ai-android-tv-box-x96-ai-box-octa-core-8k-digital-signage-player-solution
Have questions? The website also provides comprehensive support and contact information for all your inquiries.
