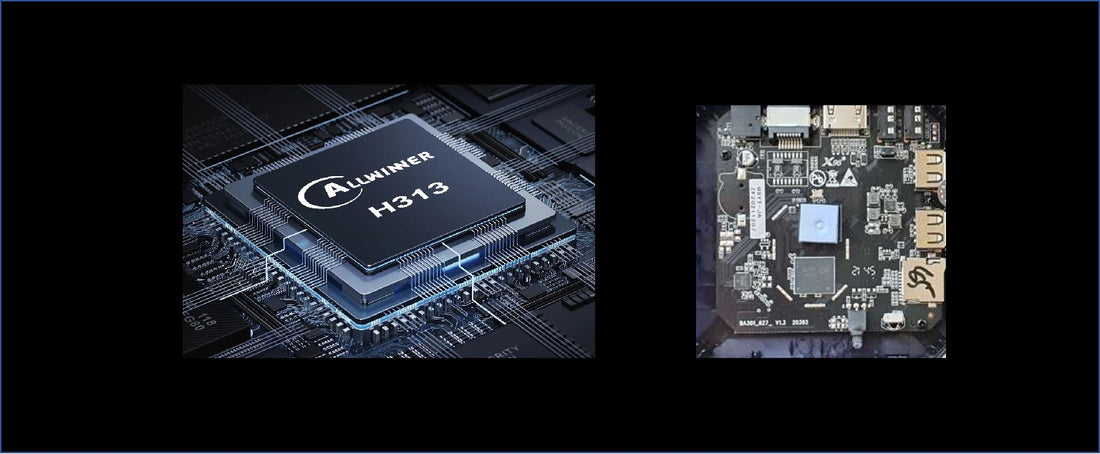

Customizable Allwinner H313 Chipset

The Allwinner H313 chipset is a versatile and highly customizable solution for a range of applications, from consumer electronics to industrial devices. Here, we delve deeper into the extensive customization options available with this chipset, providing a comprehensive guide for manufacturers looking to create tailored products.

1. H313 Hardware Customization

• Interface Configuration:

   - HDMI: The H313 supports HDMI 2.0 output, enabling up to 4K@60fps display capabilities. This makes it ideal for high-definition televisions, monitors, and projectors. The HDMI interface also supports CEC (Consumer Electronics Control), allowing users to control multiple HDMI-connected devices with a single remote.

   - USB Ports: The chipset supports multiple USB configurations, including USB 2.0 and USB 3.0 ports. This flexibility allows manufacturers to offer faster data transfer rates and better peripheral compatibility. USB OTG (On-The-Go) support further enhances the device's versatility by enabling it to act as both a host and a peripheral.

   - Ethernet: Built-in 10/100M Ethernet interface ensures stable and reliable network connections, which is crucial for high-bandwidth applications such as streaming and online gaming. For enhanced connectivity, some configurations may include support for Gigabit Ethernet.

   - Wi-Fi and Bluetooth: The chipset supports dual-band Wi-Fi (2.4GHz and 5GHz) and Bluetooth 4.2. This ensures robust wireless connectivity for various applications, from streaming media to smart home integration. Manufacturers can also opt for external antennas to enhance wireless performance.



• Storage Options:

   - eMMC Storage: The H313 supports eMMC storage capacities ranging from 8GB to 64GB or higher, catering to different user storage needs. eMMC storage offers faster read/write speeds compared to traditional SD cards, improving overall system performance.

   - SD Card Expansion: The inclusion of an SD card slot allows for easy storage expansion, accommodating users who require additional space for media files, applications, and other data. This feature is particularly useful for devices aimed at media consumption.



• Display Output:

   - 4K Resolution: The chipset supports 4K UHD resolution, delivering clearer and more detailed images. This is essential for high-end TVs and monitors, providing a premium viewing experience.

   - HDR Technology: The H313 supports HDR10 and HLG (Hybrid Log-Gamma), offering richer colors and higher dynamic range. This enhances the viewing experience by providing more vibrant and realistic images, especially in scenes with high contrast.



• Peripheral Interfaces:

   - GPIO: General Purpose Input/Output (GPIO) pins allow for the connection of various sensors and peripherals, making the H313 suitable for IoT applications.

   - I2C and SPI: These interfaces enable communication with a wide range of external devices, such as sensors, displays, and other microcontrollers.



 2. Allwinner H313 Software Customization

• Operating System:

   - Android OS: Most H313 TV boxes run on Android 10 or higher, which can be deeply customized by manufacturers. This includes adding or removing applications, modifying system settings, and integrating additional features to create a unique user experience.

   - Linux OS: For certain applications, a customized Linux OS can be used. Linux offers higher system stability and security, making it suitable for industrial applications and other scenarios where reliability is paramount.



• User Interface (UI):

   - Branded Custom UI: The chipset supports customized user interface design, allowing manufacturers to create unique UIs that align with their brand style and user experience requirements. This includes custom icons, themes, and navigation options.

   - Multi-language Support: The H313 offers support for multiple languages, facilitating the launch of international products. Manufacturers can easily add language packs to cater to different regions and markets.



• Firmware Updates:

   - OTA Updates: Over-The-Air (OTA) update functionality makes it easy for manufacturers to push software updates and security patches. This ensures that devices remain up-to-date with the latest features and security enhancements, improving user experience and device longevity.

   - Custom Update Servers: Manufacturers can set up their own update servers to control the distribution of firmware updates, providing more flexibility and control over the update process.



• Application Integration:

   - Custom Applications: Manufacturers can pre-install custom applications tailored to specific use cases, such as streaming services, educational tools, or smart home controls.

   - App Store Integration: Integration with app stores allows users to download and install additional applications, enhancing the functionality and versatility of the device.



 3. H313 Application Scenarios Customization

• Brand Partnerships:

   - Pre-installed Apps: The H313 supports partnerships with streaming service providers, game developers, and other content creators to pre-install customized applications and content. This can enhance the user experience and add value to the product.

   - Custom Content: Manufacturers can pre-install branded content such as movies, TV shows, and games, providing users with immediate access to entertainment options.



• Industry Solutions:

   - Education: Customized educational applications and content make the H313 suitable for online education and remote teaching. Features such as screen sharing, interactive whiteboards, and video conferencing can be integrated to create a comprehensive educational platform.

   - Smart Home: The H313 can be integrated with smart home devices, providing richer smart home solutions. This includes compatibility with smart assistants, home automation systems, and security devices.

   - Commercial Displays: The chipset is suitable for digital signage and advertising displays, offering high-resolution and high-brightness display effects. Features such as remote content management and scheduling can be added to enhance functionality.



• Gaming:

   - Cloud Gaming: The H313 can be optimized for cloud gaming services, providing a smooth and responsive gaming experience. This includes support for game controllers and low-latency streaming.

   - Local Gaming: Manufacturers can pre-install popular games and optimize the chipset for local gaming performance, offering users a versatile entertainment device.



 4. Security Customization with Allwinner H313

• DRM Support:

   - Widevine: The H313 supports Widevine L1/L3, ensuring the security of streaming content and meeting copyright protection requirements. This is essential for devices aimed at media consumption.

   - PlayReady: Support for Microsoft’s PlayReady DRM offers additional content protection options, making the chipset suitable for a wider range of streaming services.



• Secure Boot:

   - Hardware Encryption: The chipset supports hardware encryption to prevent unauthorized firmware from running, enhancing device security. This is crucial for protecting sensitive data and maintaining system integrity.

   - Secure Boot: Secure Boot ensures that only signed firmware can be loaded during the boot process, preventing malware attacks and unauthorized modifications.



• User Data Protection:

   - Encrypted Storage: Supports encrypted storage to protect user data from unauthorized access.

   - Privacy Controls: Manufacturers can implement privacy controls to give users more control over their data and device settings.



 5. H313 Power Management

• Energy-saving Modes:

   - Dynamic Power Management: The H313 supports dynamic power management, adjusting power consumption based on actual usage. This extends device battery life and reduces energy costs, making it suitable for portable and battery-operated devices.

   - Low Power Standby: The chipset offers a low power standby mode, reducing power consumption during periods of inactivity. This is particularly useful for devices that remain on standby for extended periods.



• Thermal Management:

   - Intelligent Thermal Control: Built-in thermal management features monitor chip temperature in real-time, automatically adjusting performance to prevent overheating. This ensures device stability and longevity, even during high-performance operation.

   - Cooling Solutions: The H313 supports customized cooling solutions such as fans and heat sinks. Manufacturers can design efficient cooling systems to maintain optimal operating temperatures, enhancing device reliability.



• Battery Management:

   - Battery Monitoring: Real-time battery monitoring features provide accurate information about battery status and health, helping to extend battery life.

   - Optimized Charging: Support for optimized charging algorithms ensures efficient and safe battery charging, reducing wear and extending battery lifespan.



 6.Summary-Custom Allwinner H313

By leveraging these extensive customization capabilities, the Allwinner H313 chipset allows manufacturers to design and develop competitive and differentiated products that cater to the diverse needs of various markets and users. Whether for consumer electronics, industrial applications, or specialized use cases, the H313 offers the flexibility and performance needed to create tailored solutions.
