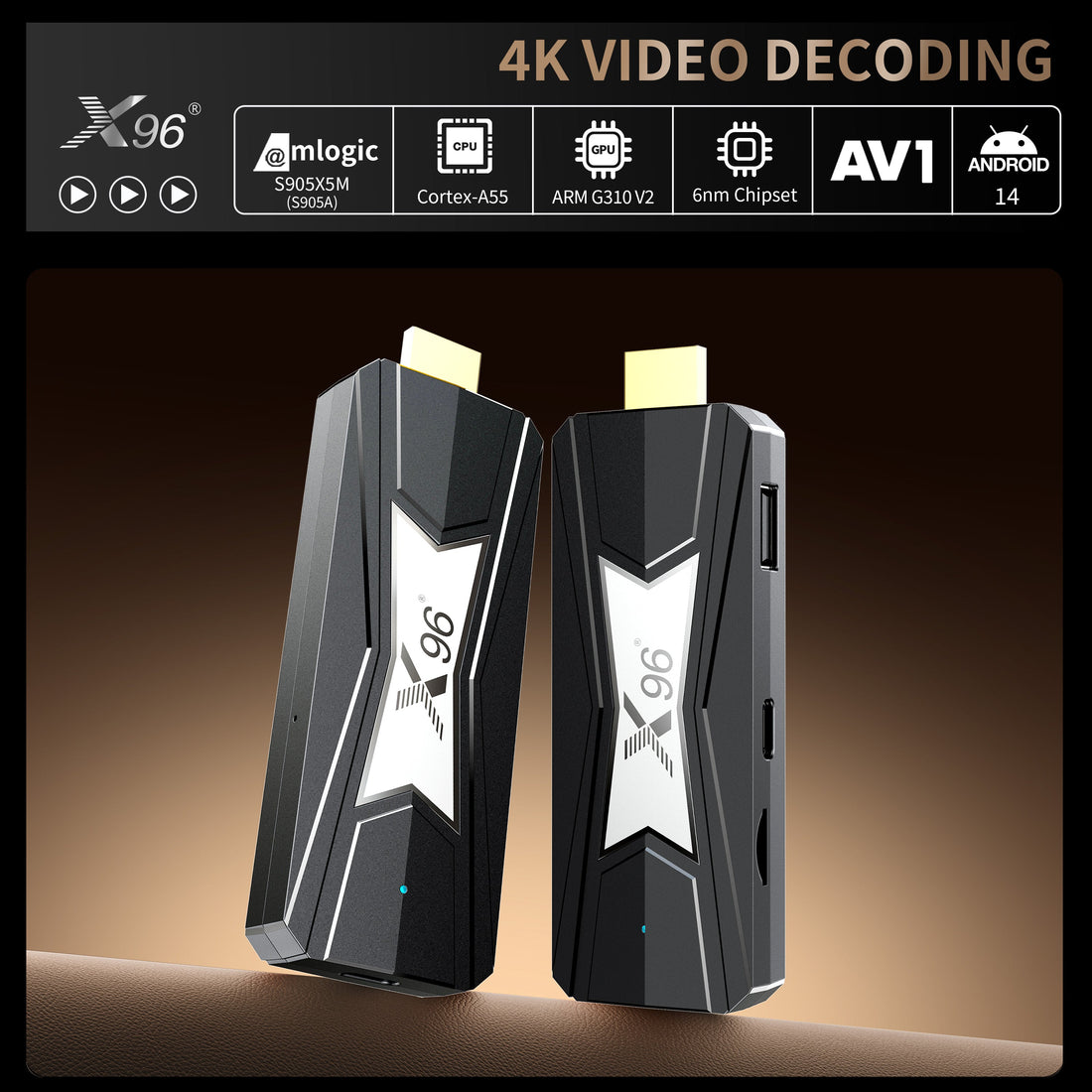

Amlogic S905X5M TV Stick Android 14 Quad Core ARM Cortex A55 X96 NEO TV Stick
Amlogic S905X5M TV Stick, the X96 NEO Quad Core ARM Cortex A55 TV Stick is engineered for efficient 4K streaming, supporting modern formats like AV1 and HDR10+. Running the latest Android 14, it provides a smooth and future-proof media experience in a compact design.
S905X5M X96 NEO TV Stick key advantages
Superior 4K Streaming: The Amlogic S905X5M chip with advanced AV1 and VP9 codec support ensures you can stream 4K HDR content efficiently from all major platforms without buffering or compatibility issues.
Modern & Smooth Experience: Running the latest Android 14, it offers a clean, up-to-date interface with access to a vast app library, ensuring a fast and user-friendly experience.
Excellent Connectivity: With dual-band Wi-Fi (2.4G/5G) and Bluetooth 5.x, it provides a stable wireless connection for streaming and pairing accessories like headphones or game controllers.
Future-Proof Visuals: Support for HDR10+ and HLG processing means you get enhanced contrast, brighter highlights, and a more vibrant color range on compatible TVs.
Compact and Versatile: Its stick form factor is incredibly portable and discreet, easily fitting behind any TV. The USB-C power and expandable storage via microSD add to its convenience.
S905X5M TV Stick Configuration Table
| Basic parameters | ||||
| CPU | Chipset | S905X5M(S905A) | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM G310 V2 | ||
| Architecture | OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | Option：2/4GB | ||
| ROM | Capacity | Option：16/32/64GB | ||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Video/Picture Decoding | AV1 MP-10@L5.1 up to 4Kx2K@60fps | |||
| VP9 Profile-2 up to 4Kx2K@60fps | ||||
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | ||||
| H.264 AVC HP@L5.1 up to 4Kx2K@30fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Image Engine | Supports HDR10+, HDR10, HLG HDR processing | |||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support IEEE 802.11 b / g / n /ac | ||
| Frequency | Support 2.4G and 5G | |||
| Bluetooth | Bluetooth | Support BT5.X | ||
| Interface | ||||
| Micro SD | External memory | Support | ||
| Charge | USB TYPE-C Port | 5V/2A | ||
| Video output | HDMI OUT | 4K@60 Hz | ||
| USB port | USB host | 1*USB2.0 Type-A | ||
| Data | 1*USB2.0 Type-C | |||
| Key | Function | reset | ||
| Appearance | ||||
| Body Material | ABS | |||
| Color | Black | |||
| Size | 110.5x38x18.5(mm) | |||
| Weight | 0.1Kg | |||
| Cerifications(For Unit) | ||||
| Standard | ||||
| Others | Optional | |||
| Package contents | Shipping Info | |||
| User manual | *1 | Gift Box Dimension(mm) | 200X117X42mm | |
| Gift Box | *1 | Carton Size(mm) | 438x480x258mm | |
| GamePad | *1 | Qty Per Carton(pcs) | 40pcs | |
| HDMI external cable | *1 | Gift Box.G.W(gs) | ||
| Power adapter | *1 | Export carton (G.W.)(kgs) | ||
Amlogic S905X5M X96 NEO TV Stick Manufacturer
The X96 NEO TV Stick is engineered and manufactured by X96 Tech, a specialist with 14 years of proven expertise in developing Android and Linux TV solutions. This deep industry experience translates directly into the reliable performance and sophisticated design of the X96 NEO TV Stick you enjoy today.
Our Full-Spectrum Customization Capabilities
Beyond our standard products, we excel as an OEM/ODM partner, offering comprehensive customization services to bring your unique vision to life:
1. Housing & Branding
We apply premium customization techniques to make your product distinctive:
- Laser engraving for permanent logo marking
- Silk screen printing for vibrant branding
- Bump/Highlight effects for tactile premium feel
- Custom mold material selection
2. Software Personalization
Transform the user experience through deep software customization:
- Pre-install your APKs and applications
- Custom boot animation and UI design
- System-level function customization
- OTA firmware upgrade support
- Language and time zone presets
3. Hardware Configuration
Tailor performance to your exact requirements:
- Flexible PCBA and chip solutions
- Custom RAM/ROM configurations
- Specialized Wi-Fi/BT modules
- Digital display solutions
- Connector and port options
4. Packaging & Documentation
Create memorable unboxing experiences:
- Hot stamping and UV processes
- Custom packaging structural design
- Multi-language manual customization
- Premium finishing techniques
5. Remote Control Customization
Extend your branding to the user's hand:
- Custom logo printing
- Special function buttons
- Infrared control customization
- Ergonomic design options
Why Partner With X96 TV Stick
- 14 years of technical expertise in TV box manufacturing
- End-to-end customization from hardware to packaging
- Proven track record with global clients
- Competitive pricing with premium quality
- Reliable after-sales support and OTA management
Discover how our manufacturing expertise can bring your TV box concept to market success. Visit us at https://x96mini.com/ to start your customization journey.
🎉🎉X96 Tech - Engineering Excellence in Every Device
