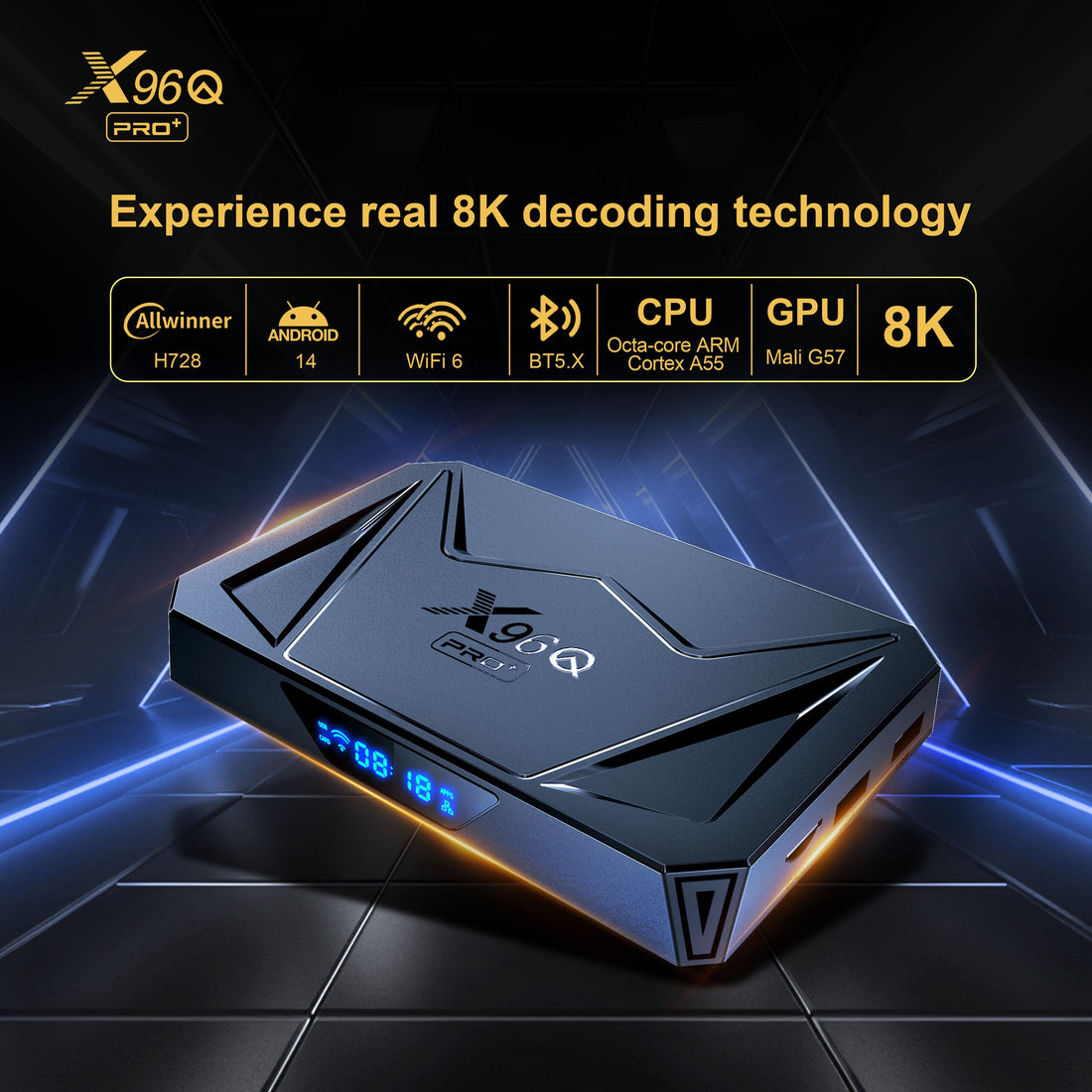

Allwinner H728 TV Box Octa-core ARM Cortex A55 Android X96Q Pro+ Set Top Box
In the ever-evolving world of home entertainment, the X96Q Pro+ TV Box stands out as a remarkable option for those seeking a high-performance Android TV box. Powered by the Allwinner H728 chipset, this octa-core ARM Cortex A55 device delivers impressive processing capabilities, ensuring smooth streaming and seamless multitasking. Whether you're binge-watching your favorite shows, playing games, or exploring apps, the X96Q Pro+ offers a user-friendly interface and a rich array of features designed to enhance your viewing experience. In this blog post, we will delve into the specifications, functionalities, and benefits of the X96Q Pro+, showcasing why it is an excellent choice for anyone looking to elevate their entertainment setup with an Allwinner H728 TV Box.
CPU Allwinner H728 TV Box
| Basic parameters | ||||
| CPU | Chipset | Allwinner H728 | ||
| Architecture | Octa-core ARM Cortex A55 | |||
| GPU | Chipset | Mali G57-MC1 | ||
| RAM | Capacity | 4GB (2GB Optional) | ||
| ROM | Capacity | 32GB (16/64GB Optional) | ||
| External storage | USB Storage Devices | Supported | ||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Multimedia | Video | Video Decoder: | ||
| H265 Main10@L5. 1 decoder up to 4K@60fps or 8K@24fps | ||||
| VP9 decoder up to 4K @ 60fps | ||||
| H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps | ||||
| Multi-format 1080p@60fps video playback, including VP8, MPEG1/2 SP/MP, MPEG4SP/ASP, AVS+/AVS JIZHUN | ||||
| Video encoder: | ||||
| H.264 encoder , up to 4K @ 25fps MJPEG encoder , up to 4K @ 15fps JPEG encoder , up to 8K x 8K resolution |
||||
| Audio | MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Option:IEEE802. a/b/g/n/ac IEEE802. a/b/g/n/ac/ax |
||
| Frequency | 2.4GHZ ~ 5.8GHZ | |||
| Antenna Type | Inside antennas | |||
| Bluetooth | Bluetooth | BT5.0+ | ||
| Interface | ||||
| Charge | DC connector | DC 5V- 3A | ||
| Video output | HDMI | 1* 4K 2K Output, HDMI 2.0a | ||
| AUDIO | AUDIO OUT | |||
| OPTCAL | / | 1 * SPDIF | ||
| Ethernet | Ethernet | 1000M | ||
| TF Card | External memory | 1* TF Card | ||
| USB port | USB Host | 2* USB 2.0+1*USB3.0 | ||
| POWER | KEY | Power off&Power on | ||
| Update | KEY | Update key | ||
| Others | RTC | Optional | ||
Allwinner H728 TV Box Key Features
1. Allwinner H728 Octa-Core Processor
ARM Cortex-A55 Architecture: Delivers 20% faster CPU performance over previous A53 designs, ideal for multitasking and AI-driven apps.
Mali-G57 MC1 GPU: Supports Vulkan 1.1 and OpenGL ES 3.2 for smooth 8K video decoding and mid-tier mobile gaming (e.g., Genshin Impact at medium settings).
2. Android 14 Advantage
Privacy Sandbox: Enhanced app permission controls and background process limits.
Material You Customization: Themed UI adapts to wallpapers for a personalized experience.
Google TV Integration: Unified content discovery across Netflix, Disney+, and live TV.
3. Wi-Fi 6 & Connectivity
AX1800 Dual-Band: 574 Mbps (2.4GHz) + 1201 Mbps (5GHz) ensures lag-free 8K streaming.
Bluetooth 5.2: Low-energy support for wireless headphones, gamepads, and smart home devices.
4. 8K Ready, Storage Flexible
HDMI 2.1: 48 Gbps bandwidth for 8K@60Hz or 4K@120Hz output (HDR10+/HLG).
Expandable Storage: 32GB/64GB eMMC + microSD slot (up to 1TB) for app/game libraries.
Conclusion
The Allwinner H728 TV Box X96Q Pro+ is a cutting-edge Android TV box that excels in performance thanks to its powerful Allwinner H728 chipset. This octa-core ARM Cortex A55 processor delivers exceptional speed and efficiency, enabling seamless streaming, gaming, and multitasking capabilities. With support for 8K resolution, users can enjoy stunning visuals that elevate their viewing experience to new heights. The combination of advanced processing power and high-resolution output makes the X96Q Pro+ a standout choice for those seeking a premium entertainment solution. Whether you're watching movies, playing games, or browsing the internet, the robust chipset ensures that every task is handled with ease, providing an unparalleled user experience.
