Amlogic S905Y5 TV Box Quad Core 4K Android Set Top Box——X96 NEX
Amlogic S905Y5 Quad Core Android TV Box
Powered by the quad-core Amlogic S905Y5 processor, this TV box delivers a powerful 4K entertainment experience. It ensures seamless streaming with advanced AV1 decoding and fast Wi-Fi 6 connectivity. Running the latest Android system, it provides smooth performance and instant access to a vast library of apps and content.
Amlogic S905Y5 Quad Core Android TV Box Spec
| Basic parameters | ||||
| CPU | Chipset | S905Y5 | ||
| Architecture | Quad Core ARM Cortex A55 | |||
| GPU | Chipset | ARM G31 MP2 | ||
| Architecture | OpenGL ES 1.1, 2.0, 3.2, Vulkan 1.2 and OpenCL 2.0 support | |||
| RAM | Capacity | Option：2/4GB | ||
| ROM | Capacity | Option：16/32GB | ||
| Software | ||||
| Operating system | OS Version | Android 14 | ||
| Language | Multi-Language | |||
| Video/Picture Decoding | AV1 MP-10@L5.1 up to 4Kx2K@60fps | |||
| VP9 Profile-2 up to 4Kx2K@60fps | ||||
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | ||||
| H.264 AVC HP@L5.1 up to 4Kx2K@30fps | ||||
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | ||||
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | ||||
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | ||||
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | ||||
| Multiple language and multiple format sub-title video support | ||||
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | ||||
| Supports JPEG thumbnail, scaling, rotation and transition effects | ||||
| Image Engine | Supports HDR10+, HDR10, HLG HDR processing | |||
| Audio | Supports MP3, AAC, WMA, FLAC, Ogg. | |||
| Image | HD JPEG、BMP、GIF、PNG、TIF | |||
| Network service | ||||
| Wi-Fi | Type | Support IEEE 802.11 b / g / n /ac /ax（WIFI 6） | ||
| Frequency | Support 2.4G and 5G | |||
| Bluetooth | Bluetooth | Support BT5.X | ||
| Interface | ||||
| Micro SD | External memory | Support | ||
| Charge | Charging Port | 5V/2A | ||
| Video output | HDMI OUT | 4K@60 Hz | ||
| Audio output | OPTICAL PORT | Support | ||
| Audio Port(3.5mm) | Support | |||
| Key | Key Function | Update | ||
| Ethernet | Ethernet | 100Mbps | ||
| IR Reciver | On board | Remote Reciver Connect | ||
| USB port | Data | 2*USB2.0 Type-A | ||
| USB host | 1*USB2.0 Type-A | |||
Advantages of the Amlogic S905Y5 TV Box
Enhanced Performance & Efficiency
The chip allows the quad-core Cortex-A55 CPU to deliver a solid balance of responsive performance and power efficiency. This results in smoother app navigation and a more stable system that generates less heat.
Future-Ready 4K Media Playback
It offers comprehensive support for next-generation video codecs, including AV1, VP9, and H.265/HEVC, all decoding at 4K@60fps. This ensures compatibility with major streaming platforms like YouTube and Netflix for the highest quality video streaming available.
Modern Connectivity Standards
The platform integrates advanced wireless technologies, including Wi-Fi 6 for faster and more reliable network connections and Bluetooth 5.X for connecting a wider range of peripherals like game controllers and headphones with greater stability.
Latest Software Experience
Certified for Android 14, it provides users with a current, secure, and feature-rich smart TV experience. This guarantees access to the latest apps and games from the Google Play Store, along with ongoing software support.

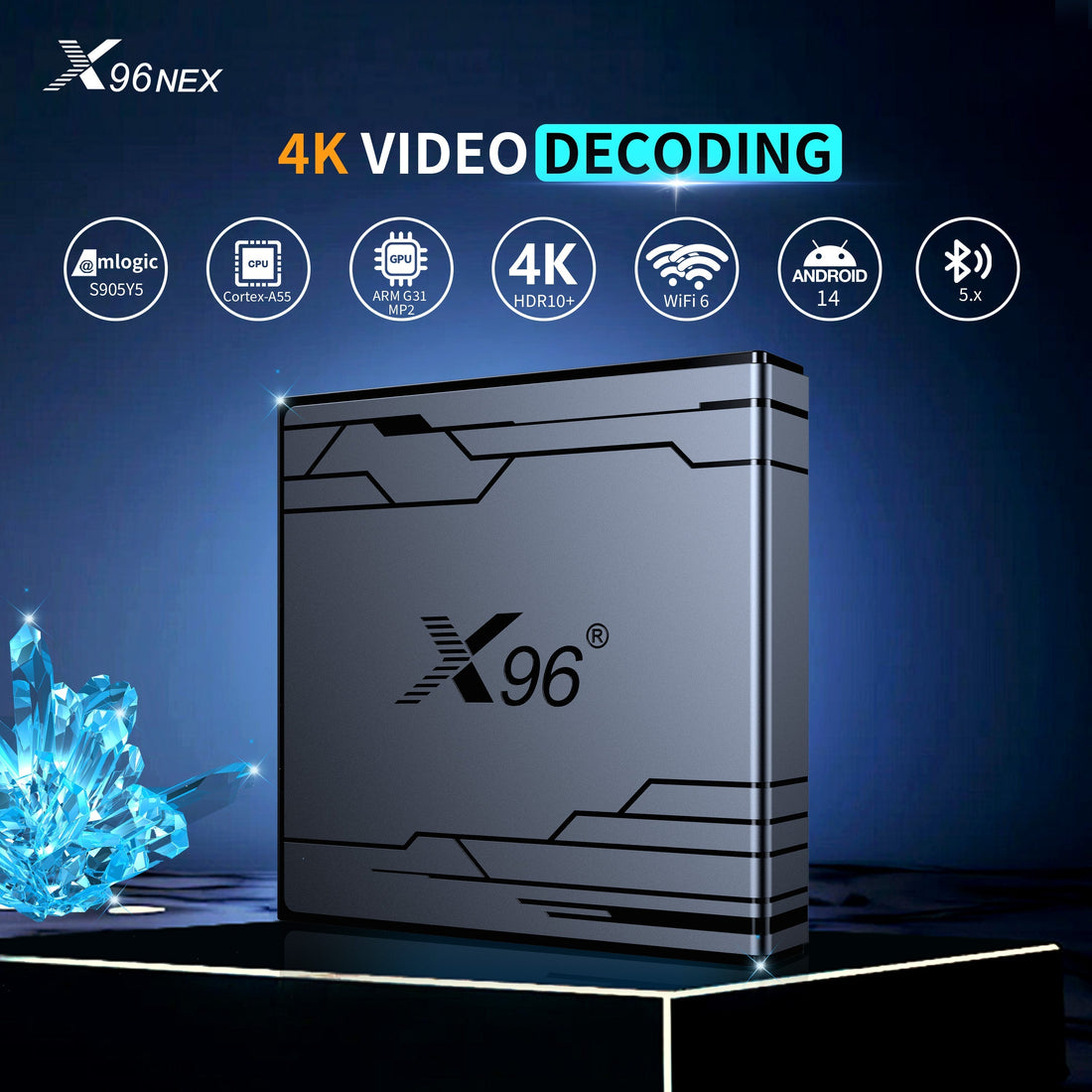

Amlogic S905Y5 TV Box——X96 NEX
1. Premium Performance & Modern Entertainment
Experience a new standard in home entertainment with the X96 TV Box, powered by the advanced Amlogic S905Y5 system-on-chip. Its quad-core ARM Cortex-A55 processor, combined with a generous 4GB of RAM and 32GB of storage, ensures fast and responsive performance for all your apps and games. Enjoy stunning, buffer-free 4K streaming with advanced AV1 codec support, all running on the latest Android 14 operating system for a secure and up-to-date user experience.
2. Advanced Connectivity for a Seamless Experience
Stay connected with cutting-edge wireless technology. Equipped with Wi-Fi 6 and Bluetooth 5.x, this device delivers a faster, more stable internet connection for smooth 4K video playback and easy pairing with speakers, gamepads, and other accessories. The built-in Casting and Miracast support allows you to effortlessly wirelessly display content from your smartphone, tablet, or laptop directly onto your big screen.
3. Backed by Professional Manufacturer Expertise
This high-quality TV Box is developed by Shenzhen Amedia Technology Co., Ltd., the official source behind the X96 brand. As a professional developer and manufacturer specializing in Android/Linux TV Boxes and digital signage players, Amedia Technology guarantees a reliable, well-engineered product. For more information on their innovative solutions, visit their official website at：https://x96mini.com/
If you are interested in this AMlogic s905Y5 X96 NEX TV box, welcome to its source manufacturer for more information：AMlogic s905Y5 X96 NEX TV box
