Digital signage - Amlogic T972
Digital signage - Amlogic T972
Regular price
$99.00 USD
Regular price
Sale price
$99.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

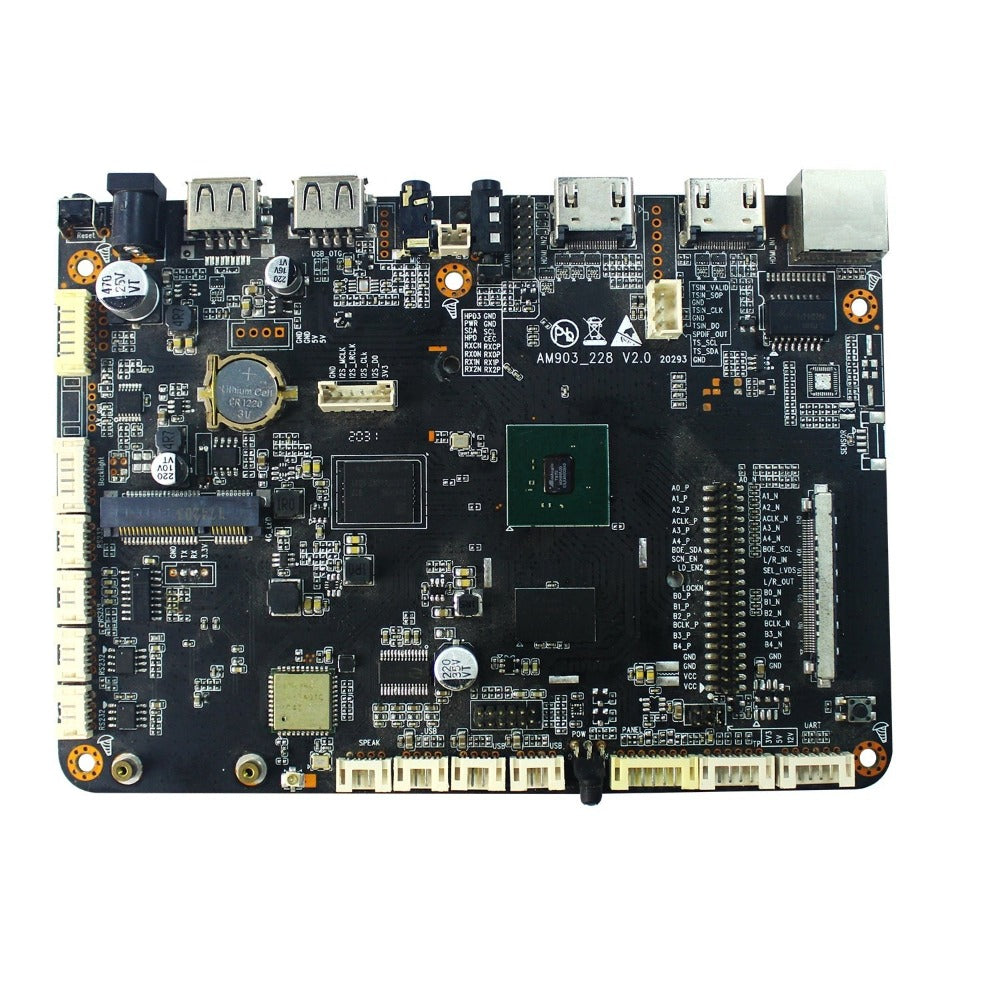

All in one Android 9.0 Controller Board with eDP output Amlogic T972 CPU.
Digital Signage Player with Amlogic T972 is a high-performance digital signage solution featuring the Amlogic T972 processor. This solution supports high-definition video playback and crisp image display, delivering clear and detailed content. With stable and reliable performance, it is suitable for various applications including commercial advertising, public information display, and corporate promotion.
| Specifications | |
| Model No. | Amlogic T972 |
| CPU | Amlogic T972(T962X2) Quad Core ARM Cortex A55 1.98GHZ |
| GPU | Penta Core ARM Mail-450 |
| RAM | DDR4 2GB/4GB (option) |
| ROM | 16GB eMMC (can be expanded to 128GB via SD/USB) |
| OS | Android 9.0 |
| Video&Audio CODEC | |
| Video/Picture CODEC | −Amlogic Video Engine (AVE-10) with dedicated hardware decoders up to 4Kx2K@75fps |
| −Video/Picture Decoding | |
| −VP9 Profile 2-10 up to 8Kx4K@24fps or 4Kx2K@60fps | |
| −H.265 HEVC MP-10@L5.1 up to 8Kx4K@24fps or 4Kx2K@60fps | |
| −AVS2-P2 Profile up to 4Kx2K@60fps | |
| −H.264 AVC HP@L5.1 up to 4Kx2K@30fps | |
| −H.264 MVC up to 1080P@60fps | |
| −MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | |
| −WMV/VC-1 SP/MP/AP up to 1080P@60fps | |
| −AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | |
| −MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | |
| −MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | |
| −RealVideo 8/9/10 up to 1080P@60fps | |
| −Multiple language and multiple format sub-title video support | |
| −MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | |
| −Supports JPEG thumbnail, scaling, rotation and transition effects | |
| −Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | |
| Video/Picture Encoding | −VP9 Profile 2-10 up to 8Kx4K@24fps or 4Kx2K@60fps |
| −H.265 HEVC MP-10@L5.1 up to 8Kx4K@24fps or 4Kx2K@60fps | |
| −AVS2-P2 Profile up to 4Kx2K@60fps | |
| −H.264 AVC HP@L5.1 up to 4Kx2K@30fps | |
| −H.264 MVC up to 1080P@60fps | |
| −MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | |
| −WMV/VC-1 SP/MP/AP up to 1080P@60fps | |
| −AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | |
| −MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | |
| −MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | |
| −RealVideo 8/9/10 up to 1080P@60fps | |
| −Multiple language and multiple format sub-title video support | |
| −MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | |
| −Supports JPEG thumbnail, scaling, rotation and transition effects | |
| −Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | |
| Audio CODEC and Input/Output | Supports MP3, AAC, WMA, RM, FLAC, Ogg, Dolby DTS Audio Optional and programmable with 7.1/5.1 down-mixing |
| Low-power VAD and internal AEC loopback path | |
| 3 built-in TDM/PCM/I2S ports with TDM/PCM mode up to 384kHz x32bits x 8ch or 96kHzx 32bits x 32ch and I2S mode up to 384kHz x 32bits x 8ch | |
| Digital microphone PDM voice input with programmable CIC, LPF & HPF, support up to 8 DMICs | |
| Built-in serial digital audio SPDIF/IEC958 output | |
| 2 L/R analog input channels and 2 L/R output channels | |
| Supports concurrent dual audio stereo channel output with combination of I2S+PCM | |
| Supports Audio EQ/DRC for audio speaker | |
| Decoder Format | HD MPEG1/2/4, H.265/HEVC, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6, RealVideo8/9/10 |
| Media Format | Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
| Music Format | MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF |

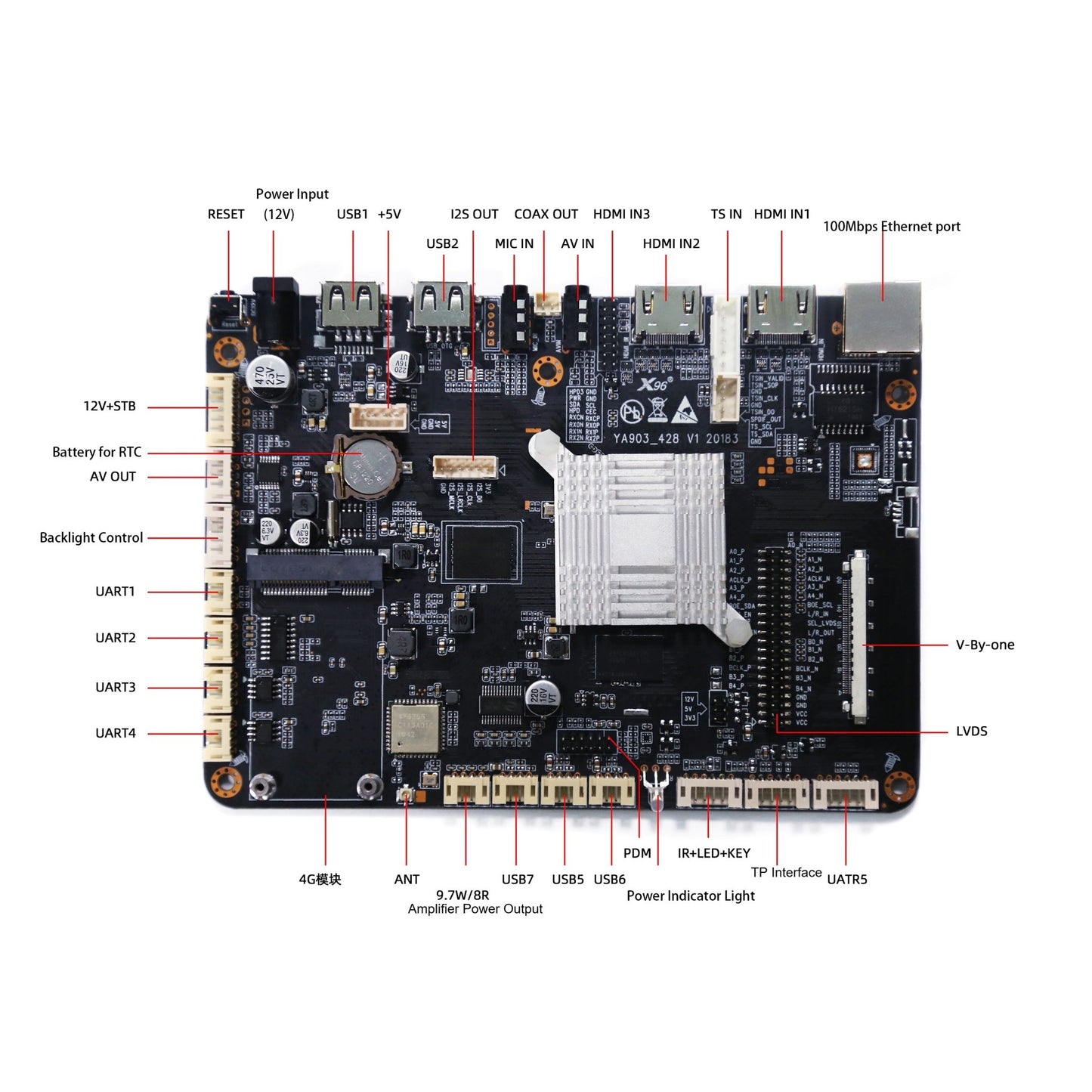

| Port | |
| Audio Input | 1* 3.5MM headphone jack |
| Video Output | 1*LVDS 40pin 2.0mm double-row pin, support 8bit/10bit screen |
| 1*V-By-one, for optional choice | |
| Video Input | HDMI*3 |
| Audio Output | 4pin 2.5mm 10W8Ω@2 |
| Network port | *1 10M/100M RJ45 |
| 2.4G WIFI+BT (Dual band 2.4G/5G WiFi option) | |
| PCIE slot(4)x1 | |
| USB2.0 port | USB OTG*1(can be HOST) |
| USB HOST*4 | |
| Backlight Interface | *2, 6pin 2.0mm |
| Infrared Interface | *1, 7pin 2.0mm, with LED indicator light (green&red) |
| Expansion ports | Serial ports*4 |
| TF card slot | *1 |
| SIM card slot | *1 |
| Power | |
| Power Supply | STB, 5VSB, 5V, 12V, 12pin 2.00mm |
| 12V / 4pin 2.54mm, 12V / 2.5DC plug | |
