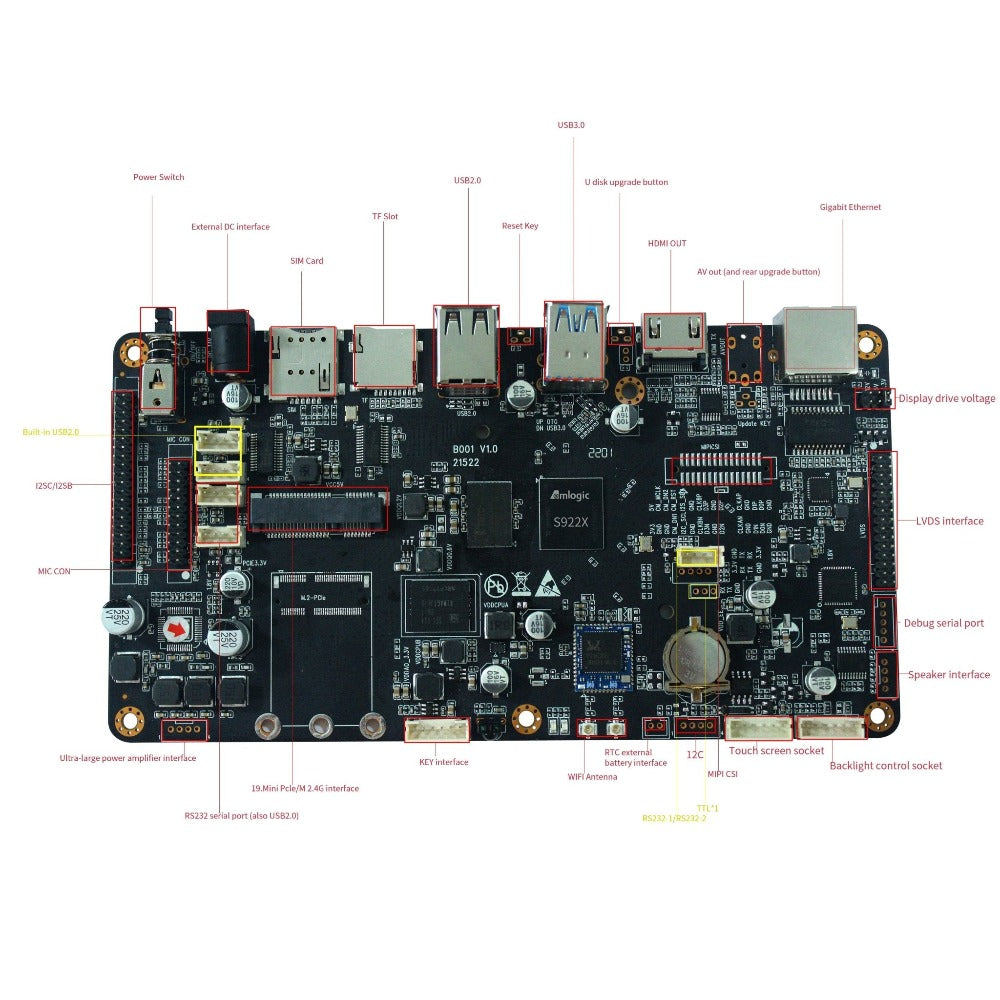

Digital signage - Amlogic S922X
Digital signage - Amlogic S922X
Digital Signage Solutions Widely used in finance, advertising, security, transportation, public transportation, etc
| Specifications | |
| Model No. | Amlogic S922X Digital Signage Solutions |
| CPU | Amlogic S922X 64-bit quad core ARM® Cortex™ A73 CPU and dual core ARM® Cortex™ A53 CPU |
| GPU | ARM MaliTM-G52 MP4 GPU processor |
| ROM | 2GB/4GB LPDDR4 |
| Internal Storage | 16GB/64GB eMMC |
| OS | Android 9.0 |
| Video&Audio CODEC | |
| Video/Picture CODEC | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders |
| HW UHD 4K H.265 75fps 10-bit video decoder & low latency 1080p H.265/H.264 60fps encoder | |
| Support multi-video decoder up to 4Kx2K@60fps+1x1080P@60fps | |
| Supports multiple “secured” video decoding sessions and simultaneous decoding and encoding | |
| Video/Picture Decoding | |
| VP9 Profile-2 up to 4Kx2K@60fps | |
| H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | |
| AVS2-P2 Profile up to 4Kx2K@60fps | |
| H.264 AVC HP@L5.1 up to 4Kx2K@30fps | |
| H.264 MVC up to 1080P@60fps | |
| MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496) | |
| WMV/VC-1 SP/MP/AP up to 1080P@60fps | |
| AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps | |
| MPEG-2 MP/HL up to 1080P@60fps (ISO-13818) | |
| MPEG-1 MP/HL up to 1080P@60fps (ISO-11172) | |
| RealVideo 8/9/10 up to 1080P@60fps | |
| H.265/H.264 video encoding up to 1080P@60fps with low latency | |
| Multiple language and multiple format sub-title video support | |
| MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918) | |
| Supports JPEG thumbnail, scaling, rotation and transition effects | |
| Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file formats | |
| Supports Dolby VisionOptional, HDR10, HDR10+, HLG and PRIME HDR processing | |
| Video/Picture Encoding | Independent JPEG and H.265/H.264 encoder with configurable performance/bit-rate |
| JPEG image encoding H.265/H.264 video encoding up to 1080P@60fps with low latency | |
| Video Output | Built-in HDMI 2.1 transmitter including both controller and PHY with CEC, Dynamic HDR and HDCP 2.2, |
| 4Kx2K@60 max resolution output CVBS 480i/576i standard definition output | |
| Supports all standard SD/HD/FHD video output formats: 480i/p, 576i/p, 720p, 1080i/p and 4Kx2K 4-lane MIPI DSI interface, | |
| resolution up to 1920*1080 with rotation and panel calibration | |
| Supports MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing | |
| Built-in serial digital audio SPDIF/IEC958 input/output and PCM input/output 3 built-in TDM/PCM/I2S ports with | |
| TDM/PCM mode up to 84kHz x32bits x 8ch or 96kHz x 32bits x 32ch and I2S mode up to 384kHz x 32bitsx8ch | |
| Digital microphone PDM voice input with programmable CIC, LPF & HPF, support up to 8 DMICs Built-in stereo audio DAC | |
| Supports concurrent dual audio stereo channel output with combination of analog+PCM or I2S+PCM | |
| Decoder Format | HD MPEG1/2/4, H.265/HEVC, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6, RealVideo8/9/10 |
| Media Format | Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
| Music Format | MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF |
| Port | |
| USB host | USB2.0, Max480Mbps/USB3.0, Max5.1Gbps |
| SIM | MICRO SIM |
| HDMI | HDMI 2.2/1ch Lvds/1ch EDP |
| LAN | RJ45 wire Ethernet connection 100/1000M Ethernet support |
| WiFi/ Bluetooth | AP6398S(Wi-Fi+BT) 2.4G+5.8G |
| 4G | PCIE Port |
| TF | microSD(Max 128G) |
| HDD | Support SATA Max2TB(Not included) |
| Power | |
| Power Supply | 12V DC/3AΦ5.5*Φ2.5mm |
