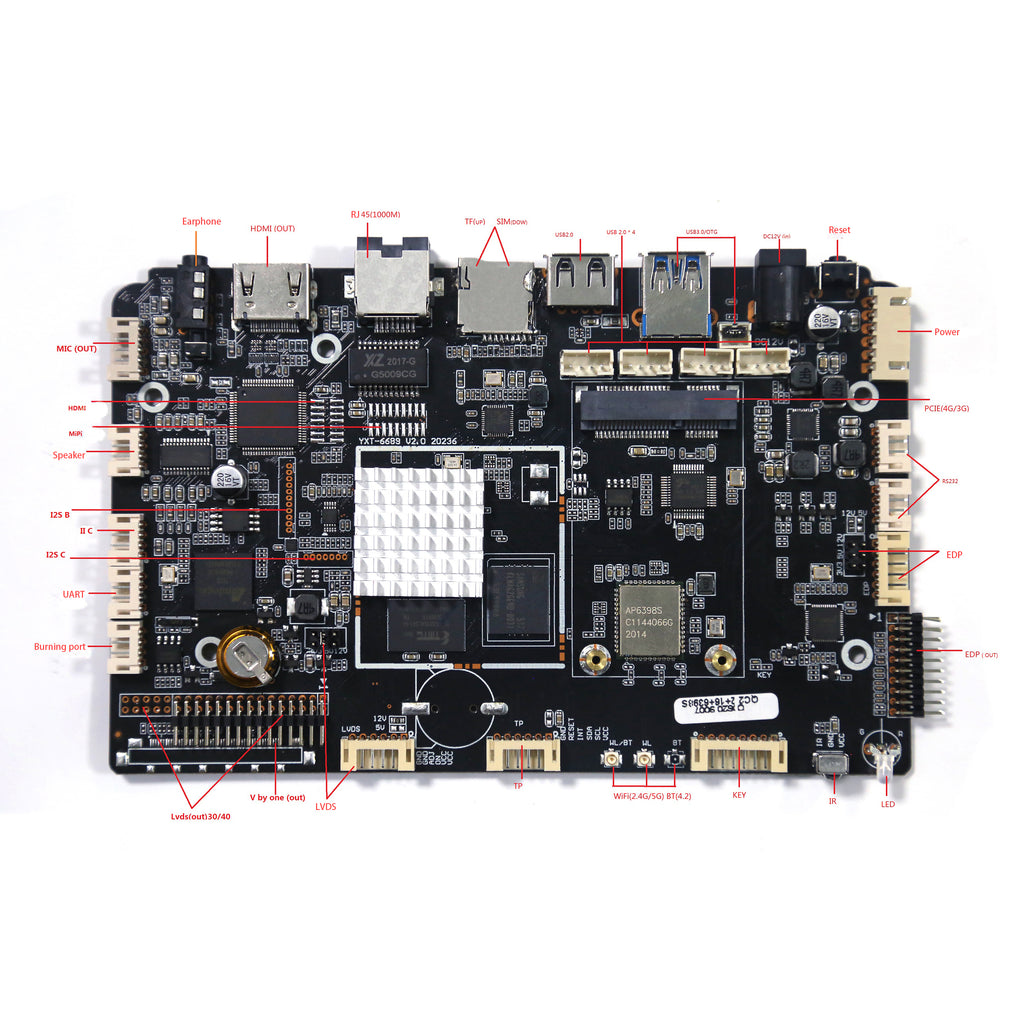

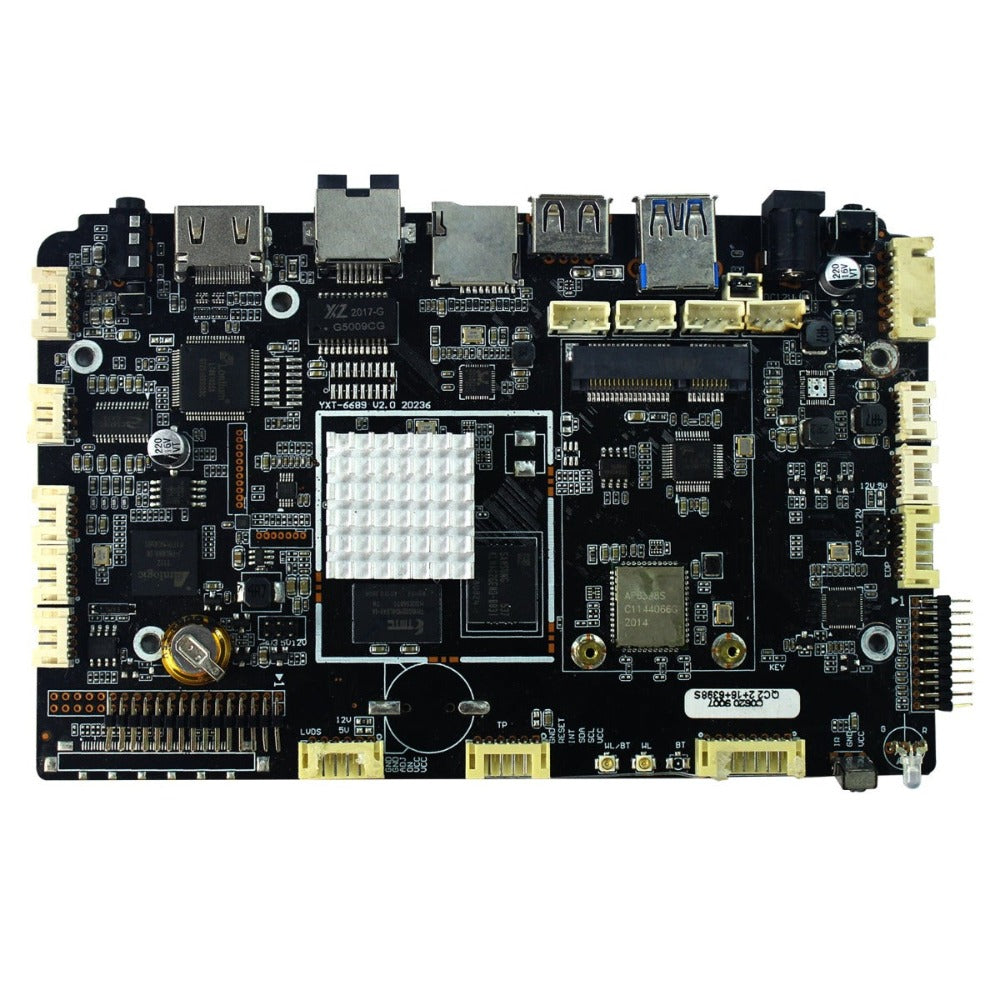

Amlogic S905D3 Digital Signage Board Comes with HDMI, LVDS, V-by-One
| Specifications | |
| Model No. | Amlogic S905D3 |
| CPU | Amlogic S905D3 Quad Core 64 Bit ARM Cortex-A55 |
| GPU | ARM G31 MP2 |
| RAM | 2GB/LPDDR3, can be expanded to 4GB/LPDDR3 |
| Internal Storage | 16GB EMMC; 32GB/64GB optional |
| OS | Android 9.0 |
| Video&Audio CODEC | |
| Video and Picture Decoding | Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders |
| Support multi-video decoder up to 4x1080P@60fps | |
| Supports multiple “secured”video decoding sessions and simultaneous decoding and encoding | |
| Video/Picture Decoding | |
| − VP9 Profile-2 up to 4Kx2K@60fps | |
| − H.265 HEVC MP-10@L5.1 up to 4Kx2K@60fps | |
| − RealVideo8/9/10upto1080P@60fps | |
| − Multiple language and multiple format sub-title video support | |
| − MJPEG and JPEG unlimited pixel resolution decoding(ISO/IEC-10918) | |
| − Supports JPEG thumbnail, scaling, rotation and transition effects | |
| − Supports*.mkv,*.wmv,*.mpg,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rmand*.jpgfile formats | |
| Video coding | −Independent JPEG and H.264 encoder with configur able performance/bit-rate |
| −JPEG image encoding | |
| −H.265/H.264 video encoding up to 1080P@60fps with low latency | |
| Decoder Format | HD MPEG1/2/4, H.265/HEVC, HD AVC/VC-1, RM/RMVB, Xvid/DivX3/4/5/6, RealVideo8/9/10 |
| Media Format | Avi/Rm/Rmvb/Ts/Vob/Mkv/Mov/ISO/wmv/asf/flv/dat/mpg/mpeg |
| Music Format | MP3/WMA/AAC/WAV/OGG/DDP/TrueHD/HD/FLAC/APE |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF |
| Port | |
| USB host | USB2.0, Max480Mbps/USB3.0, Max5.1Gbps |
| SIM | MICRO SIM |
| Video output | HDMI 2.1/1ch Lvds/1ch EDP (schedule V by one interface) |
| RJ45 | RJ45 wire Ethernet connection 100/1000M Ethernet support |
| Wi-Fi/ Bluetooth | AP6398S(Wi-Fi+BT)2.4G+5.8G Dual Frequency |
| 4G | PCIE Port |
| TF | Micro SD(Max 128G) |
| HDD | Support SATA Max2TB(Not included) |
| Power | |
| Power Supply | 12V DC/3AΦ5.5*Φ2.5mm |
