Amlogic S905X5 TV Box Android 14 4K Digital Signage Media Player

Specifications

• Product Model: A016
• Operation System: Android 14
• CPU: Amlogic S905X5 Quad Core ARMv9.0 Cortex-A510 CPU
• GPU: ARM Mali-G310 V5 GPU
• NPU: Neural Network Accelerator, 3.2–4 TOPS
• RAM: 4GB(Optional: 2GB / 8GB)
• Storage Capacity Flash: 64GB(Optional: 32GB / 64GB / 128GB)
• External Storage: USB Storage Devices / Micro SD Card Supported
• Video Decoder Supports: H.266 VVC, AV1, VP9, H.265, AVS2, AVS3, H.264, MPEG-4, WMV/VC-1, AVS+, MPEG-2, MPEG-1, MJPEG, JPEG
• Video Encoder Supports: JPEG, H.264, H.265 video encoding up to 4K@60fps
• Audio Supports: SPDIF, Audio CODEC, Serial Audio Interface
• Image Supports: HD JPEG, BMP, GIF, PNG, TIF
• WiFi: RTL8852BS, WiFi IEEE 802.11 b/g/n/ac/ax, 2.4GHz / 5GHz WiFi 6, 2T2R
• Bluetooth: BT 5.x
• Power Supply: DC IN 12V/2A
• Network: 2 × RJ45 1000M Ethernet(100M Optional)
• Body Material: Plastic + Metal
• Color: Black + Silver
• Dimensions: 160 × 100 × 31 mm

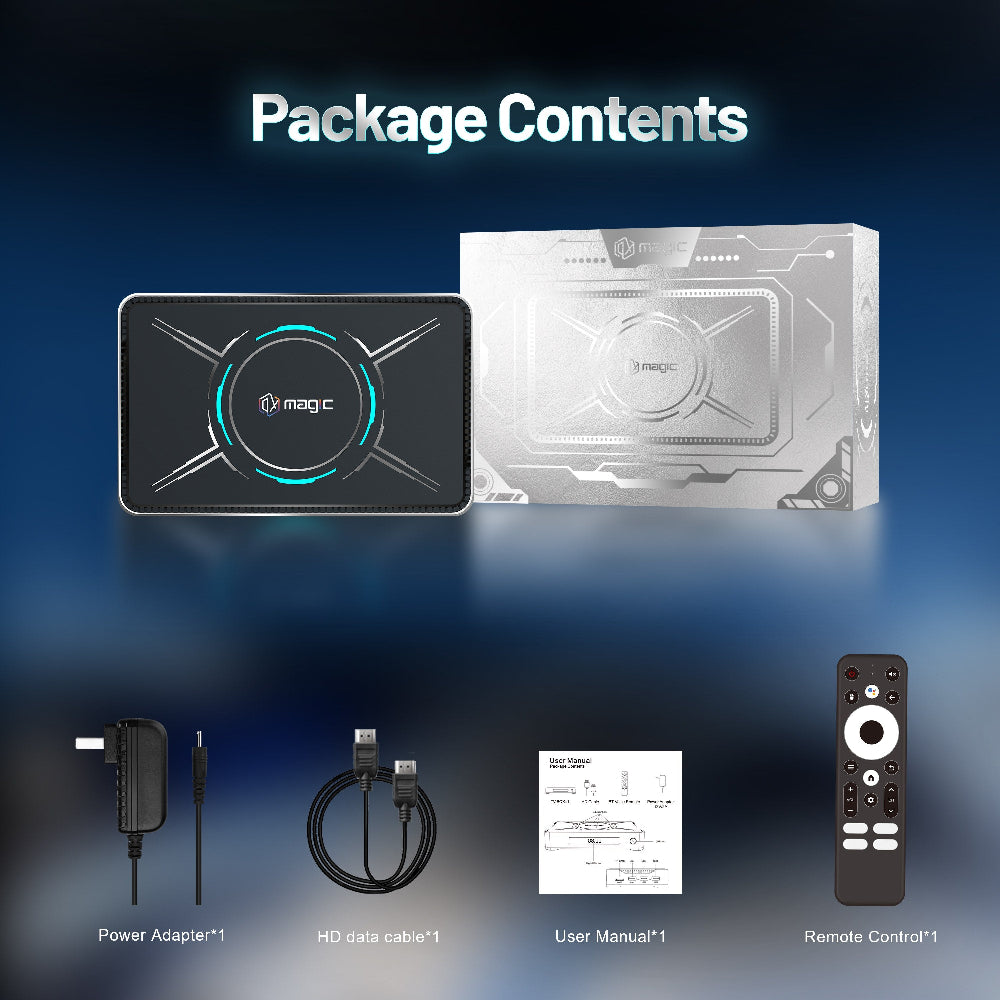

Package Contents

• 1 × A016 Box
• 1 × Remote Control
• 1 × Power Adapter
• 1 × HDMI Cable
• 1 × User Manual
• 1 × Gift Box

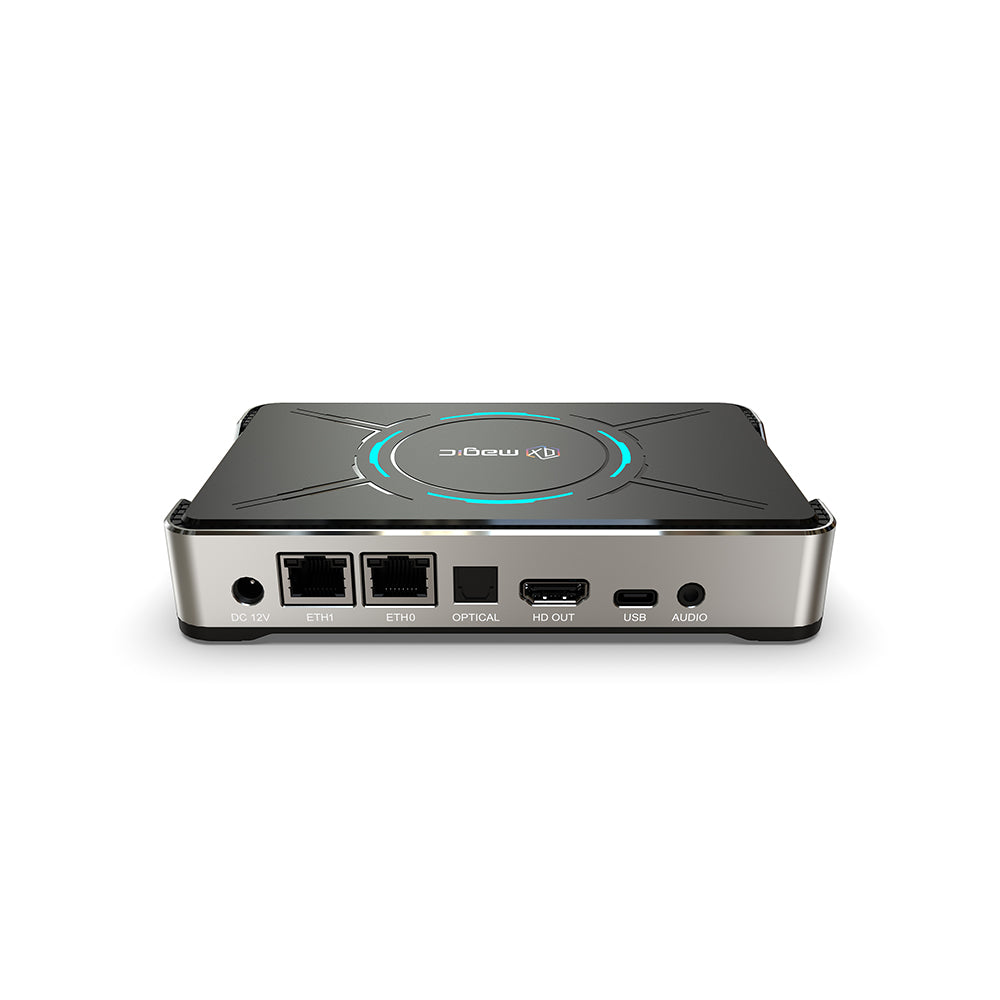

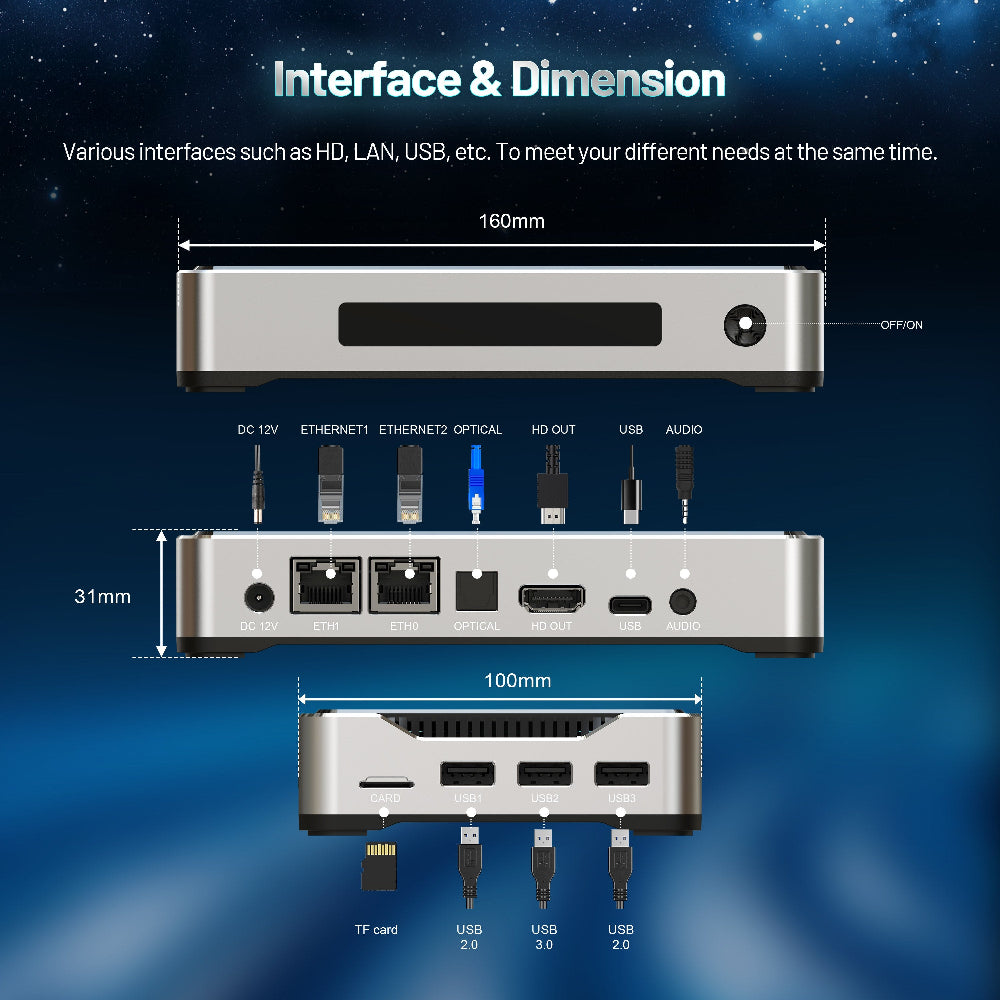

Interfaces

• HD Output: HDMI 1.4 / HDMI 2.1b, 4K×2K UHD Output
• USB Port: USB 3.0 × 1, USB 2.0 × 2, USB Type-C × 1
• Audio Output: Audio × 1
• Optical Output: SPDIF × 1

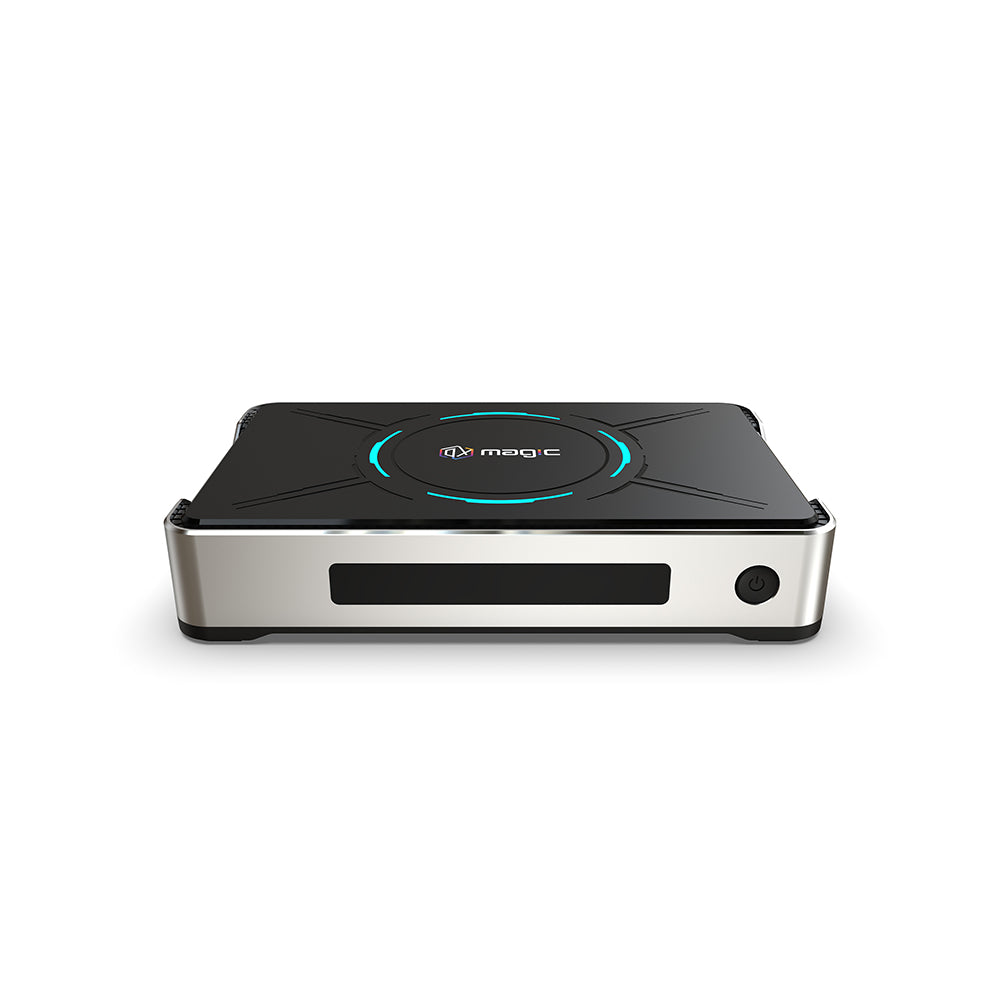

• Button: ON/OFF Button × 1
• IR Receiver: On-board Remote Receiver
• TF Card: 1 × Micro SD Card Slot
• Ethernet: 2 × 1000M Ethernet Ports

Shipping Information

• Gift Box Dimension: 186 × 134 × 83 mm
• Carton Size: 435 × 390 × 285 mm
• Quantity Per Carton: 20 pcs
• Gift Box Gross Weight: 0.71 kg
• Export Carton Gross Weight: 15 kg
